Tracked Hydracore 2000 Diamond Core Drill ID: 1268503


Tracked Hydracore 2000 Diamond Core Drill

  • Make: Hydracore
  • Model: 2000
  • Condition: Used, Reported in Good Condition
  • Mounted on Tracked Carrier
    • Marooka MTS 700
    • New Rubber Tracks
  • New Style Hydracore Head
  • Stringer has been Revamped
  • Engine Had Cylinder Replaced
    • Engine has been Maintained Regularly
  • Spare Deutz Engine
    • Spare Engine has been Maintained Regularly
  • Injectors have been Redone
  • Pumps have Been Rebuilt
  • Spare Hydraulic Pump

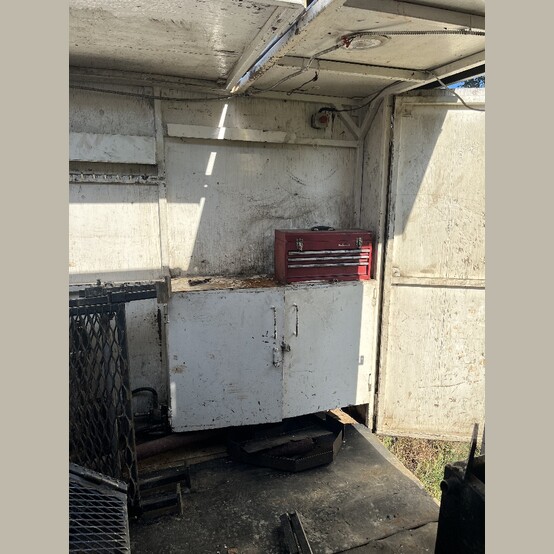

  • Fully Enclosed Shack with Pony Walls for Cold Climates
  • Hydraulic Leveling Jacks

  • General Model Specifications:

    • Depth Capacity:
      • B Size: 5,700 feet (1,750m)
      • N Size: 4,250 feet (1,300m)
      • H Size: 2,700 feet (825m)

    • Drill Head
      • H Size Hydraulic Chuck
      • Belt Drive with 2.77:1 Ratio
        • Torque
          • Maximum: 1,254 ft-lbs. @522 RPM
          • Minimum: 428 ft-lbs. @1,500 RPM
          • More Torque is Available in Reverse for Rod Breaking, (1,790 ft-lbs.) Reverse Pressure is set at 5,000 PSI While Max Pressure Forward is 3,500 PSI

    • Hydraulic Chuck (Hydracore Link Chuck)
      • Operation: Spring Closed, Hydraulic Opened
      • Axial Thrust: 30,000 lbs.
      • Capacity: B to H
      • No. of Jaws: 3
      • Maximum Rod Size: 3-1/2 inches

    • Foot Clamp
      • Operation: Accumulator Closed, Hydraulic Opened
      • Axial Thrust: 25,000 lbs.
      • Capacity: B to P
      • No. of Jaws: 2
      • Maximum Rod Size: 4-1/2 inches

    • Drill Slide and Feed Cylinder
      • Maximum Pull: 24,000 lbs.
      • Maximum Thrust: 16,000 lbs.
      • Stroke: 70 inches
      • Length: 122 inches

  • Location: Western Canada
