TKL Super Titan 150x200-560 Pump

• Make: Thompsons Kelly & Lewis
• Type: Super Titan
• Size: 150x200-560 (8in x 6in)
  • Suction: 200mm (8in)
  • Discharge: 150mm (6in)
  • Impeller: 560mm (22in)
• Flow Rate: Up to 1,750 GPM
• Head Pressure: Up to 360ft @800 GPM
• Style: Split Case Pump

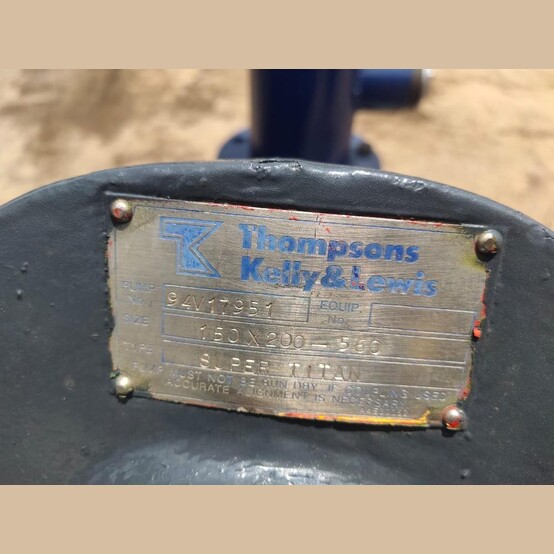

• Pump No: 94V17951
• Bearings: 560/561 Bearings
• Shaft: Horizontal Shaft
• Frame: 12
• Casing Pressure: 2.1 MPa
• Temperature Range: -10°C to 120°C
• Max Suction: 700 kPa


• Drive: Cummins Diesel
  • Hours: 7,220
