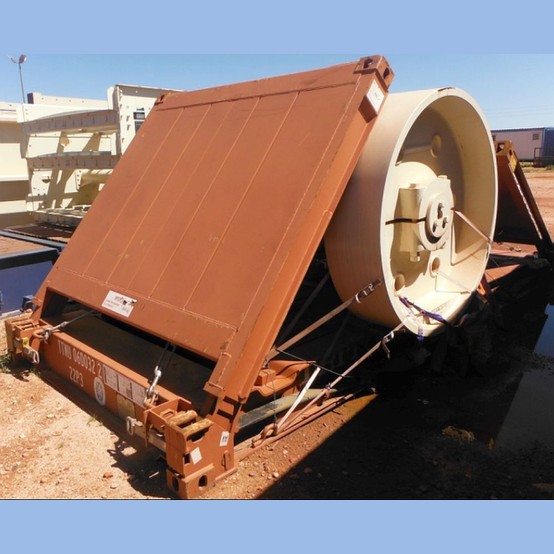

• Terex Crushing Plant.
    • New/unused.
    • Consists of:
      • MJ47 Jaw Module.
        • Module Structure:
          • Bolts together on-site. Quick set-up time with basic tools.
          • Robusy weather protected IP55 control panel.
            • With user friendly manual/automatic control.
          • Emergency stop stations.
          • Galvanized/painted steel structure.
          • Galvanized steel walkways, stairs and guard rails.
        • Jaw Crusher.
          • Terex Jaques ST47 jaw crusher.
            • 36 in. x 48 in. (91.4 cm x 121.9 cm).
            • V-belt drive, 200 hp (150 kW) motor with guard.
            • Robust one-piece jaw frame design.
            • Large diameter, forged main shaft.
            • Single, rocking-end toggle requires no lubrication.
        • Truck Dump Hopper.
          • Rock box design with 5/8 in. (15 mm) thick hopper
            • 3/4 in. (20 mm) liner along wear edge of hopper.
          • Hopper width: 16 ft. 7 in. (5.05 m).
          • Live capacity of hopper: 69 tons (63 tonnes).
        • Vibrating Grizzly Feeder.
          • Terex Simplicity 51 in x 24 ft. (1.3 m x 7.3 m) OFC120A vibrating double deck grizzly feeder.
          • Independently mounted pivot-type motor base.
          • V-belt drive, 50 hp (37 kW) motor and guarding.
          • 1/2 in. (12.7 mm) wear resistant side and floor liner plates.
          • Pan feeder length: 14 ft. (4.3 m).
          • Feeder width: 51 in. (1.3 m).
          • Stepped grizzly length: 10 ft. (3.04 m).
            • (2) 5 ft. (1.5 m) sections with adjustable openings.
        • Plant Chute Work.
          • Grizzly fines/bypass 2-way chute discharges to product conveyors or to off-plant fines conveyor.
        • Discharge Conveyor.
          • 48 in. x 26 ft. (1.2 m x 8 m). conveyor with 3-ply belt.
          • 20 hp (15 kW) electric drive motor.
          • Impact bars at feed point.
          • High spec scraper at head drum.
          • Skirted full length.
      • MC450X Cone Module.
        • Module Structure.
          • Bolts together on-site, quick set-up time with basic tools.
          • Pre-wired 'plug-and-play' design.
            • Minimal on-site wiring.
          • Robust weather protected control panel with user friendly controls.
          • Galvanized steel structure including walkways, stairs, guard rails and skid mounting feet.
          • Flexible design permits 2 locations for discharge conveyor.
          • Crusher discharge chute with rubber dust sock.
          • CE compliant module structure and components.
          • Systematicaly packed in shipping contained for quick site set-up and easy transport.
        • Cone Crusher.
          • Terex Cedarapids MVP450X with patented Rollercone design for high efficiency.
          • Single drive 400 hp (300 kW) electric motor.
            • 50 Hz.
          • Adjustable motor mount slide-base tensioning system.
          • V-belt drive, drive guard, v-belts, motor sheave, hub and key.
          • Hydraulis skid with 10 hp (7.5 kW) provides hydraulic power for tramp and adjustment systems.
          • Separate lube skid with electric lube pump, filter and valves.
          • Counter-weight wear guard.
        • Electrical controls.
          • (4) emergency stop stations.
          • IP55 electrical panel for manual/automatic control of operation.
            • Includes cone hydraulic gap/wear/duimp control to set and monitor closed-side setting, calibration and manganese wear.
          • Motor starters to run off-module feeder, cone-feed conveyor and product discharge conveyor.
          • Automatic sequence start-up and shut-down.
          • Plant operation interlocks upstream and downstream.
          • Module run/fault indiciation.
          • Facility for remote operation.
          • Ammeter.
      • MHS8203 Horizontal Screen Module.
        • Module Structure.
          • Bolts together on-site, quick set-up time with basic tools.
          • Pre-wired 'plug-amd-play' design.
            • Minimal on-site wiring.
          • Robust weather protected control panel with user friendly controls.
          • Galvanized steel structure includings walkways, stairs and guard rails.
          • Extra heavy duty I-beam frame.
          • Rigid diagonal truss construction.
          • Integrated rolling chute mechanism and integrated trouser leg chutes.
          • CE compliant module structure and components.
          • Systematically packed in shipping containers for quick site set-up and easy transport.
        • Terex Cedarapids LJ-TSV Horizontal Screen.
          • 8 ft. x 20 ft. (2.44 m x 6.10 m) 3 deck LJ-TSV8203-38 horizontal screen with El-Jay oval stroke.
          • Three shaft vibrator mechanism with adjustable stroke angle, stroke length and speed.
          • 25% thicker 5/16 in. (8 mm) grade 50 high strength steel side plates.
          • Heavy duty fully braced single crown steel deck construction.
          • Exclusive patented and patent-pending features for durability and easy maintenance:
            • Low maintenance vibration damper system.
            • 'Flow-through' bearing lubrication.
            • Baffle splash lubrication system.
            • Double O-ring sealed for life vibrator construction.
          • Spherical washer design eliminates sidewall welds.
          • Huck-bolted screen box construction (no welds).
          • Extended life coil spring suspension.
          • Replaceable bolt-on spring guides.
          • Gland type non-wearing shaft seal.
          • Toll-less oil level sight glases.
        • Underscreen Conveyor.
          • 60 in. (1.52 m) fully skirted underscreen fines conveyor.
          • 20 hp (15 kW) standard drive electric motor and gearbox.
          • 3-ply belt with vulcanized splice and easy access belt take-ups.
          • High performance belt wiper.
          • CEMA C 20° troughing rolls.
        • Blending Chutes.
          • 4 section (25%) blending gate system for all decks.
            • Product combinations:
              • Bottom deck & fines.
              • Center & bottom decks.
              • Top & center decks.
          • Heavy duty AR 400 liners.
        • Power Panel.
          • Electric power panel for screen and on plant collection conveyor.
            • 50 Hz.
          • Additional motor starters for off-plant feed conveyor and four product conveyors.
    • Loaded in containers, ready to ship.



Please contact us for more information.
