Sturtevant SD-80 Air Classifier ID: 1091118

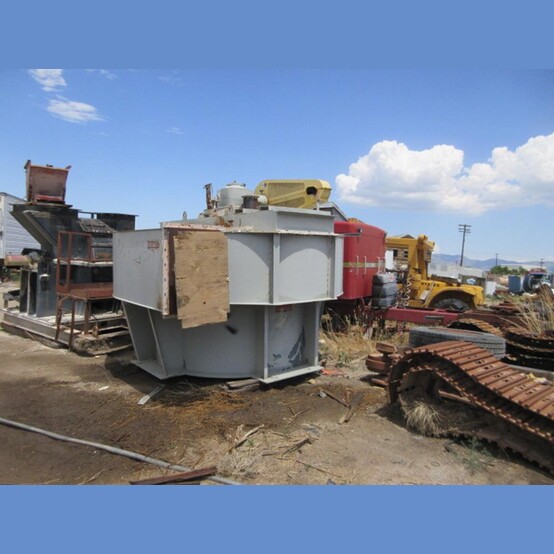

Sturtevant SD-80 Air Classifier

Description: The Side Draft™ (SD) Air Classifier represents a highly versatile, energy efficient system for the consistent separation of particles. The Sturtevant SD Classifier is designed to classify and separate a stream of particles into finer and coarser fractions. It is intended for classifying particles in the 100 to 400 mesh range. The SD Classifier can operate as a stand-alone unit, or as a component in a material processing system. The fine and coarse streams can both be collected for use, further processing, storage, or disposal. Mechanical separator/classifier. Centrifugal action separates particles from dust-laden air. Versatile, variable-speed control to change fineness online.

Make: Sturtevant

Model: SD-80

Condition: Good Used

Equipment Details:

              Control Type: Manual

              Motor: Min - 60HP
                         Max - 75HP

               Shipping Dimensions: 22'1" Tall x 13'6" Diameter

               Shipping Weight: 15,000 Lbs (6818 kg)

General Model Specifications:

Material: Body-Carbon Steel

             Liner- Ceramic Tiles

Feed Rate: Min: 75 Ton/Hr

                Max: 240 Ton/Hr

  • Drive:
    • HP: 60
    • RPM: 900
    • Phase: 3
    • Hz: 60
    • V: 460VAC
    • Frame: 405T
    • Gear Reducer: 590 RPM Output Approx.
    • Varispeed to adjust Particle Control
    • Comments: TEFC, Premium Efficiency, Inverter Duty

  • Miscellaneous
    • Airflow: 56,000 CFM
    • Static Pressure: 24.1 Inches Water
    • Weight: 15,000 lbs
    • Clearance Height: 9 Feet above Machine for Service
    • Clearance Width: 3 Feet on Each Side of Machine For Service

  • Location: South Mid-Western USA
