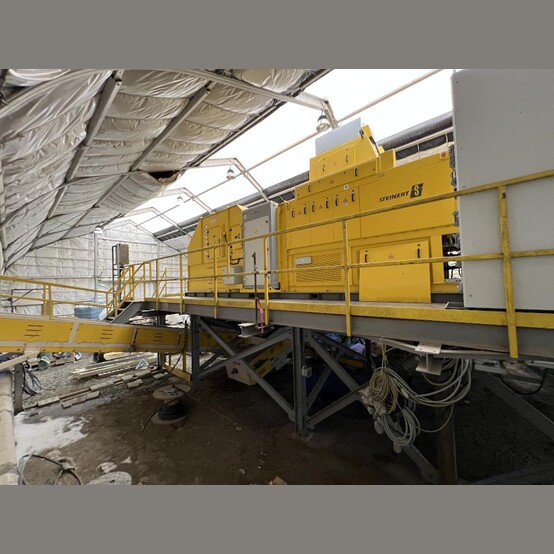

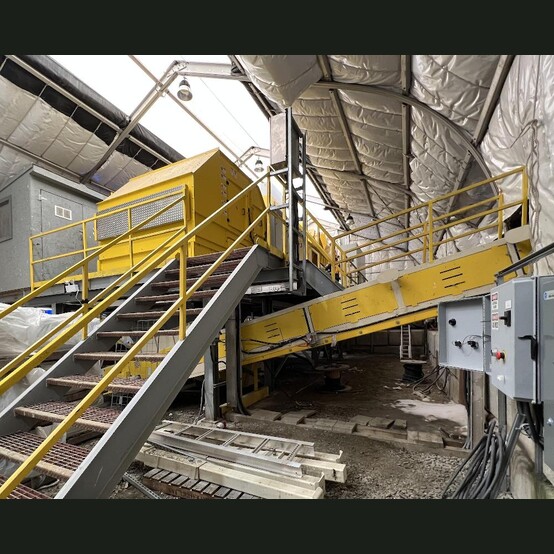

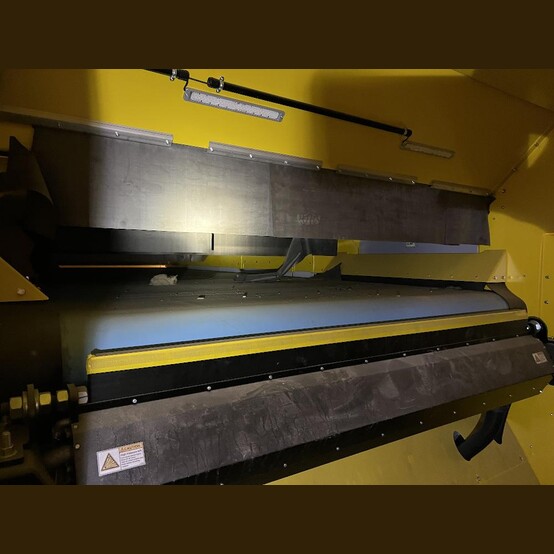

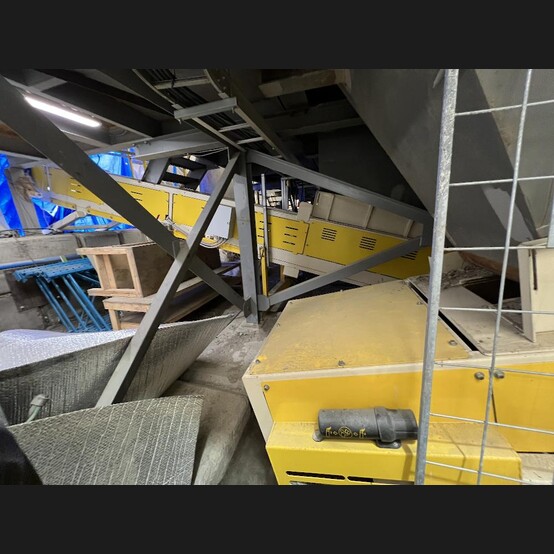

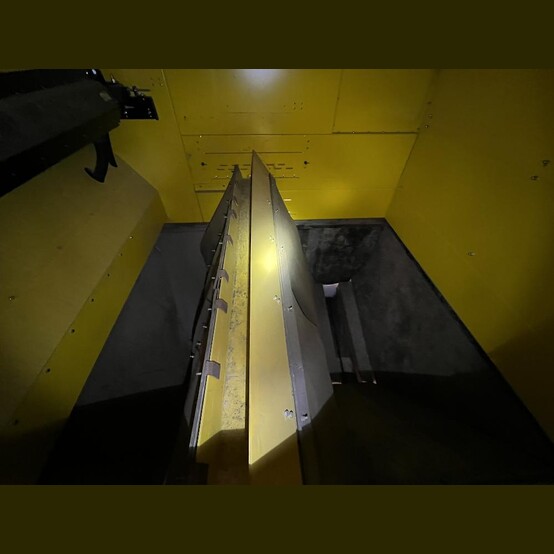

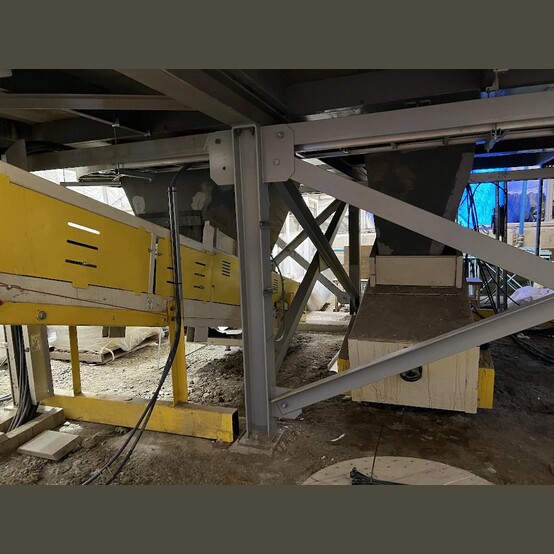

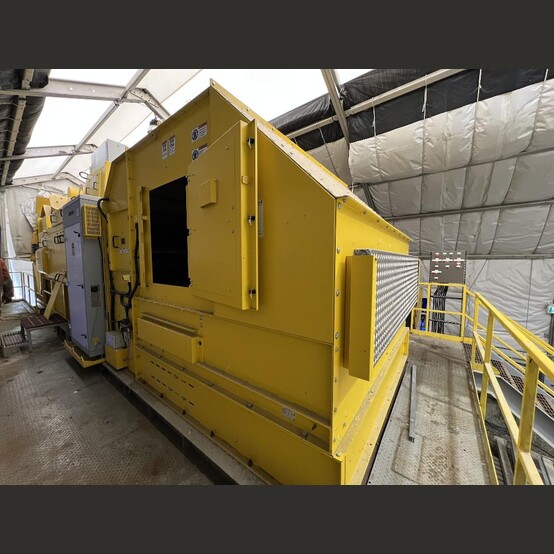

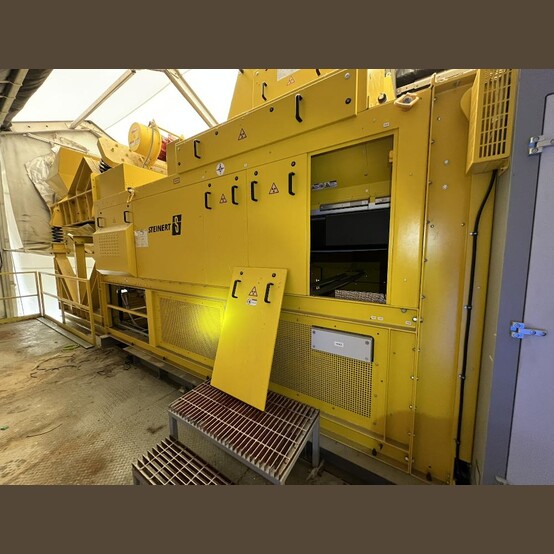

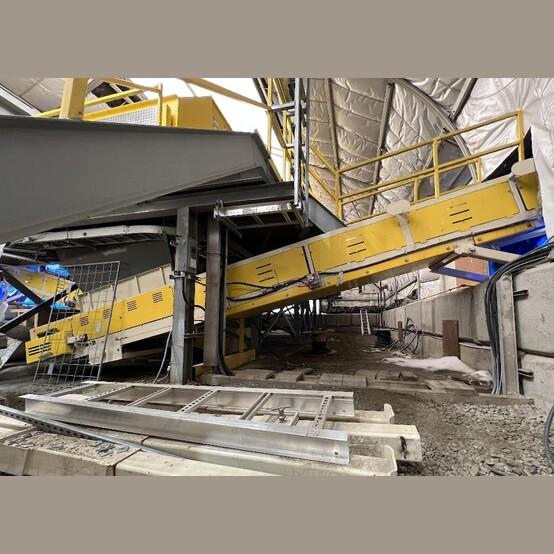

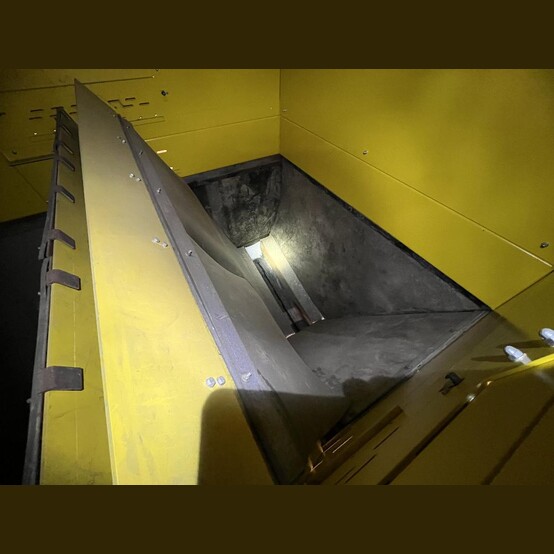

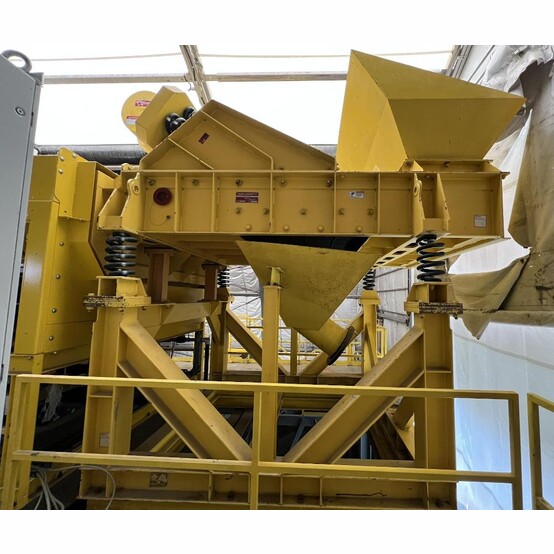

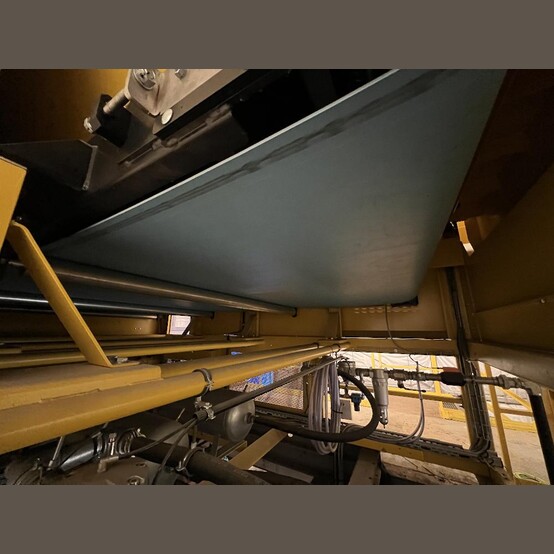

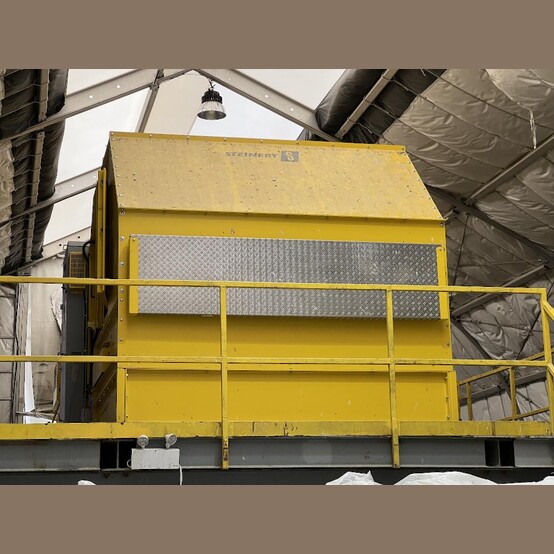

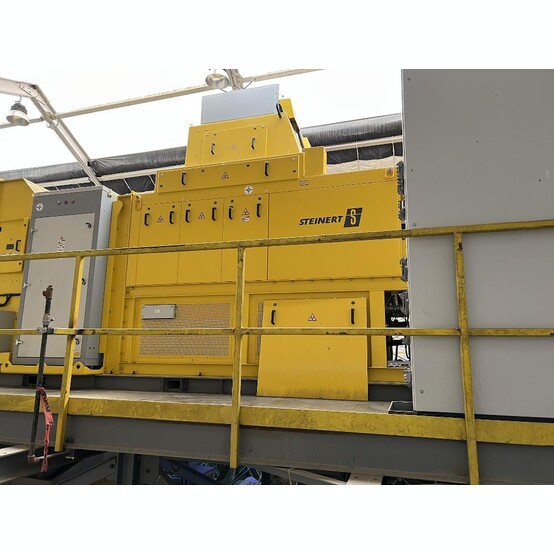

Steinert KSS Ore Sorter

• Make: Steinert
• Series: KSS

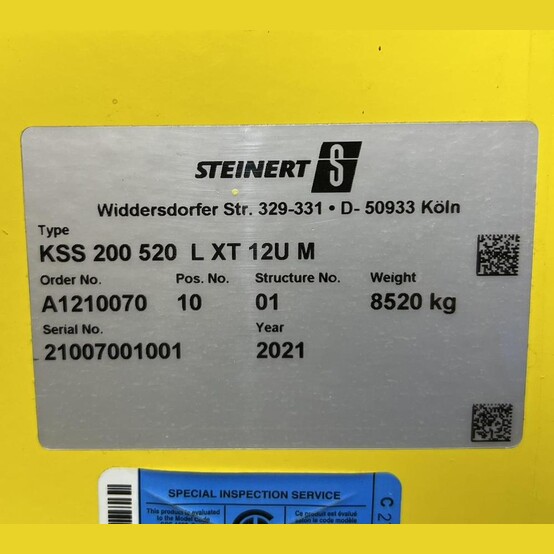

• Type: KSS 200 520 L XT 12U M
• Year: 2021
• Condition: Unused, Surplus Condition
• X-Ray Transmission
• Laser (3D Detection)


• General Model Specifications:
  • Environmental Specs:
    • Permitted Ambient Temp.: -5 to 40°C
    • Installation Site: Under Roof/Indoor
  • Electrical Specs:
    • Power Consumption: 30.9kVA
    • Protection Class: IP55/IP66

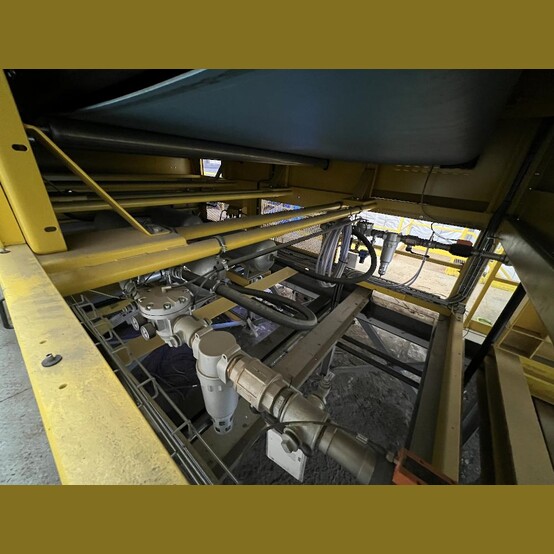

  • Pneumatic Specs:
    • Compressed Air Quality: ISO 8573-1
    • Operating Pressure: 8/10 bar
    • Pneumatic Connection: 2in Dia.

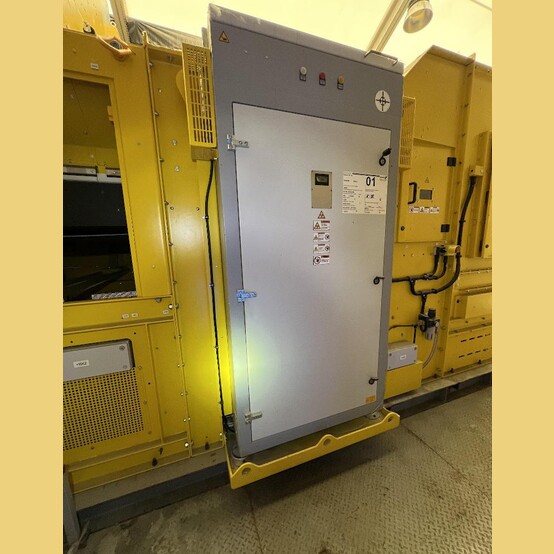

  • Control Unit:
    • Distance Control Unit to Machine: 10m
    • Electrical Full Load: 44.7 Amps
    • Dimensions (Approx.): 1,600mm Wide x 600mm Deep x 2,100mm Tall
    • Weight: 350kg

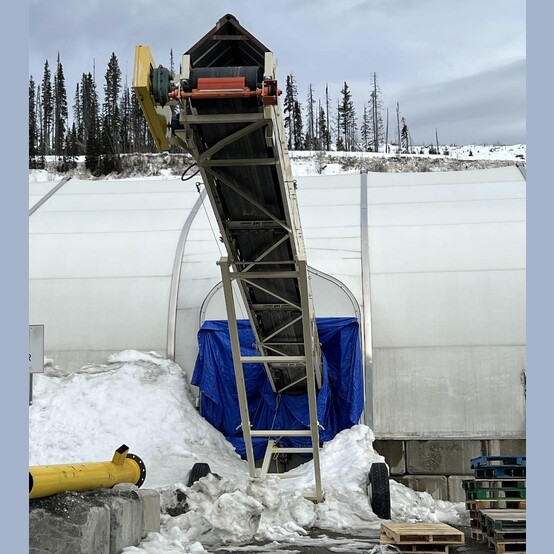

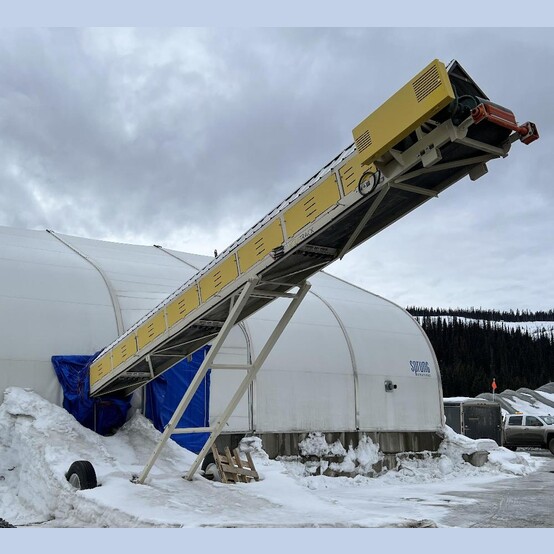

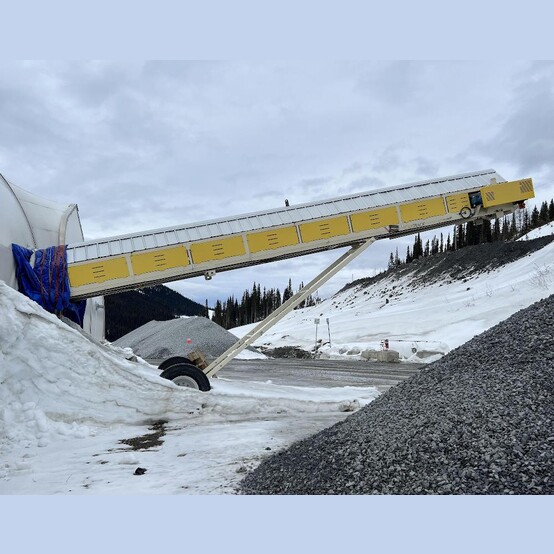

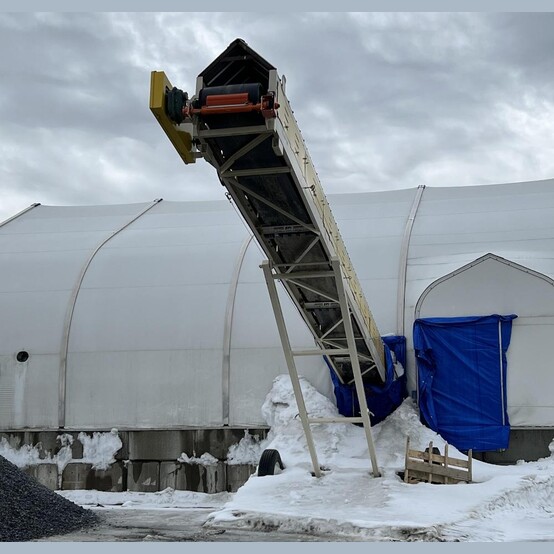

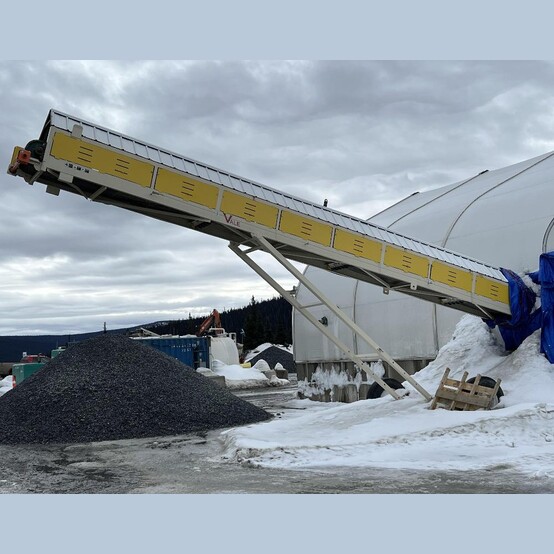

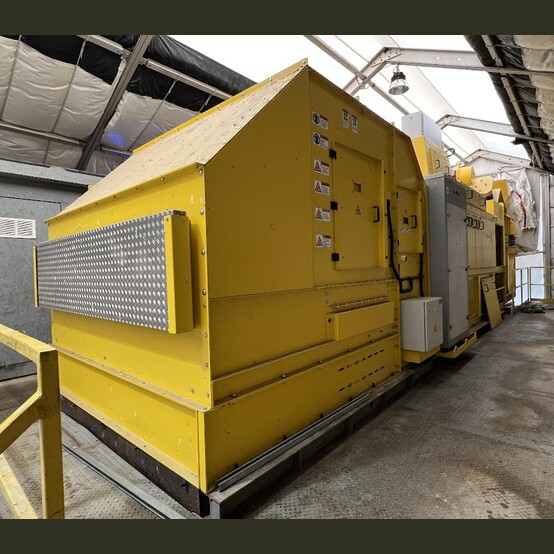

  • Main Unit Dimensions (Excluding Controls and Discharge Conveyors):
    • Length: 11,700mm
    • Width: 3,100mm
    • Height: 3,800mm


• Location: Western Canada

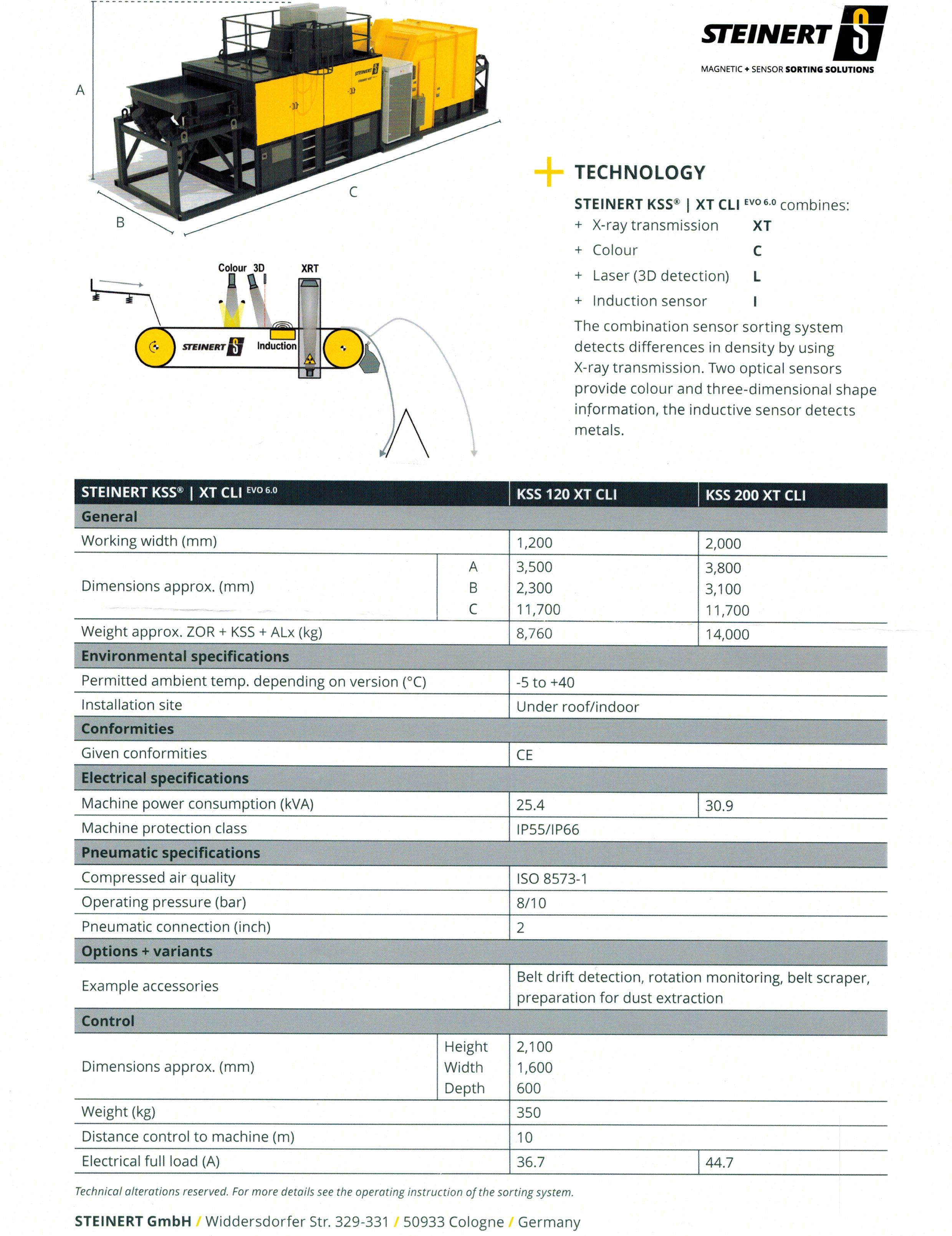

View Spec Sheet Below
