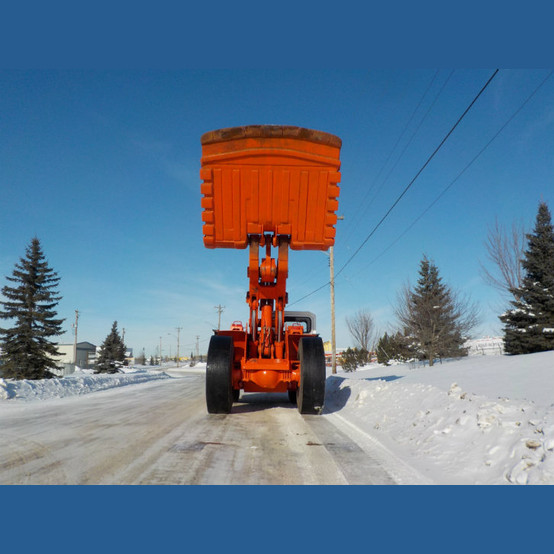

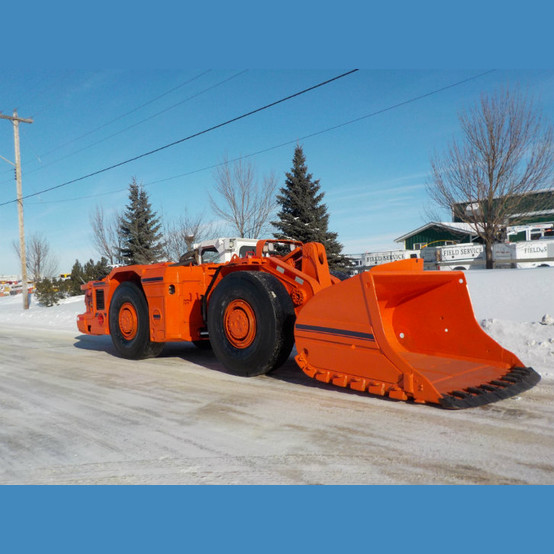

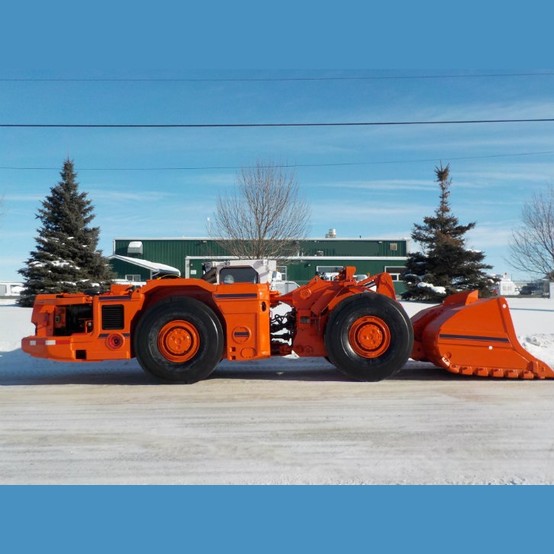

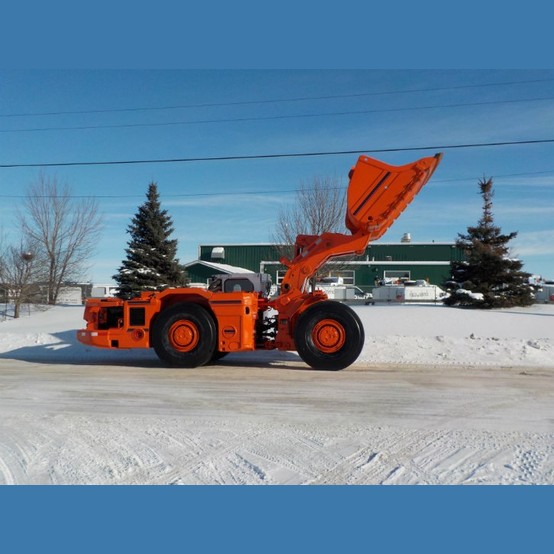

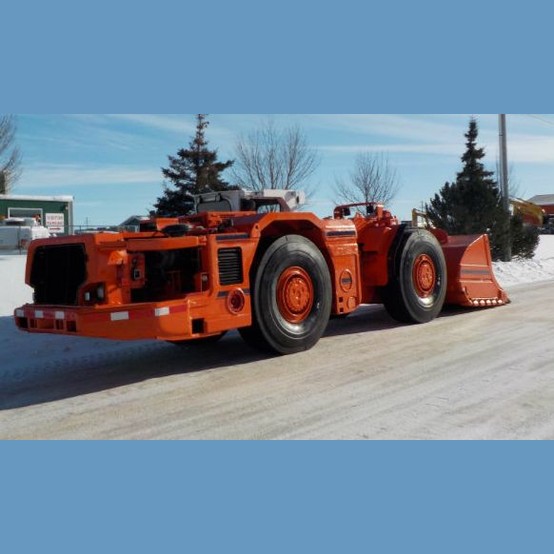

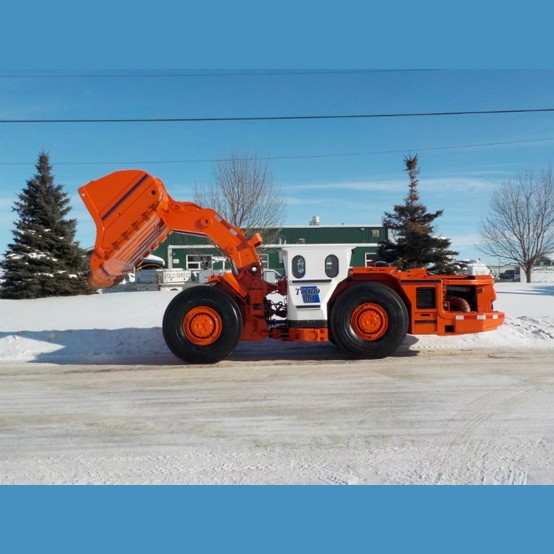

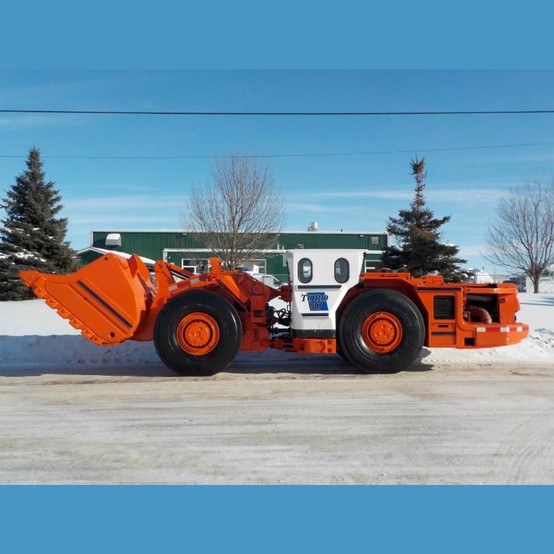

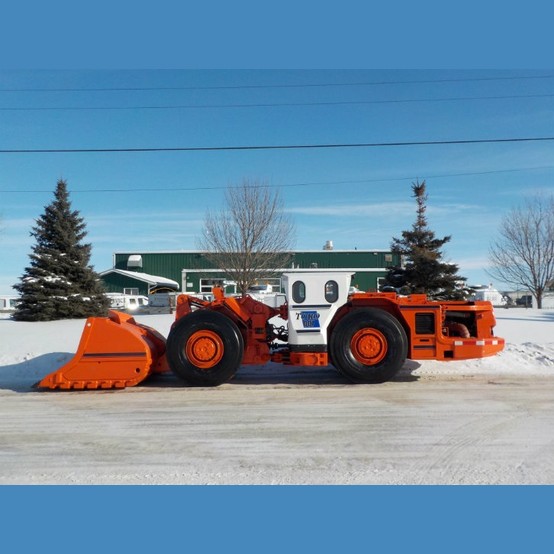

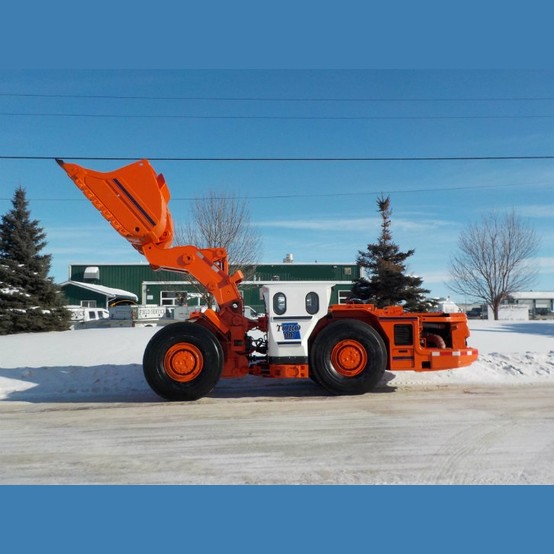

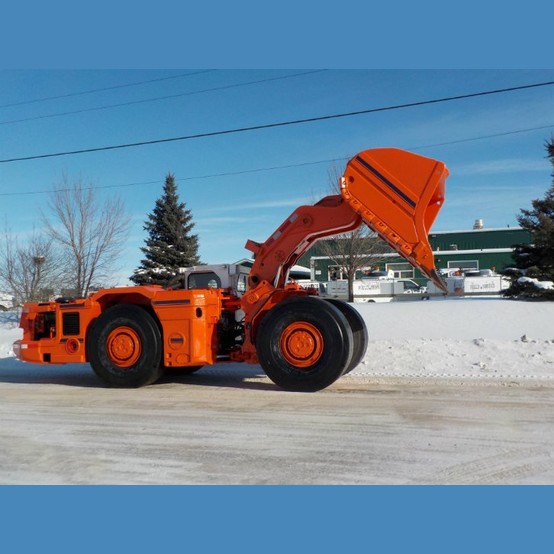

• Model: 007
  • Make: Sandvik TORO
  • Year: 2006
  • Hours: 4897
  • Weights
    • Operating Weight: 26,200 kg (57,760 lbs)
    • Total Loaded Weight: 36,200 kg (79,800 lbs)
    • Shipping Weight: 26,000 kg (57,320 lbs)
  • Capacities
    • Tramming Capacity: 10,000 kg (22,000 lbs)
    • Breakout Force, Lift: 184 kN (18,800 kg) (41,400 lbs)
    • Breakout Force, Tilt: 163 kN (16,600 kg) (36,600 lbs)
    • Tipping load: 23,400 kg (51,600 lbs)
    • Bucket std: 4,6 m3 (6.0yd3), HB500/400
  • Bucket Motion Times
    • Raising Time: 7.5 sec.
    • Lowering Time: 4.0 sec.
    • Tipping Time: 2.2 sec.
  • Driving Speeds Forward and Reverse
    • 1st Gear: 5.0 km/h (3.1 mph)
    • 2nd Gear: 9.2 km/h (5.7 mph)
    • 3rd Gear: 15.2 km/h (9.4 mph)
    • 4th Gear: 26.5 km/h (16.5 mph)
  • Engine
    • Diesel Engine (Euro Stage II / Tier II): Detroit S-50 DDEC IV
    • Output: 187 kW (250 hp) / 1800-2100 r/min
    • Torque: 1085 Nm/1350 r/min
    • Number of Cylinders in Line: 4
    • Displacement: 8,500 cm3
    • Cooling System Water Cooled
    • Combustion Principle: 4-stroke/turbo, Intercooler
    • Electric System: 24V
    • Air Filtering Donaldson
    • Exhaust System Catalytic: Purifier and Muffler
    • Fuel Tank Capacity: 310 l (80 gal.)
    • Optional Engine Deutz: BF6M1013-ECP, 182 kW/2100 r/min (247hp)
  • Drive Line
    • Converter and Gearbox Dana SOH, MHR33425
    • Axles Front Dana SOH, 19D Rear, Dana SOH, 19D, oscillating ± 8°.
  • Tyres
    • Size: 18.00 x 25 L5S
    • Type: Bridgestone

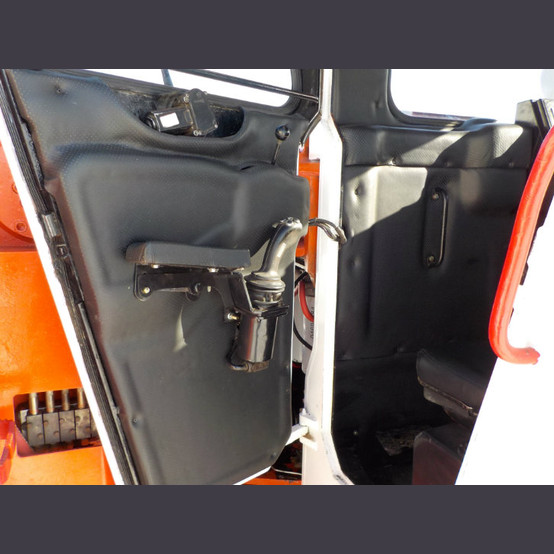

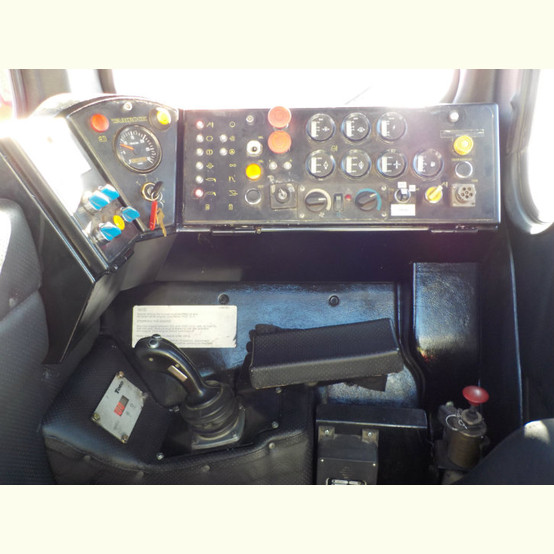

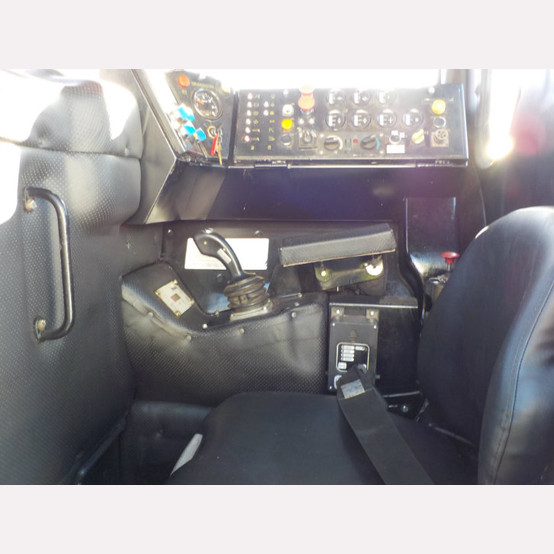

  • Operators compartment
    • ROPS / FOPS Certified Canopy.
    • Height: 2395 mm (94 in.)
    • Optional Air-Conditioned: ROPS/FOPS Safety Cabin
  • Lubrication system
    • Centralized manual lubrication, dog bone pins with grease chamber
    • Optional automatic central lubrication
  • Optional Bucket Sizes
    • Bucket Size: 4.0 m3 (5.2yd³), width 2550 mm(100 in.), HB500/400.
    • Bucket Size: 5.0 m3 (6.5yd³), width 2550 mm (100 in.), HB500/400.
    • Bucket Size: 5.4 m3 (7.0yd³), width 2550 mm (100 in.), HB500/400
    • Ejector Bucket Size: 4.6 m³ (6.0yd³), width 2770 mm (109 in.), HB500/400.
  • Location: Western Canada
