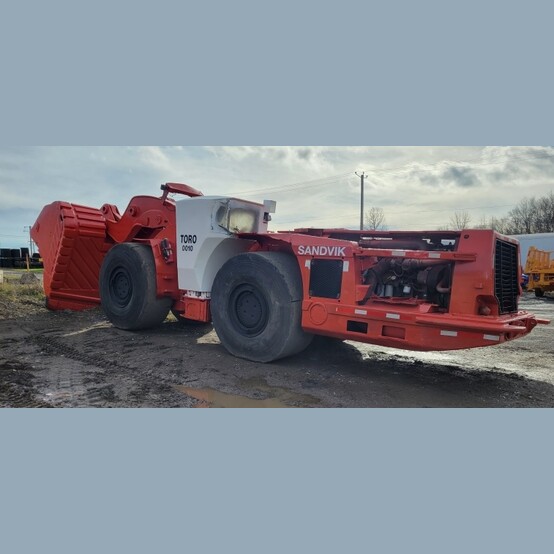

Sandvik Toro 0010 Scooptram

  • Make: Sandvik
  • Model: Toro 0010
  • Year: 2004
  • Condition: Very Good
  • Hours: 7800 Hours
  • Bucket Size: 11 Yards
  • Capacity: 17,200kg (38,000 lbs)

  • Engine: Detroit Diesel S60DDEC1V (369HP, 1405 ft/Lbs Torque)
  • Transmission: Dana 6000 Series Power Shift (Electrical Gear Shift Control) Gear Box with Modulation, 4 + 4 Speeds
  • Torque Converter: Dana C9000 Series Without Lock-Up
  • Axles:
    • Front Axle Dana 53R Series
    • Fixed Rear Axle Dana 53R Series
  • Differentials:
    • Posi-Torq Differentials with Springs
    • Posi-Torq Differentials with Springs, Oscillating ±8°.
  • Brakes: Posi Stop Brakes, Spring Applied, Hydraulically Released Multidisc Wet Brakes
  • Tires: 29.5x29 L-5S, 34-Ply
  • Cabin: ROPS/FOPS Safety Cabin 21 with AC/Heat. Height: 2,754 mm (108”)

  • Overall Dimensions:
    • Length: 11,120 mm (438")
    • Width: 3,000 mm (118") - With Bucket, 2 785 mm (110") - No Bucket
    • Height: 2,754 mm (109")
    • Weight: 44,030kg (97,000 lbs)

  • Additional Notes:
    • Automatic Lube System
    • Bucket Motion Times
      • Raising time 8.3 sec.
      • Lowering time 4.3 sec.
      • Tipping time 2.0 sec
    • Breakout Force:
      • Lift: 343 kN (35,000 kg, 77,160 Lbs)
      • Tilt: 289 kN (29,450 kg, 64,930 Lbs)
      • Tipping Load: 35,500 kg (78,260 Lbs)
    • Electric System: 24V Starter and Accessories
    • Joystick Bucket & Steering
    • Turning Angle: ±42.5°
    • Rear and Front Frame: Welded Steel Construction
      • Material Raex Multisteel N (St/Fe 355)
    • Fuel Tank Capacity: 485L (128 gal)
    • Catalytic Purifier and Muffler

  • Location: Canada
