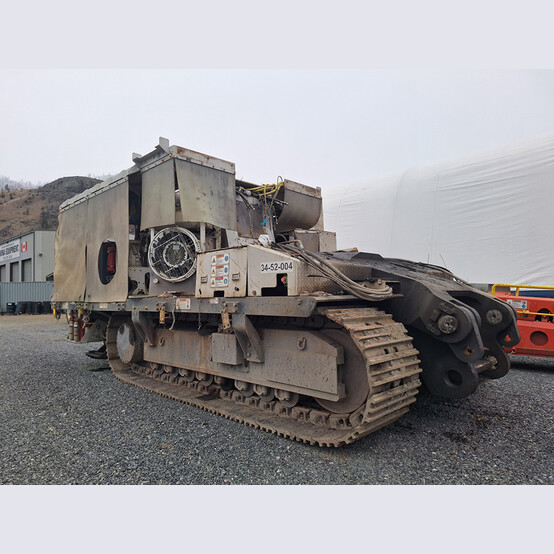

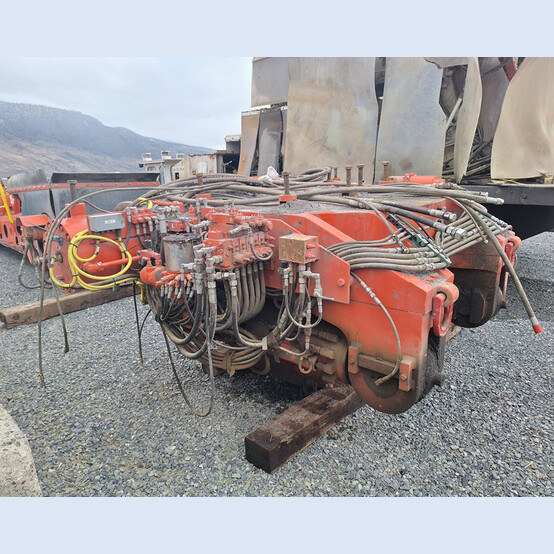

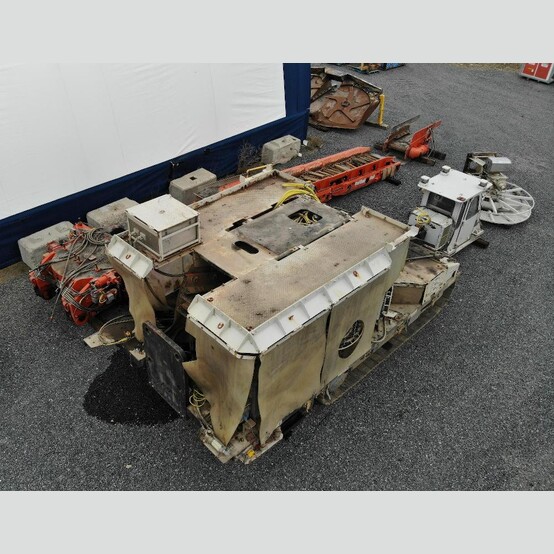

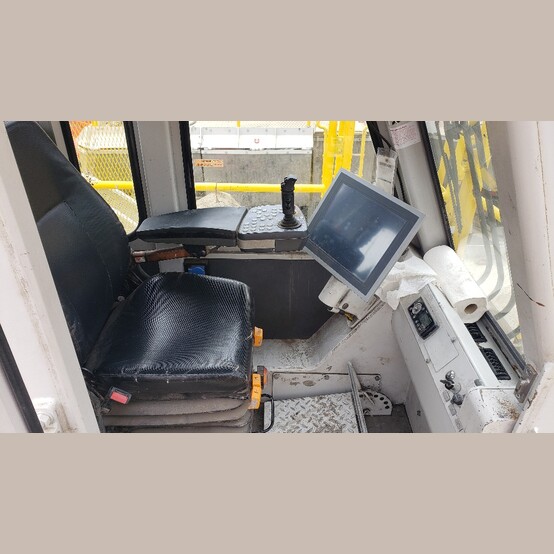

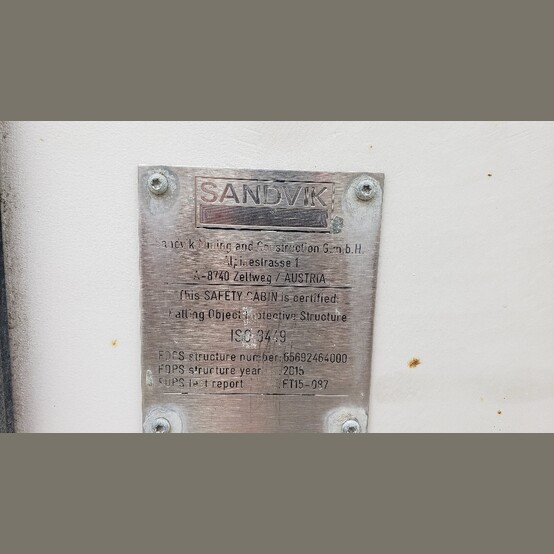

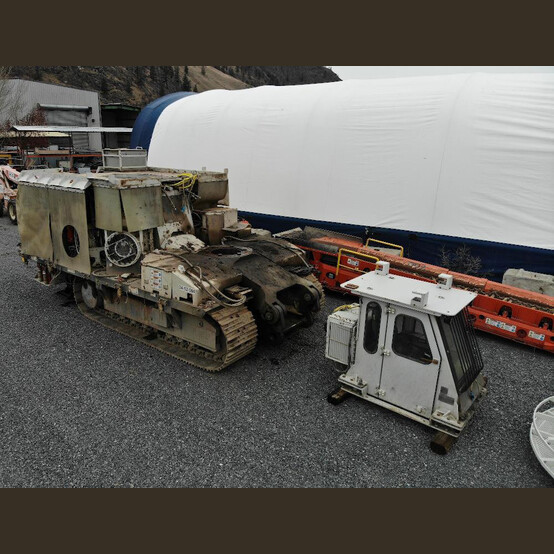

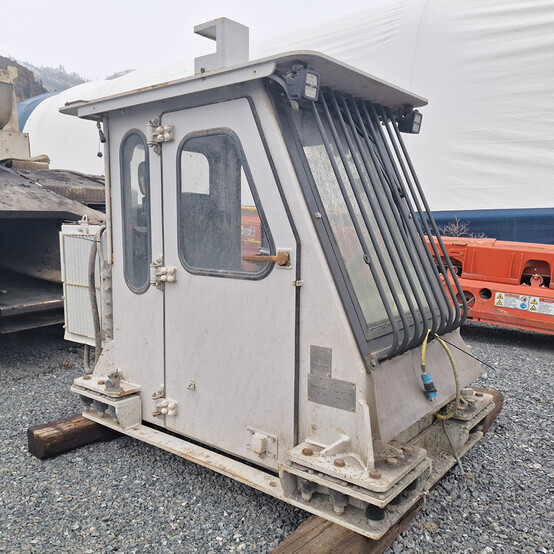

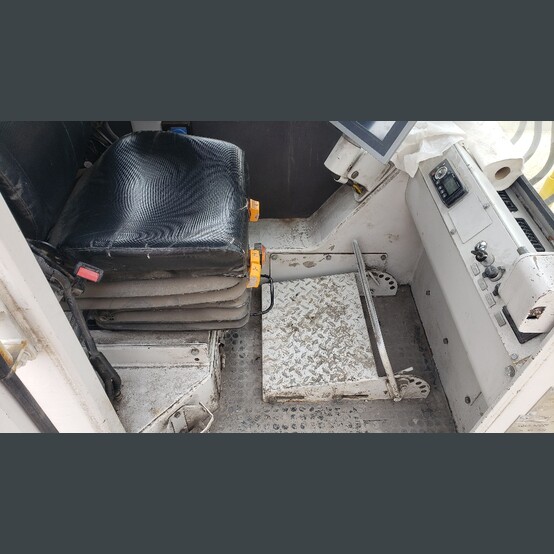

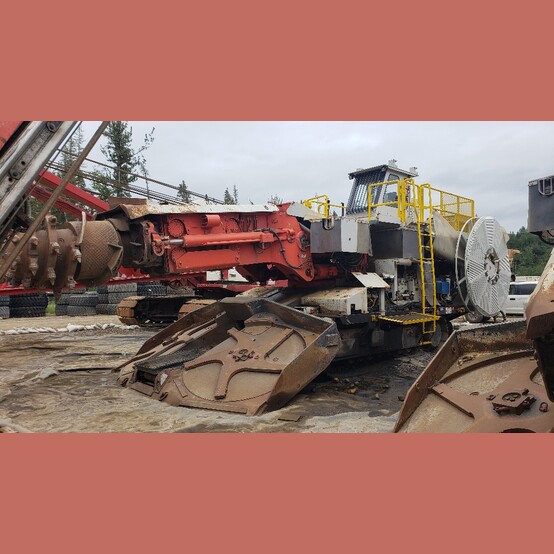

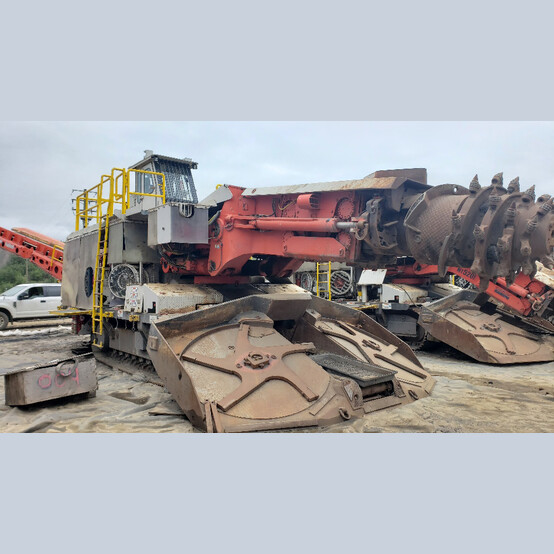

Sandvik MT520 Roadheader ID: 1336758

Now Located at Our Site in Savona, B.C. Canada!
Inquire Today!

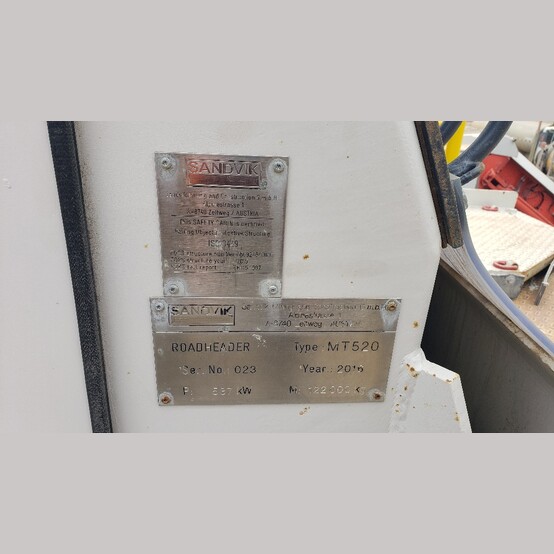

Make: Sandvik
Model: MT520
Type: Roadheader

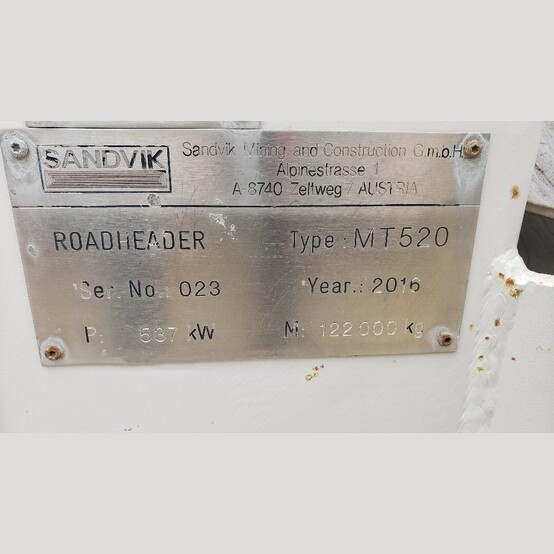

Serial: 023
Condition: Used, Reported In Good Condition
Year: 2016
Hours:
- Hydraulic Motor: 5,542 Hours
- Cutting Head Motor: 3,756 Hours

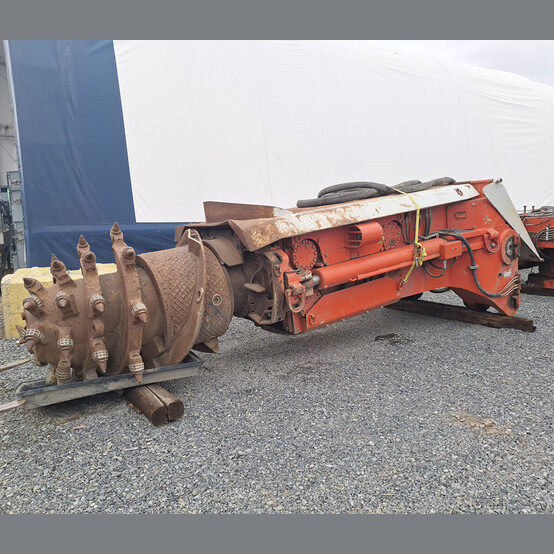

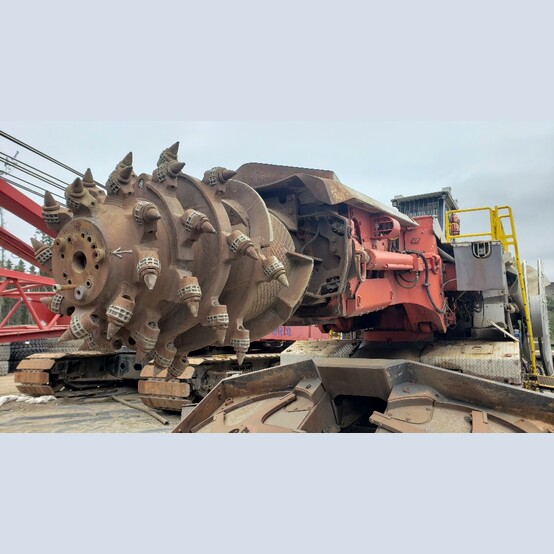

Cutter Head: R315-IC39
- Optimum Application: Rock with Compressive Strength from 40-60 MPa
- Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
- Diameter: 1430mm
- Width: 1160mm
Description: The Sandvik Roadheaders are Electro-Hydraulically Powered and equipped with powerful, geometrically optimized, inline or transverse cutter heads proven to give the best cutting performance in a wide range of rock conditions. Subway tunnels, road tunnels, shaft sinking, rehabilitation of existing tunnels and excavation of underground caverns are just a few examples where these machines have demonstrated their great flexibility. Our Sandvik MT520 PLC-controlled Roadheader has been designed for use in tunneling, as well as salt, potash and chalk mining with a maximum profile up to 70m². It has a modular design that offers more flexibility than standard Roadheaders and works in most rock conditions up to 100 MPa compressive strength.
General Model Specifications:
- General Data:
  - Total Length with Belt Conveyor: 20,000mm (Approx.)
  - Total Length: 12,900mm (Approx.)
  - Machine Width - Chassis: 3,695mm
  - Machine Width - Tracks: 3,300mm
  - Min Travel Height: 4,800mm (Approx.)
  - Total Height: 4,950mm
  - Loading Table Width: 4,620mm
  - Crawler Track Width: 800mm
  - Total Weight Basic Machine: 123 Tons (Approx.)
  - Ground Clearance: 242mm
  - Total Available Power: 537kW
  - Machine Ground Pressure: 0.23 MPa
- Navigable Area of Application:
  - Cone Radius - Min: 25m (Approx.)
  - Basin Radius - Min: 20m (Approx.)
  - Max Side Tilt Angle during Tramming: ±5°
  - Max Front Tilt Angle During Tramming: ±18°
  - Cuttable Uniaxial Compressive Strength: 80-140 MPa
  - Power Supply: 1000 Volt / 60Hz
- Cutter Head:
  - Max Cutting Height Above Track Level: 7,100mm
  - Min Cutting Height above Track Level: 6,350mm
  - Cutting Width: 7,900-9,300mm (±37° Horizontal Angle)
  - Max Undercut Below Floor Level: 750mm
  - Head Diameter: 1,460mm
  - Head Width: 1,160mm
  - Max Cutting Speed: 1.5m/sec
  - Optimum Swivel Speed: 0.05-0.08m/sec
  - Cross-Sectional Area to Floor Level: 47-70m²
  - Available Power: 315kW

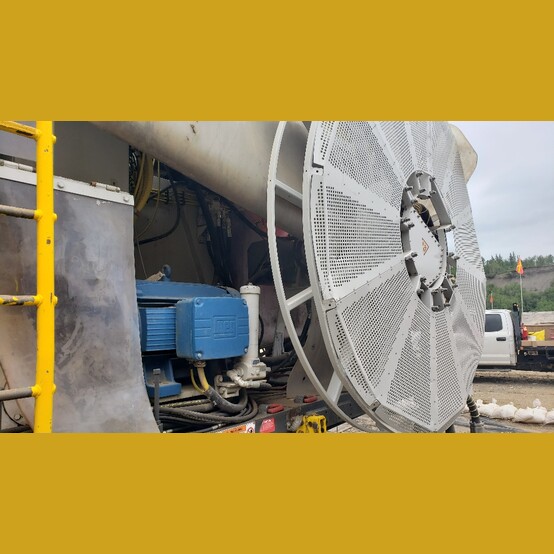

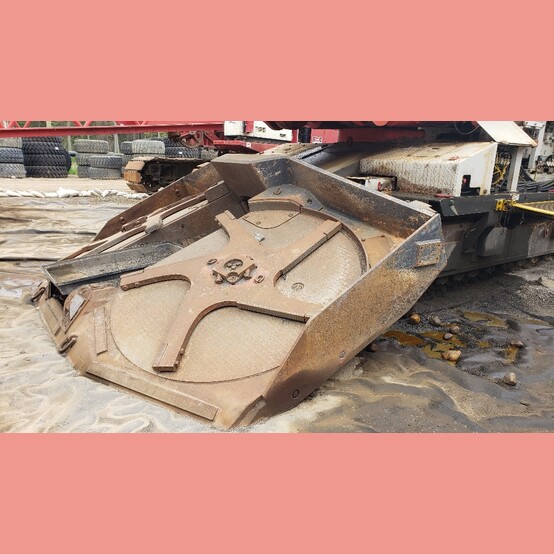

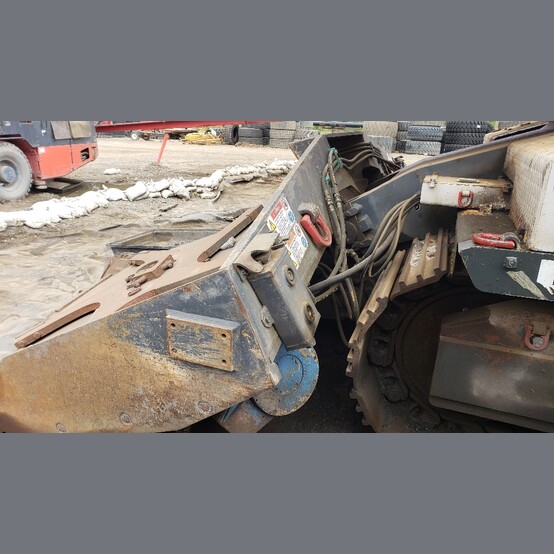

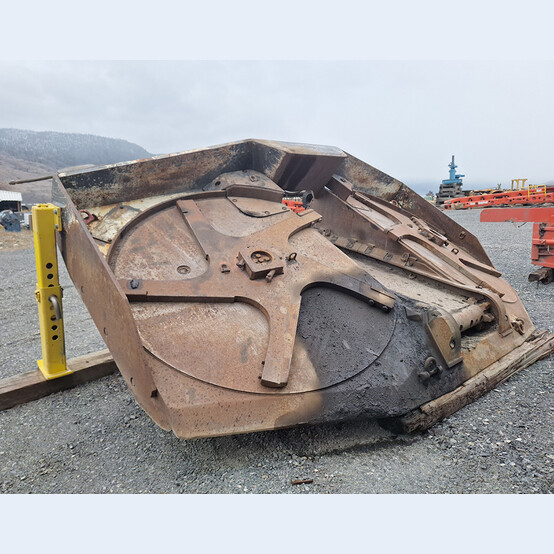

- Loading Device:
  - Device: Spinner
  - Loading Capacity: 350m³/h Max.
  - Loading Width: 4,620mm
  - Loading Device Height Above Floor Level: 635mm
  - Loading Device Height Below Floor Level: 230mm
  - Available Power: (2) 36kW

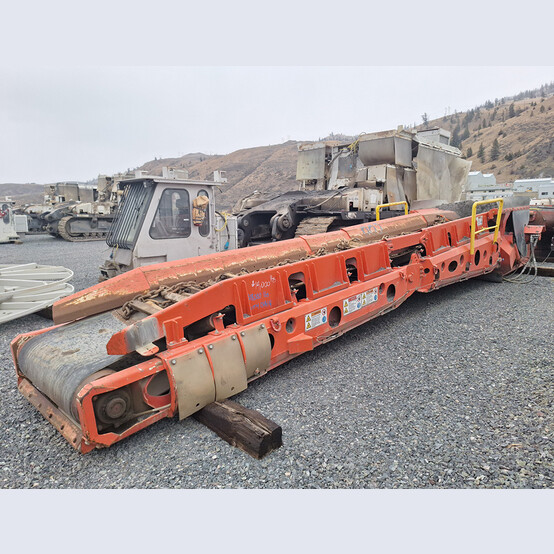

- Conveyor:
  - Conveyor Width: 840mm
  - Conveyor Chain Speed: 0.5-0.9 m/sec
  - Conveyor Capacity: 350m³/h Max
  - Installed Power (Hydraulic Driven): 90kW

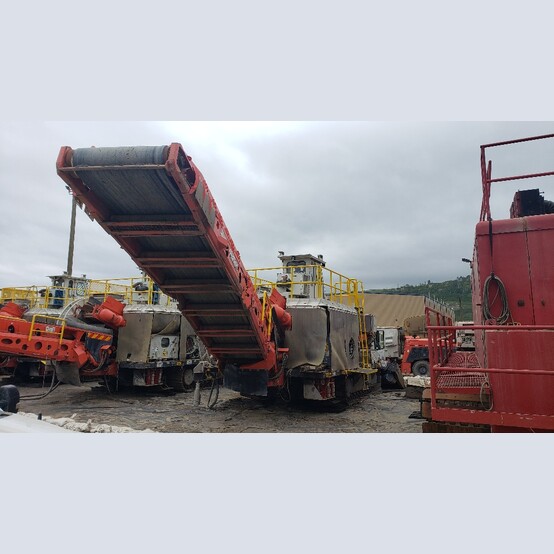

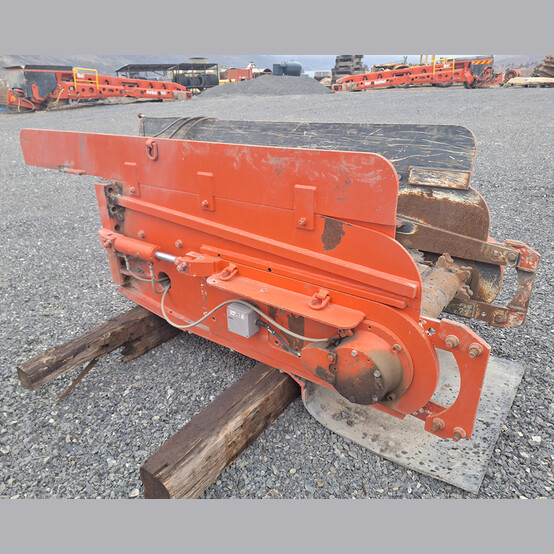

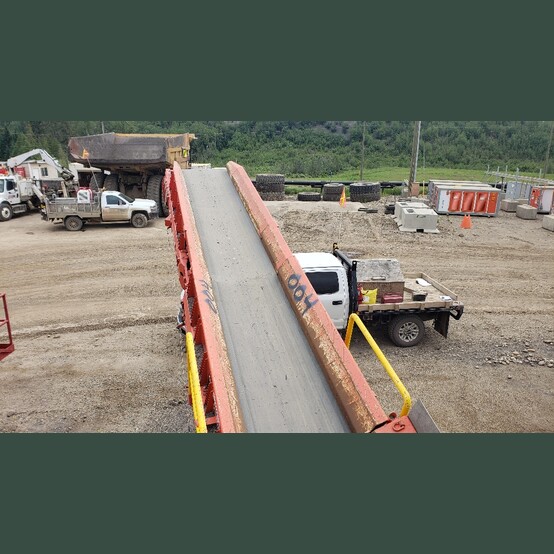

- Swivel Belt Conveyor:
  - Swivel Belt Conveyor Width: 1,000mm
  - Swivel Belt Conveyor Overhang: 6,600mm
  - Swivel Belt Conveyor Chain Speed: 2m/sec Max
  - Swivel Belt Conveyor Max Discharge Height: 6,000mm
  - Swivel Belt Conveyor Min Discharge Height: 3,500mm
  - Available Power: 25kW

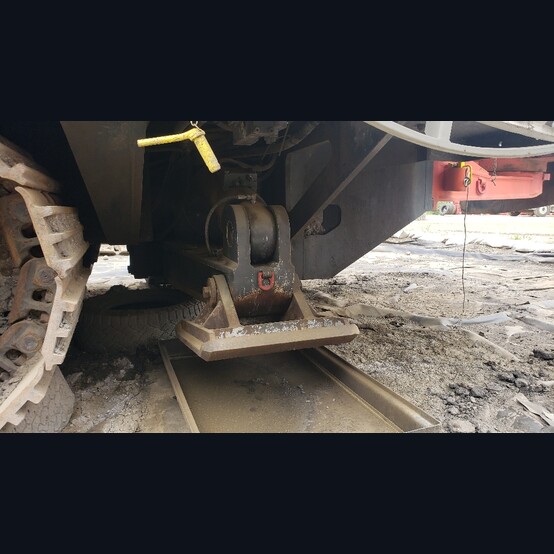

- Frame/Crawler Track:
  - Tramming Speed: 0-18 m/min
  - Track Force Per Track: 465kN
  - Track Overall Width - Track Exterior: 3,300mm (Approx.)
  - Track Ground Length: 3,800mm (Approx.)
  - Track Chain Width: 800mm
- Electrical System:
  - Electrical Potential: 1000 Volt / 60Hz
  - Available Power:
    - Cutter Motor - Water Cooled: 315kW
      - Rotational Speed: 1475 RPM
      - Nominal Torque: 1,942Nm
    - Hydraulic Motor - Air Cooled: 150kW
      - Rotational Speed: 1489 RPM
      - Nominal Torque: 962Nm
    - Loader Motors - Water Cooled: (2) 36kW
      - Rotational Speed: 1450 RPM
      - Nominal Torque: (2) 237Nm

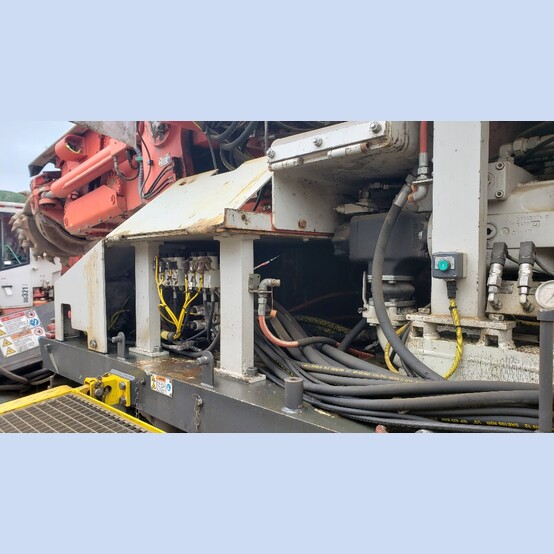

- Hydraulic System:
  - Available Power: 150kW
  - Pressure - Machine: 280 bar
  - Pressure - Chain Conveyor: 330 bar
  - Tank Capacity: 480 Liters
  - Total Oil Capacity: 680 Liters
- Water System:
  - Quantity of Water, min.: 43 L/min
  - Pressure: 4 bar Min, 20 bar Max
  - Water Temperature: 12-35° C
  - Spraying System Type: Cutterhead and Cabin

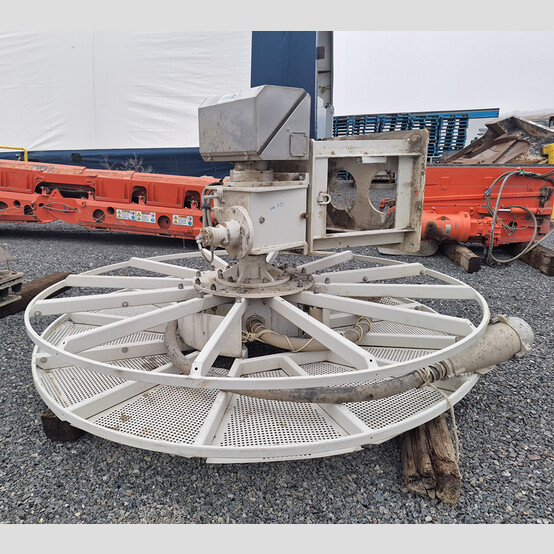

- Additional Equipment:
  - Fire Protection: Fire Suppression/Detection System + (2) Hand Extinguishers
Overall Dimensions:
- Length: 20m (20,000mm)
- Width: 4.62m (4,620mm)
- Height: 5.15m (5,150mm)
- Weight: 123 Tons (123,000 kgs)
Location: Savona, British Columbia, Canada
