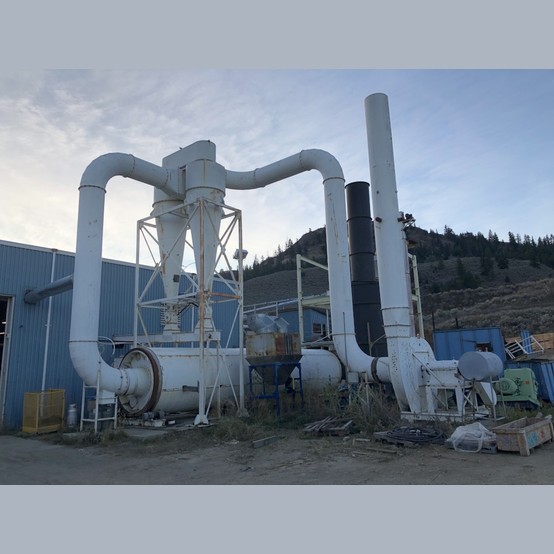

- 7 ft. Dia. x 40 ft. Long Triple Pass, indirect heat, Rotary Drum Dryer.
- Trunnion wheel mounted.
- Dual 5HP gearhead motors (one each end of drum).
- US Motor Gear reducer.
- Series 3000.
- 35 – 5 Ratio.
- 6’ dia. Refractory Lined fire box.
- Comes with 20” backward curved centrifugal forced air blower.
- 3 – feed points from ground level to approx. 8’.
- Eclipse RatioMatic Burner assembly.
- Model: 32-300.
- 1½”Gas train.
- Eclipse series 2000AT automatic shut off valves.
- Dual 48” dia. Classifier Cyclones with rotary valve Air Locks.
- 32” dia. Material transfer Piping.
- Centrifugal exhaust blower.
- Belt driven by a 100 HP Leeson motor.
- 1150 RPM.
- 575 Volt.
- Location: Western Canada
