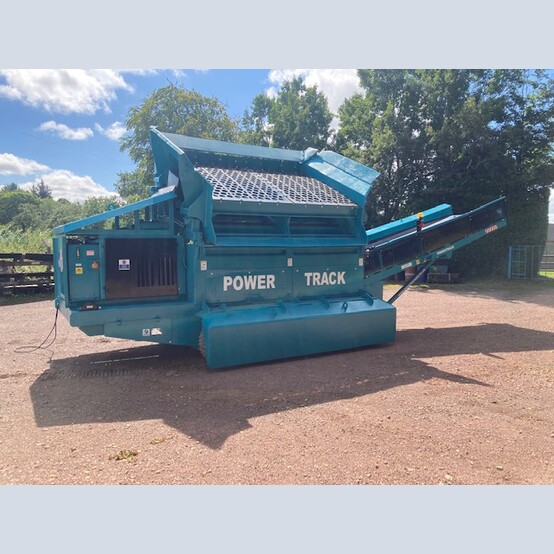

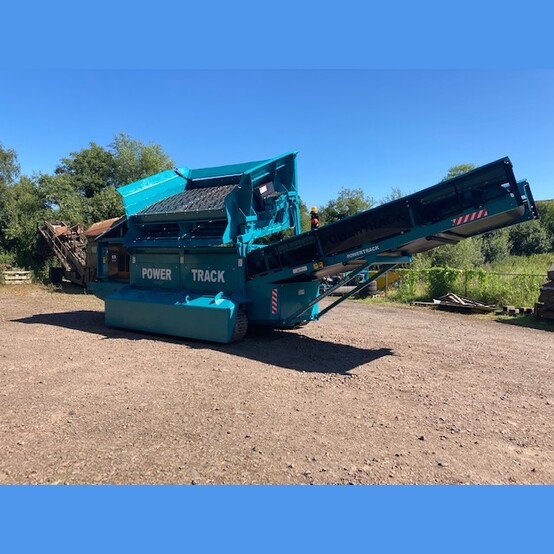

Powerscreen Powertrack 800

• Make: Powerscreen
• Model: Powertrack 800
• Capacity: Up To 600 TPH
• Description: The Powerscreen Powertrack 800 is a specially adapted powergrid fitted with crawler tracks which can be moved around the site by the operator via a handheld remote control
• Condition: Fully Refurbished
• Refurbishment Includes, But Not Limited To:
  • 2012 Deutz Engine
  • New Belt
  • New Rollers
  • New Guards
  • New Doors

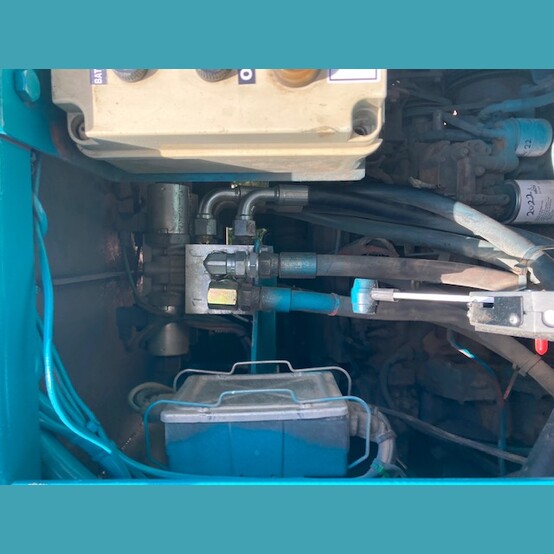

  • Full Hydraulic & Engine Service
  • New Skirting Rubber & Belt Scraper
  • New Tracking Solenoids
  • Fully Sandblasted & Repainted

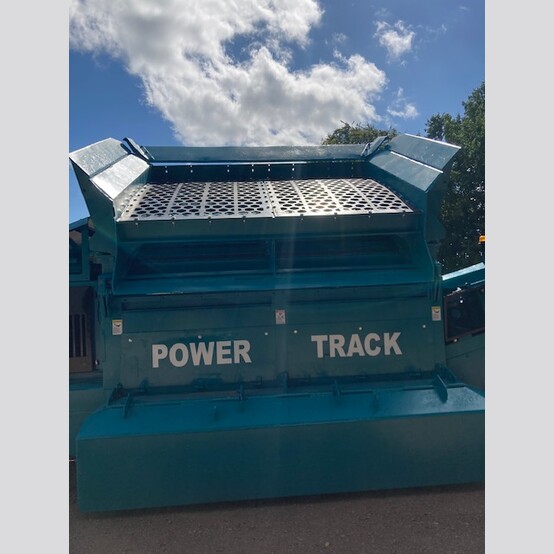

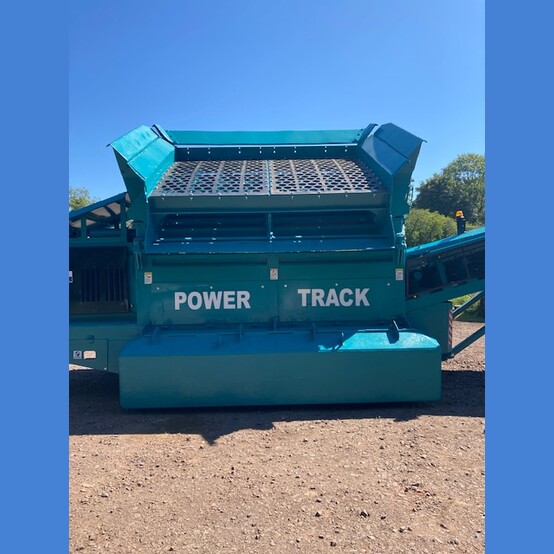

  • New Punch Plate Fitted (100 mm) Top Deck
  • New Wing Plates


• General Model Specifications:


  • Scalping Unit
    • 2 Screening Surfaces 10ft x 7ft
    • Conventional 2 Bearing Screen Arrangement
    • Bofor Steel Grizzly Bar Reject Grid Fitted to Top Deck
    • Screening Angle Adjustment from 12° to 27°


  • Hopper and Conveyor
    • Steel Plate Hopper Directs Material onto Conveyor, Full Rubber Skirting Eliminates Spillage
    • 1500mm Wide Belt Discharges at a Height of 2.55m
    • 3-Ply Heavy Duty Belt With Vulcanized Joint and Self-Adjusting Belt Cleaner


  • Transport and Mobility
    • Heavy Duty Excavator Type Crawler Tracks


  • Operation
    • Output of up to 600 Tonnes per Hour


  • Hydraulic Pump
    • QR 4032/4032 Clockwise Tandem Pump
    • 69 Litres per Minute


  • Hydraulic Motors
    • Screen Motor - MCC 2208 (58cc per rev)
    • Conveyor Motor - OMV800 (800cc per rev)


  • Screen Shaft Speed
    • Empty- 1150 RPM
    • Full- 1100 RPM


  • Main Conveyor
    • Conveyor Belt - 3 Ply x 1500mm Wide
    • Drums Outside Diameter- 273mm
    • Drum Centers - 7.68m
    • Drum Speed Empty - 123 RPM
    • Drum Speed Full - 80 RPM
    • Conveyor Belt Speed Empty - 105m/min
    • Conveyor Belt Speed Full - 70m/min


  • Tracks

    • 19.6° Gradeability
    • Gearbox Ratio 122:1
    • Motor Displacement of 63cc/rev
    • Max Speed: 1.02km/h


• Shipping Dimensions:
  • Length: 9.96m
  • Width: 2.93m
  • Height: 3.4m
  • Weight: 19,500 KG (21.5 US Tonnes)


• Location: UK
