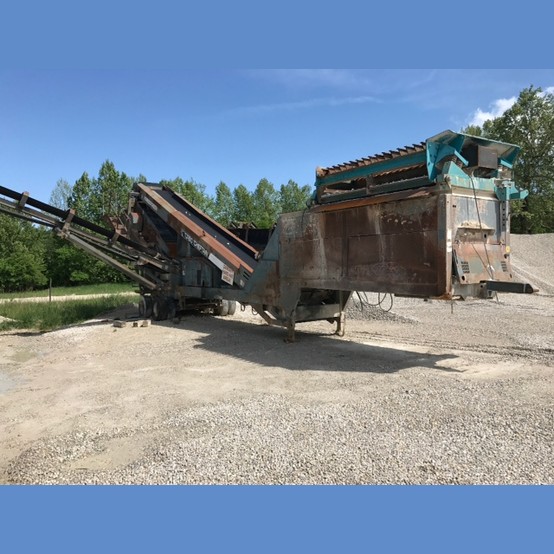

- Integrated high capacity variable speed belt feeder.
- Grease filled 4 bearing.
- 2 deck screenbox.
- Screen walkway and access ladder.
- Hydraulic folding conveyors.
- Output Potential: Up to 400tph (441 US tph).
- Hopper:
- Capacity: 7.5m3 (9.8yds3)
- Variable speed
- Reject grid as standard
- Feeder Conveyor
- Width: 1050mm (42 In.)
- Variable speed
- Power Unit:
- Tier 3/Stage 3A:
- CAT C4.4 ATAAC 83kW (111hp).
- Tier 4F/Stage 4:
- CAT C4.4 82kW (110hp).
- CAT C4.4 98kW (131hp).
- Fuel tank capacity: 336 L (88 US Gal)
- Tier 3/Stage 3A:
- Main Conveyor:
- Width: 1050mm (42 In.).
- Hydraulically adjustable.
- Screenbox:
- 4 Bearing, 2 deck screenbox.
- Size: 3.33m x 1.53m (11 Ft. x 5 Ft.).
- Tail Conveyor (Finesize):
- Width: 1200mm (48 In.).
- Discharge height: 3.91m (12 Ft. 10 In.).
- Side Conveyor (Midsize & Oversize):
- Width: 650mm (26 In.).
- Discharge height: 4.49m (14 Ft. 9 In.).
- Individual variable speed.
- Location: Japan
