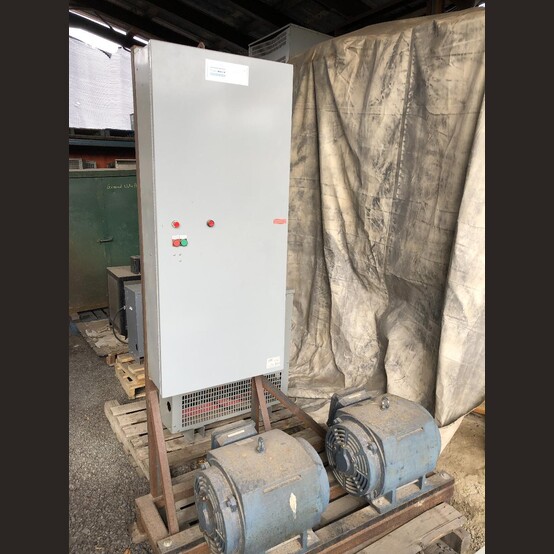

PhaseMaxx 50T RotoPhase Phase Converter

  • Make: PhaseMaxx
  • Model: 50T
  • Type: N1
  • Condition: Unused
  • Dual OPD 50HP Electric Motors
  • Triple Rated for Single and Multi-Motor Use
  • This Converter Can Operate 1 of the (Largest HP) Motors, plus Smaller Motors up to the Maximum HP rating
  • Use with Motors of Various Speeds, Duty Cycles, WYE or Delta Connected and at Constant or Variable Loads

  • Input:
    • 1 Phase
    • 230 Volts
    • F.L.A. 125

  • Output
    • Largest HP: 50 HP
    • Max HP: 150 HP
    • 3 Phase
    • 230 Volt

  • Control Panel and Motors Mounted on Common Skid
    • Overall Dimensions: 61" Long x 31" Wide x 94" Tall

  • Typical applications
    • Machine shops.
    • Fabrication and welding.
    • Irrigation pumps.
  • Location: Savona, British Columbia, Canada
