• 36 in. wide x 800 ft. long.
  • 3 in. x 3 in. square tube frame construction.
  • 60 sections @ 12 ft. long with 36 in. wide - 5 in. dia. 35 deg. troughing idlers.
  • Approx. 42 in. high support legs each with return idler.
  • 40 ft. head section:
    • 18 in. x 7.5 in. H-beam skid frame.
    • 50 hp electric motor.
    • 30 in. dia. head pulley with rubber weld on lagging.
    • 3 7/16 in. shaft and bearings.
    • Hub City size 8 shaft mount reducer, 25:1 ratio.
    • 12 in. dia. snub pulley.
    • 8 x 4 in. I-Beam support structure under balance.
    • 20 ft. of 24 in. wide expanded metal mesh walkway.

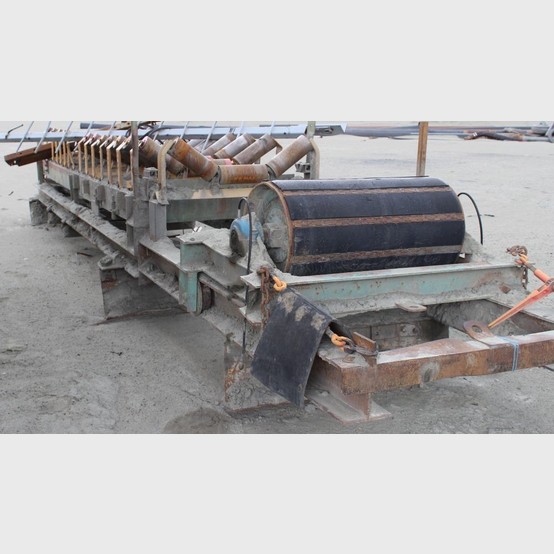

  •  24 ft. tail section:
    • 20 in. dia. tail pulley with rubber weld on lagging.
    • 2 15/16 in. shaft and bearings.
    • 18 ft. feed section.
    • 5 in. dia. x 35 deg. idlers.
    • Rollers on 12 in. centers.
    • Tail pulley in sliding frame with front 6 in. dia. steel roller wheels.
    • Racheting chain take ups at back.
  • Unit supplied gone over, cleaned, painted, and complete with belting.
