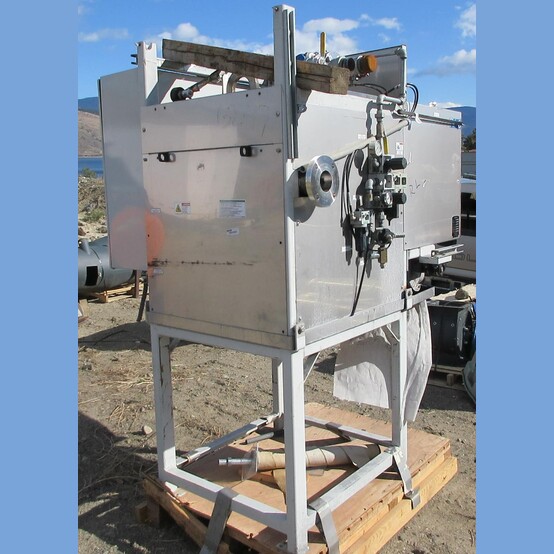

Oberlin OPF-04 Pressure Filter

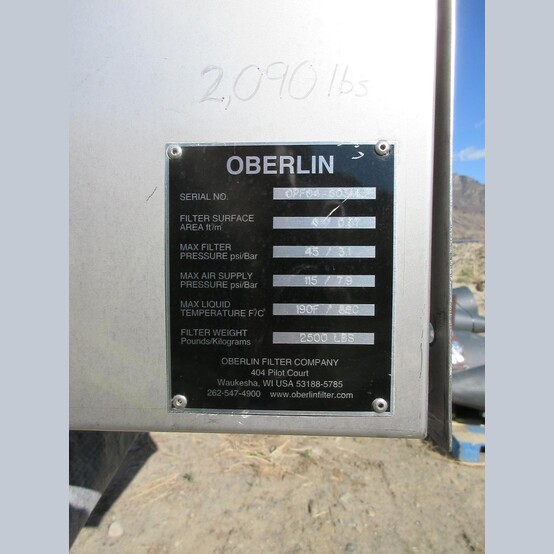

  • Spec Plate:
    • Filter Surface Area: 4ft² (0.37m²)
    • Max Filter Pressure: 45psi
    • Max Air Supply Pressure: 115psi
    • Max Liquid Temperature: 190°F (88°C)
    • Filter Weight: 2500Lbs
    • Nominal capacity of water based material 160 gallons per minute and 200 pounds per hour
    • Dimensions: 68in Long x 53in Wide x 56in Tall

  • Electrical Box
    • VFD
      • Carlo Gavazzi
      • Model: SPD242403
      • Input: 400-500 VAC
      • Output: 24 VDC
    • Control Center in Electrical Box Door

  • Motor and Reducer
    • Motor
      • SEW-EuroDrive TEFC 3 Phase
      • 0.25 HP
      • 230-460 Volts
      • 1710 RPM
    • Reducer
      • SEW-EuroDrive W30 DRS71S4
      • Ratio: 175:1

  • Location: British Columbia, Canada
