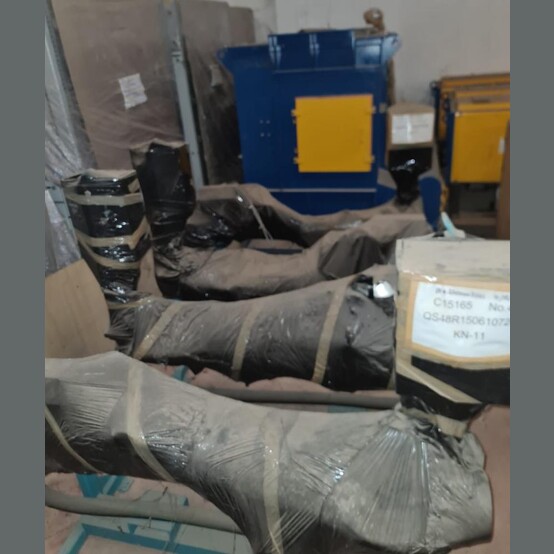

FLSmidth Knelson QS48 Gravity Concentrator

Quantity: 8 Units Available

*Currently Available as Part of 24000 TPD Package ONLY*

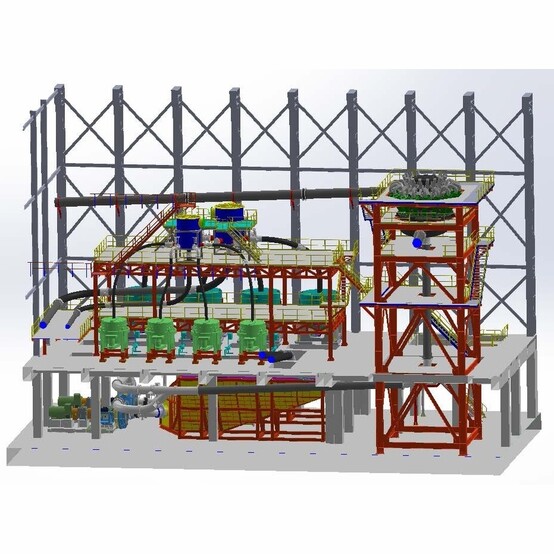

See Listing Here - 1000 TPH / 24000 TPD Gold Plant Equipment with Gravity Concentration

• Make: FLSmidth Knelson
• Model: QS48
• Type: Centrifugal Gold Concentrator
• Style: Gravity Concentrator
• Condition: New Surplus
• Cone: Matrix G6 Cone
• Liner: Natural Rubber Linings
• Construction: Mild Steel Painted Outer Bowl and Shaft
• Piping and Instrumentation Assemblies Including:
  • Bowl Motion Proximity Sensor and Speed Transmitter
  • Fluidization Water Flow Monitoring with a Magnetic Flowmeter c/w Transmitter
  • V-Notch Ball Valve c/w Quarter-Turn Pneumatic Actuator and Pneumatic/Electric Positioner for Fluidization Water Flow Control
  • Pressure Transmitter for High/Low Bowl Pressure Alarms and Condition Monitoring
  • Stainless Steel Spin Clean Filter Assembly
  • Pressure Gauges for Filter and Bowl Pressure Indication
  • Stainless Steel Piping Arrangement to incorporate Components
• Drive: 75kW Electric Motor


• General Model Specifications:
  • Max Feed Capacity (Solids): 400 Tonnes/hr. (440 TPH)
  • Max Total Volumetric Throughput: 545 m³/hr. (2,400 US GPM)
  • Feed Density (Solids Weight): Up to 75%
  • Feed Top Size:
    • Max: 6.0 mm
    • Recommended: 2.0 mm
  • Max Fluidization Water Pressure: 550 kPa (80 PSI)
  • Target Recovery Particle Size: Coarse, Coarse & Fine, Very Fine
  • Motor Size Range: 45-75 kW (60-100HP)
