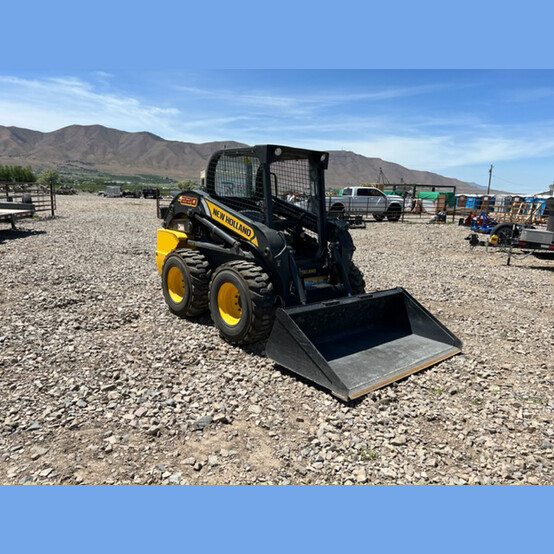

New Holland L220 Skid Steer

  • Make: New Holland
  • Model: L220
  • Condition: Used, Reported in Like-New Condition
  • Hours: 677 Hours
  • Canopy/Cab: OROPS
  • Excellent Rubber
  • Bucket: 7.4yd GP Bucket
  • Bottom of Bucket, Fully Raised: 114in
  • Ground Clearance: 8in
  • Wheelbase: 3.7ft
  • Dump Angle: 52° Degrees
  • Angle Of Departure: 25° Degrees

  • General Model Specifications:

    • Performance:
      • Tipping Load: 3,999 lbs.
      • Operating Weight: 6,459.6 lbs.
      • Breakout Force, Bucket Cylinder: 5,283.1 lbs.
      • Breakout Force, Lift Cylinder: 3,439.6 lbs.
      • Rated Operating Load, 50% Tip: 1,995.2 lbs.

    • Power Train:
      • Travel Speed, Low Range: 7.8 MPH
      • Travel Speed, High Range: 11.4 MPH

    • Engine:
      • Engine Model: N844LTA
      • Air Intake: Turbocharged Aftercooled with External EGR
      • Fuel Injection: HPCR Direct
      • Power Output: 64HP
      • Rated Speed: 2800 RPM
      • Peak Torque: 153.5 ft-lb
      • Displacement: 134.3in³

  • Overall Dimensions:
    • Length: 135in
    • Width: 69.1in
    • Height: 78.7in
    • Weight: 6,459.6 Lbs.

  • Location: Western USA
