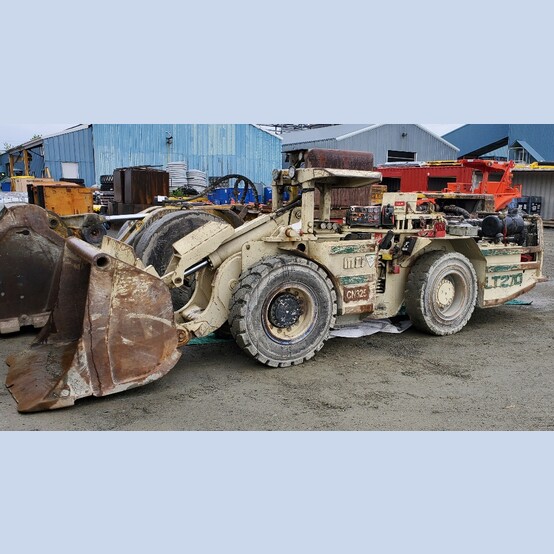

MTI LT270 1.5 Yard Scooptram

  • Make: MTI
  • Model: LT270
  • Size: 1.5 Yard
  • Hours: 3,155.6
  • Condition: Used, Reported in Good Condition
  • Canopy: ROPS
  • Midship is Tight

  • General Model Specifications:

    • Capacities:
      • Tramming Capacity: 2,722 kgs (6,000 lbs)
      • Hydraulic Breakout Force Lift: 6,043 kgs (13,322 lbs)
      • Hydraulic Breakout Force Tilt: 5,372 kgs (11,844 lbs)
      • SAE breakout force: 4,735 kgs (10,441 lbs)
      • SAE static Tipping Load: 9,662 kgs (21,301 lbs)
      • Bucket: 1.5yd³ (1.2m³)

    • Overall Dimensions
      • Tramming Length: 6,365mm (20ft 10.5in)
      • Width Overall: 1,514mm (4ft 11.5in)
      • Height (Canopy): 1,935 mm (6ft 4in) Length:
      • Rear Axle to Bumper: 2,288mm (7ft 6in)
      • Centre Hinge to Rear Axle: 1,041mm (3ft 5in)
      • Centre Hinge to Front Axle: 1,045mm (3ft 5in)
      • Reach: 1,218mm (4ft)
      • Height (Top of Hood): 1,493mm (4ft 10.75in)
      • Height Ground Clearance: 204mm (8in)
      • Height Dump Clearance: 1,111mm (3ft 7.5in)
      • Height Bucket Pin: 2,075mm (6ft 10in)
      • Height Bucket Raised: 3,266mm (10ft 8.5in)
      • Maximum Width RF: 1,422mm (4ft 8in)
      • Outside Radius: 4,374mm (14ft 4in)
      • Inside Radius: 2,380mm (6ft 17.75in)
      • Turn Angle: 37° Degrees
      • Dump Angle: 38° Degrees
      • Roll Back Angle:  50° Degrees

  • Location: Eastern Canada
