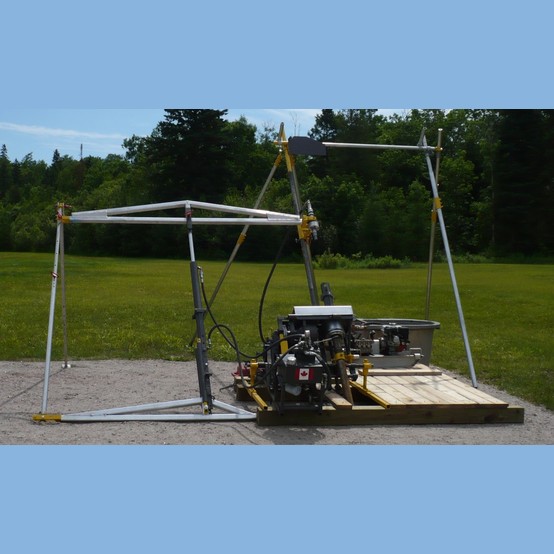

2020 MPX Prospector Man Portable Drill

Prime Mover Module:

• Aluminum Skid
• Honda GX630
• 22 HP Gas Engine
• Electric Start 25L Fuel Tank
• Lift Handler
• 12V Battery
• Guards
• Weight: 55 kgs.

Hydraulic Power Pack Module:

• Aluminum Skid
• Variable Displacement Pump for Drilling and Fast Rod Tripping
• Aluminum Reservoir
• 3 Way Directional Valve
• Gauges
• In-Tank Filters
• Lift Rings and Guards
• Parker Hydraulics
• Weight: 45 kgs.

Rotary Drive Module:

• Aluminum Frame
• Balanced Lift Rings
• Belt Drive for High Performance Coring
• Chain Drive for High Performance Boring (Casing)
• Variable Rotation from 150-1800 RPM
• Weight: 45 kgs.

Superstructure:

• -90 to -40 Degree Fully Adjustable Base
• AW/BW Casing Centralizer
• Steel Feed Frame
• Aluminum Tripod/Rod Rack Assembly
• 6 Meter Feed Stroke
• Adjustable Hydraulic Cylinder Frame

Other Components:

• 4 x 1.5 Meter AW Steel Drive Rods (Keyed)
• AW Ball Type Rod Holder C/W Lift Handle
• AW Ball Type Ball Puller
• MPX High Speed Water Swivel C/W Hydraulic Hose and Fittings
• AW Lowering Iron C/W Handle
• Parts and Operating Manual
• 3 in. Tool Box: Includes all Tools to Set Up Drill, Maintain & Operate

Supply Pump:

• Aluminum Base Skid with Balanced Lift Handles
• Honda GX200 Engine C/W 6:1 Gear Reduction
• Triplex T41 General Pump
• 12 GPM
• Rated 900 PSI
• 5m x 1 in. Suction Line
• Foot Valve
• Camlock Fittings
• Safety Guards
• Weight: 35 kgs.

Flush Pump:

• Aluminum Base Skid with Balanced Lift Handles
• Honda GX200 Engines C/W 6:1 Gear Reduction
• Triplex T41 General Pump
• 12 GPM
• Rated 900 PSI
• 5m x 1 in. Suction Line
• Foot Valve
• Safety Guards
• 6 Meter Water Swivel Hose
• Bi-Cycle Assembly C/W Shut-Off Valves
• Pressure Relief Valve
• Pressure Gauge
• All Fittings
• Weight: 40 kgs.

Drill Rods:

• 50 x 3.0 Meter AW Aluminum C/W AW Steel Rod Coupling – Weight: 6 kgs.
• 5 Meter AW Aluminum C/W AW Steel Rod Coupling – Weight: 3 kgs.

Subs:

• AW Rod Box to AW Casing Pin
• AW Rod Box to BW Casing Pin

Casing:

• 5 - .3 Meter AW
• 5 - .6 Meter AW
• 10 - 1.5 Meter AW
• 5 - .6 Meter BW
• 10 - 1.5 Meter BW

Core Barrel and Down Hole Tools:

• 2 - .6 Meter Starter Barrel, Outer Tube
• 2 - .6 Meter Starter Barrel, Inner Tube
• 2 – 3 Meter Core Barrel to AWJ Rod Connection C-20-02-810
• 2 – Sub – AW Rod Pin to AWJ Rod Pin
• 4 – 3 Meter Inner Tube C-20-48-530
• 4 – 3 Meter Outer Tube C-20-48-550
• 2 - Full Grip Wrench, Inner Tube
• 2 – Full Grip Wrench, Outer Tube
• MRX Water Swivel (Spare) 18/0 with CR42mm Pin
• Sub – CR42mm Box to AW Rod Pin
• 12 – Core Lifters Case C-20-48-831
• 24 – Core Lifters C-20-48-833
• Spare Parts Kit for Head Assembly

Water Line:

• 10 - ¾ in. x 25 Meter Complete with Fitting (No Kink) WP600 PSI

Diamond Products: (LTK48 Diamond Impregnated Core Bits)

• 6 - #9 Matrix
• 6 - #10 Matric
• 4 – Reaming Shell
• 4 – AW Casing Shoe
• 2 – BW Casing Shoe

• Location: Eastern Canada
