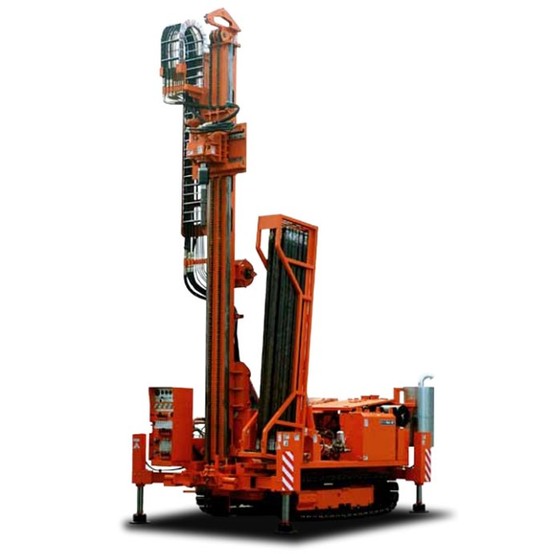

MOLF 50P DRILL RIG For Geothermal, Water well, Micro pile, and Foundation.

  •  Specification:
    • Dimensions
      • Working Height: 24ft. 3in. (7.4m)
      • Shipping Width: 6ft. 9in. (2m)
      • Shipping Height: 8ft. 3in. (2.5m)
      • Shipping Weight: 17,640 lbs (8 ton)
    • Engine
      • Model: Cummins QSB4.5-P
      • Max. Torque: 130 HP/2,200 rpm (97kW/2,200rpm)
    • Top Head Rotation
      • RPM
        • 80 cc/rev, Single Pump: 28 - 57
        • 80 + 80 cc/rev, Double Pump: 58 - 116
      • Torque
        • 1st: Max. 2,600 ft-lb (3,530 N,m)
        • 2nd: 1,300 ft-lb (1,765 N-m)
    • Feed System
      • Travel Stroke
        • Head: 14ft. 6in. (4.5m)
      • Pull-Back Capacity: 22,000 lb (10 ton)
      • Pull-Down Capacity: 11,020 lb (5 ton)
      • Head Side Shift: 15in. (380mm)
    • Rod Rack
      • Capacity: 2.8in. x 10ft. (74 mm x 3m) x 40 ea
    • Drill Pipe & Casing
      • Drill Pipe
        • Max. Length: 11ft. 4in. (3.5m)
        • Max. Diameter: 3.5in. (ø 89mm)
      • Casing
        • Max. Length: 11ft. 4in. (3.5m)
        • Max. Diameter: 5in. (ø 127mm)
    • Pulling Clearance: 14ft. 6in. (4.5m)
    • Winch
      • Main
        • Spool Capacity: 65ft. of 0.4in. (20m, ø10mm)
        • Line Pull: 6,610 lb (3 ton)
    • Drill Pipe Breakout: 13,230 lb (6 ton)
    • Mud Pump
      • Model: DMP3-400
      • Capacity: 125 GPM (500 LPM)
      • Max. Pressure: 500 psi (35 bar)
      • Type: Double Piston
    • Hydraulic Holder: Single Clamp
    • Drilling Capacity: 8in. x 650ft. (200m)
    • Oil Tank Capacity: 43.5 Gallon (165 L)
    • Fuel Tank Capacity: 60.5 Gallon (230 L)
  • 1052 Hours
  • Complete with

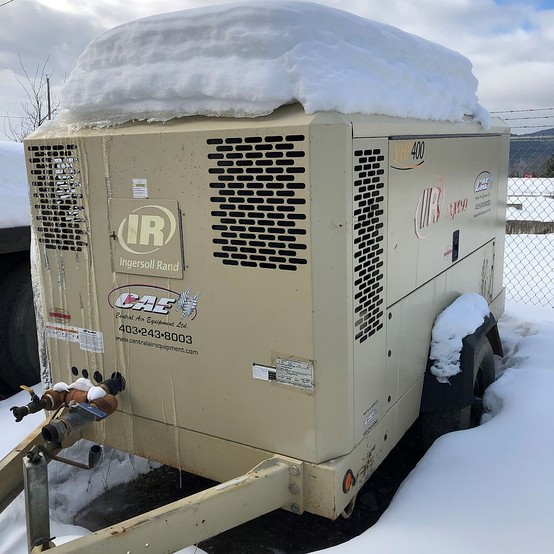

    • Ingersoll Rand Portable Air Compressor
      • 570 Hours
  • Location: Western Canada
