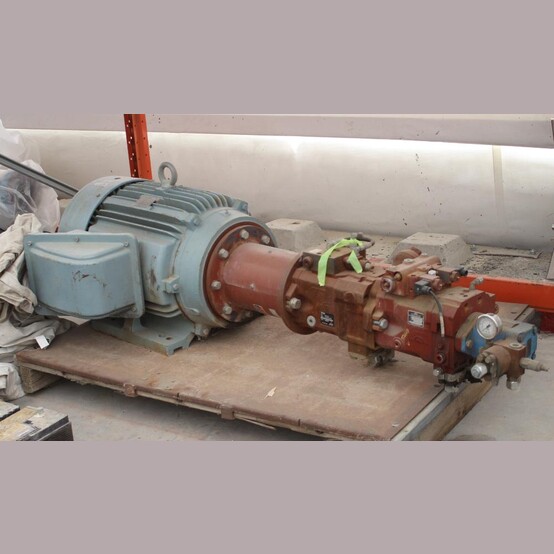

Linde HPV-HPR Piston Pump

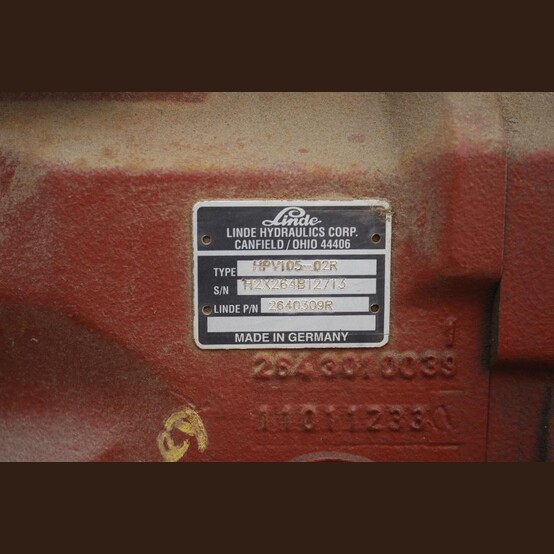

  • Make: Linde
  • Model: HPV105-02R
  • Type: Variable Pump, Closed Circuit Operation
  • Rotation: Right Hand
  • Max Displacement: 105cm³/rev
  • Max Operating Speed: 3200 RPM
  • Min Operating Speed: 500 RPM
  • Nominal Pressure: 450 bar
  • Max Pressure: 500 bar
  • Torque: 719Nm
  • Coupled to HPR135-02 Pump

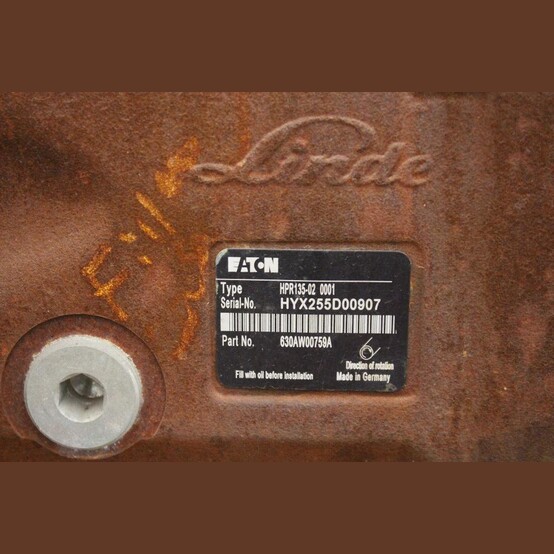

    • Make: Linde
    • Model: HPR135-02
    • Type: Variable Pump, Open Loop Operation
    • Max Displacement: 135.7c³/rev
    • Max Operating Speed: 2300 RPM
    • Volume Flow: 312.1 l/min
    • Max Pressure: 500 bar
    • Torque: 907 Nm

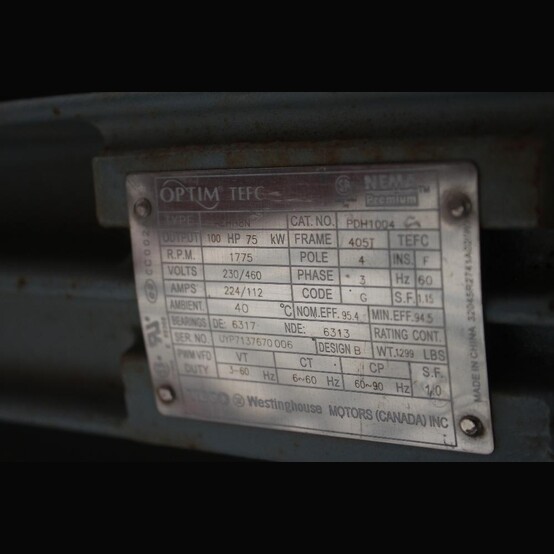

  • Drive: Electric Motor
    • Make: TECP Westinghouse
    • Model: AEHH8N
    • Power Output: 100HP (75kW)
    • RPM: 1775
    • Voltage: 230/460 Volt
    • Amperage: 224/112 Amps
    • Frequency: 60Hz
    • Phase: 3-Phase

  • Location: Western Canada
