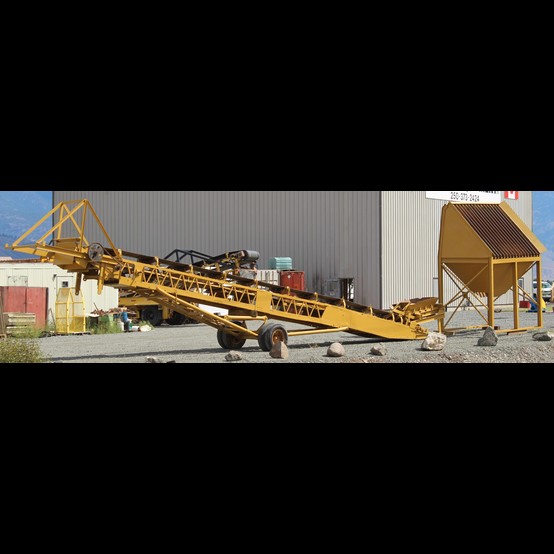

Kolman 101 Portable Screening Plant ID: 87161


  • Self-Supported 10 Yard Feed Hopper.
    • 10’ X 10’ Sloped Grizzly.
    • ¾” X 3” Grizzly Bars With 1¼” Round Stock On Top (6” spacing).
    • 21” Wide Adjustable Discharge Gate.
  • 24” Wide X 5’ Long Plate Feeder C/W 3/8” Wear Plate.
    • Chain Driven Off Conveyor Tail Pulley.
  • 30” X 50’ Long Screen Feed Conveyor.
    • 24” Deep Covered Truss Frame.
    • 16” Plain Steel Head Pulley.
    • 15” Self Cleaning Tail Pulley.
    • 5” Dia. - 20° Idlers On 4.5’ Spacing.
    • 3 Ply Belting, 1/8” Top, 1/32” Back.
    • Chain Driven By a 20 HP Reliance Electric Motor 220/440 Volt.
  • Kolman Model DC 90-54 - 2 Deck Wash Screen.
    • 4.5’ Wide X 9’ Long.
    • Belt Driven By a 7.5 hp motor.
    • Top Deck - 7/8” Cloth C/W 5 Spray Bars (With Flow Control Valve).
    • Bottom Deck - 1/4” Cloth C/W 4 Spray Bars (With Flow Control Valve).
    • Fully Enclosed Fines Unders Hopper With 2 – 10” Dia. Discharge Spouts.
    • 5’ Wide X 6’ Long Overs End discharge chute.
    • Overhead Extended Screen support.
  • All On Single Axle Dual Wheel Chassis.
  • 8.25 – 20 Tires.
  • Manual Raise.
Sold

Image 1 of 6

Manufacturer:Kolman

Kolman
