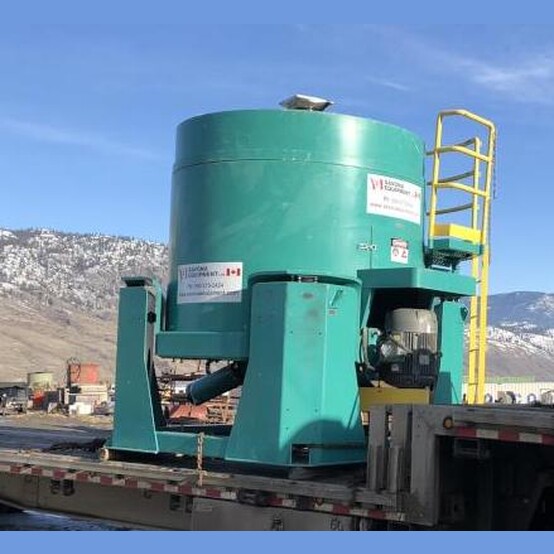

Knelson KC-XD48 Concentrator

  • Make: Knelson
  • Model: KC-XD48
  • Condition: Good, Used
  • Complete With:
    • Cast Urethane G5 Concentrating Cone.
    • Linatex Lining.
    • Woods HTD Drive
    • Endress-Hauser Promag with Electro Magnetic
    • Flow Meter Model 10W1H
    • QUADRA-POWR II Actuator Series QPIC/S14
    • Knelson ICS Independent Control System

  • Drive:
    • Baldor 40HP Super-E Premium Efficiency Electric Motor
    • RPM: 1775 RPM
    • Voltage: 460V
    • Frequency: 60 Hz
    • Phase: 3-Phase

  • General Model Specifications
    • Feed Capacity: 220-440 Tons/Hour (200-400 Tonnes/Hour) Solids
    • Typical Fluidization Water Requirement: 180-270 US GPM (41-63m³/hr)
    • Feed Density: 0-75% Solids/Weight
    • Max. Volumetric Throughput: 2400 US GPM (545m³/hr)
    • Feed Size:
      • Max: 0.25" (6mm)
      • Recommended: Minus 10 Mesh (1.7mm)
    • Typical Concentration Cycle Duration:
      • Hard Rock: 0.5-4 Hours
      • Placer: 4-12 Hours
    • Typical Flush Cycle Duration: 2-3 Minutes
    • Approx. Concentrate Volume/Weight: 1220 in³ (20L)/ 100-110 Lbs (45-50 Kgs)

  • Overall Dimensions:
    • Length: 115"
    • Width: 108.5"
    • Height: 114"
    • Weight: 12,500 Lbs

  • Location: Western USA
