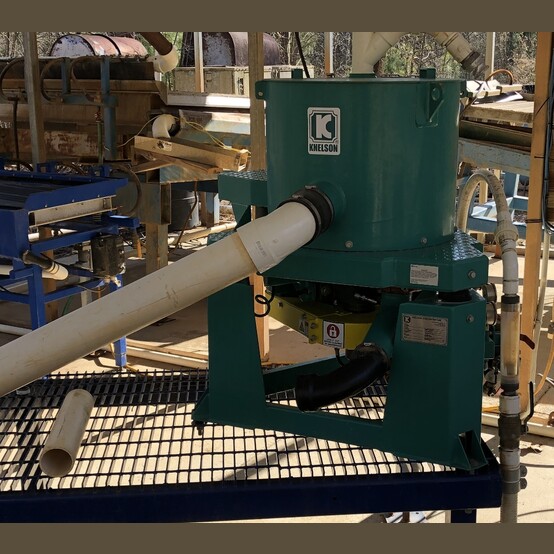

Knelson KC-CD12VG Concentrator

  • Make: Knelson
  • Model: KC-CD12VG
  • Year: 2013
  • Condition: Good, Used
  • Style: Semi-Continuous Gravity Concentrator
  • Discharge: Central
  • Linatex Discharge Wear Cone
  • Polyurethane Concentrating Cone

  • General Model Specifications:
    • Solids Feed Capacity: 6-20 Tonnes/hr (6.6-22 Tons/hr)
    • Fluidization Water Required: 4.1-5.7m³/hr (18-25 US GPM)
    • Maximum Volumetric Throughput: 27 m³/hr (120 US GPM)
    • Active Capture Area: 1,044 cm² (162 in²)
    • Feed Size:
      • Max: 6mm (1/4")
      • Recommended: 1.7mm (10 mesh)
    • Concentrate Volume: 1.6L (95 in³)
    • Concentrate Weight: 2.5-4.5 Kg (6-10 Lbs)
    • Concentrator Net Weight: 332 kg (730 Lbs)
    • Motor Power Required: 2.3-3.8kW (3-5 HP)

  • Motor: Baldor Reliance Super-E
    • 5 HP Motor
    • 1750 RPM
    • 460 Volt
    • 3 Phase
    • 60 Hz
    • 184T Frame

  • Overall Dimensions:
    • Approx. Length: 952mm (37 7/16")
    • Approx. Width: 952mm (37 7/16")
    • Approx. Height: 1148mm (45 3/16")
    • Weight: 355 Kg (782.5 Lbs)

  • Location: USA
