• Engine:
    • Type: DEUTZ TCD 2013 L4 2V.
    • Rated Output: 129 kW.
    • Fuel Tank Capacity: 365 l.
    • Sound power level LWA: 114 dB (A).
  • Hydraulic System:
    • 1st Circuit: 150 load-sensing l/min.
    • 2nd Circuit: 150 load-sensing l/min.
    • 3rd Circuit: 30 konstant l/min.
    • 4th Circuit: 20 konstant l/min.
    • 5th Circuit: 20 konstant l/min.
    • Operating Pressure max.: 320 bar.
    • Hydr. Oil Tank Capacity: 500 l.
  • Crawler Base: B1:
    • Tractive Force max.: 110 kN.
    • Crawler Speed: 2,4 km/h.
    • 3-rib Grouser Plates: 400 mm.
    • Ground Clearance: 350 mm.
    • Ground Pressure: 6,8 N/cm².
  • Drill Mast: 202:
    • Total Length: 5700 mm.
    • Feed Force: 100 kN.
    • Retraction Force: 100 kN.
    • Feed Rate: 6,0 / 13,2 m/min.
    • Retraction Rate: 6,0 / 13,2 m/min.
    • Fast Feed Rate: 25,2 / 50,4 m/min.
    • Fast Retraction Rate: 25,2 / 50,4 m/min.
  • Drill Heads:
    • Rotary Heads.
    • Hydraulic Drifters.
    • Double Head Drilling Units.

View more Quarry Drills

Sold

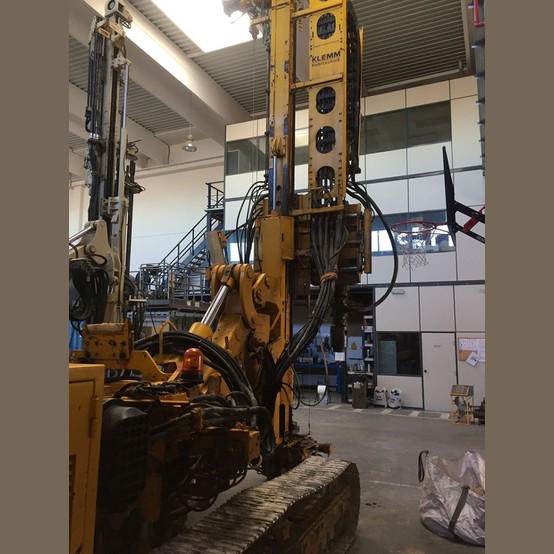

Image 1 of 5

Manufacturer:KLEMM Bohrtechnik
