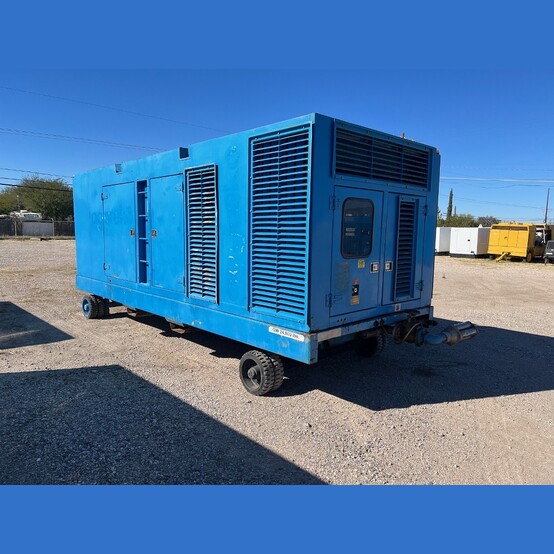

Ingersoll Rand NHP1500WCU Air Compressor

• Make: Ingersoll Rand
• Model: NHP1500WCU
• Size: 1500 CFM
• Type: 2-Stage Oil-Free Rotary Screw
• Portable/Stationary: Portable


• Max CFM: 1600CFM@100PSI (1500CFM@150PSI)
• Operating PSI: 60-150 PSI
• Outlet Discharge: 3" Spud Mounted on One-Way Gate Valve

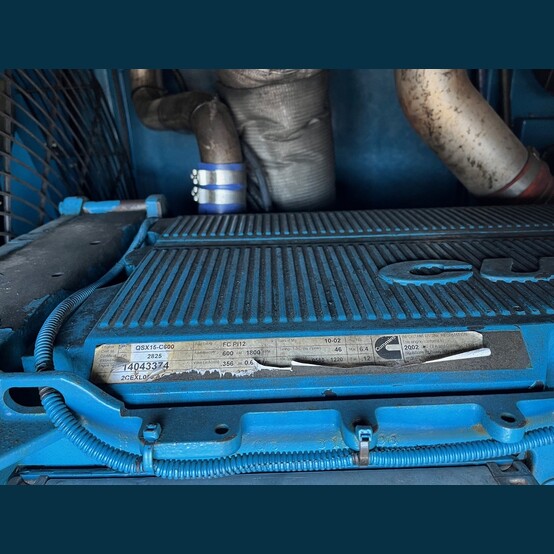

• Drive: Cummins QSX-15 Diesel Driven

  • Output: 600HP
  • RPM:
    • No Load: 1200 RPM
    • Full Load: 1800 RPM
  • EPA Tier 2-Stage 1 Emissions Certified


• Running Gear:
  • Tire Size: 18x9
  • Max Towing Speed: 15MPH (24km/h)
  • Inflation Pressure: Solid


• Overall Dimensions:
  • Length: 19' 4"
  • Width: 7' 1"
  • Height: 8' 4"
  • Weight: 22,980 Lbs.


• Additional Information
  • Fuel Tank Capacity: 270 Gallons (8 to 9 hours of Operation)
  • Unit Has Four Point Lift
  • After-Cooled to 15°F Able Ambient. A Separate Aftercooler is Not Normally Needed
  • Unit Can Be Setup For Auto-Start and Auto-Shutdown
  • Unit is Axle/Wheel Mounted. Wheels Are Not for Highway Use
  • Two 20A, 10V Circuits Are Required For Cold Weather Operation
  • Engine Full Service; Every 250 Hours - Compressor Oil 12 Months or 8,000 Hours.


• Location: Southwest USA
