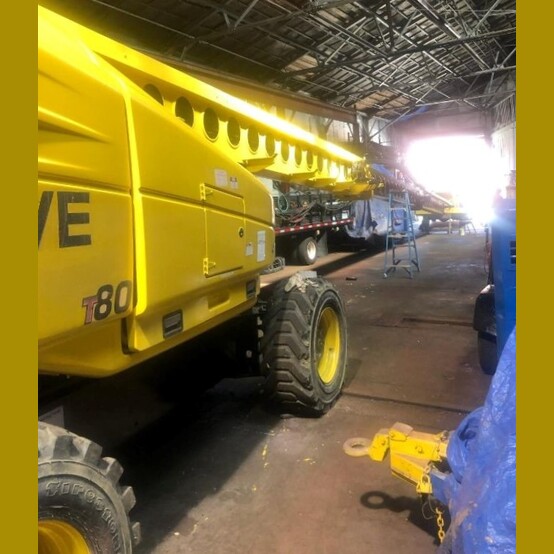

Grove 80ft Boom Lift

• Make: Grove
• Model: T80
• Type: Telescopic
• Year: 1999
• Hours: Approx. 4,500 Hours
• Condition: Used, Reported in Good Condition
• Size: 80ft
• Engine: Cummins Diesel Engine


• General Model Specifications:
  • Platform:
    • Working Height: 86ft (26.2m)
    • Platform Height: 80ft (24.4m)
    • Horizontal Reach: 70ft (21.34m)
    • Platform Capacity: 600lbs (272kg)
  • Performance:
    • Lift Speed: 55 sec
    • Drive Speed: 4 mph (6.44 km/h)
    • Tire Size: 385/65D 22.5
    • Turning Radius Inside (4WS): 7ft 4in (2.23m)
    • Turning Radius Outside (4WS) 15ft 1in (4.59m)
  • Hydraulics:
    • Reservoir Capacity: 45gal (170.3L)
    • Hydraulic Pump Type: Piston
    • Auxiliary Power: 12 VDC
  • Dimensions:
    • Platform Size (Steel): 36in x 94in (0.91m x 2.38m)
    • Overall Length: 40ft (12.2m)
    • Overall Width: 8ft 6in (2.59m)
    • Overall Height (Stowed): 9ft 7in (2.9m)
    • Wheelbase: 10ft (3.0m)
    • Ground Clearance: 1ft (0.3m)


• Location: Eastern USA
