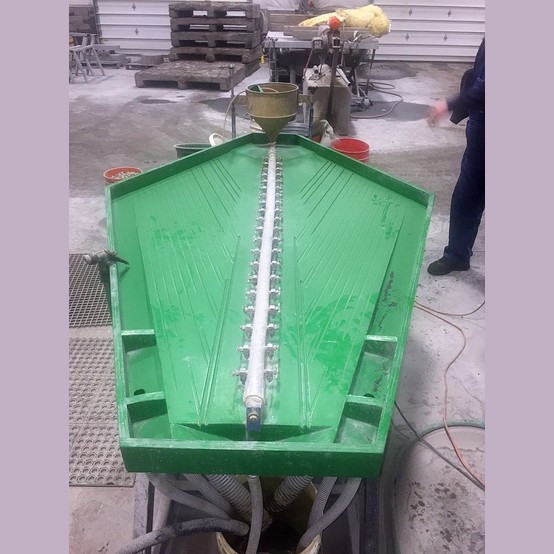

• Gemini Concentrating Table.
    • Model: GT250.
      • Nominal feed rate: 250 lbs/hr (114 kg/hr).
      • Maximum feed rate: 300 lbs/hr (136 kg/hr).
      • Recommended feed size: Minus 20 mesh <833 microns.
      • Maximum feed size: Minus 14 mesh <1,168 microns.
      • Maximum water usage: 6 US gallons/min. (1.4 m³/hr).
    • Equipped with:
      • 1 hp motor.
    • Features:
      • 96% heavy mineral recovery with a 90:1 weight reduction.
      • Wear resistant operating surface utilizing a hard wearing GRP.
      • Laminated beam super structure for added strength and stability.
      • Unitized steel frame manufacted from heavy duty 11 gauge tubular steel.
      • Minimal floor space requirements.
      • Less energy consumption than comparable equipment
      • Faster than competing tables.



  • Shipping information:
    • Dimensions (L x W x H):
      • 87 in. x 56 in. x 50 in.
      • 2.21 m x 1.42 m x 1.27 m.
    • Weight:
      • 680 lbs / 308 kg.



Please contact us for more information.
