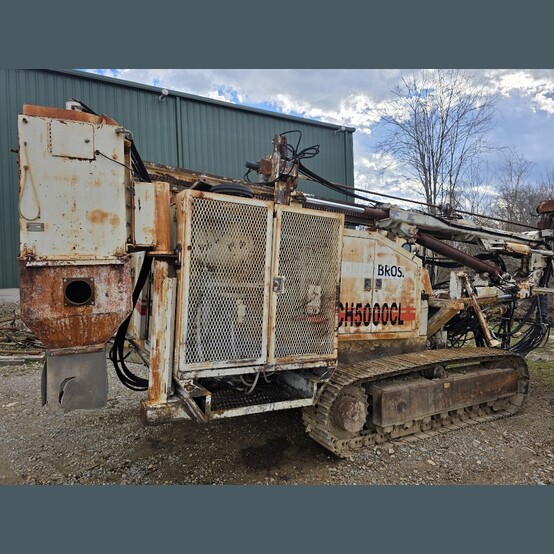

Gardner Denver Reedrill SCH5000CL Drill

• Make: Reedrill - Gardner Denver
• Model: Hydra-Trac SCH5000CL
• Type: Quarry Drill
• Year: 1996
• Hours: 8,316 Hours on Meter
• Condition: Used Condition
• Rock Drill: HPR2 Drifter

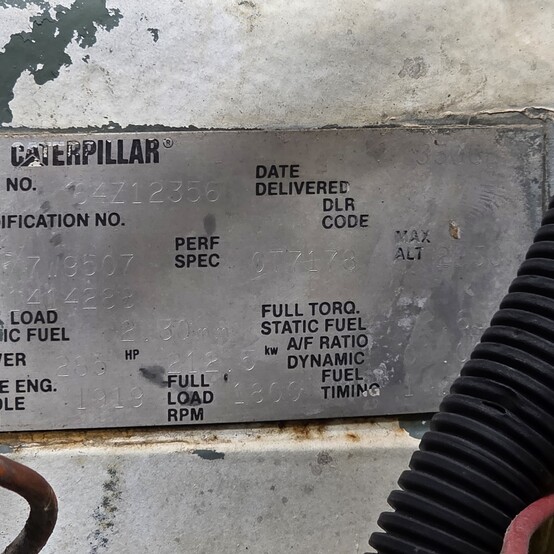

• Engine: Caterpillar 3606 Diesel Engine


• General Model Specifications:
  • Engine: CAT 3606 Diesel Engine - Water-Cooled Turbocharged and After-Cooled
    • Power Output: 300BHP @ 1800RPM
    • Cylinders: (6) Cylinders
  • Traction Drive/Frame System:
    • Hydraulic Motor Driven
    • Grousers: 15in (38cm)
    • Track Oscillation: ±16°
    • Max Tramming Speed: 2.5mph (4km/h)
  • Boom System:
    • Boom: 9ft (2.74m) Swing Boom
    • Drill Positioners
    • Feed Extension: 3ft (0.91m)
    • Offset Feed Table
  • Compressor: 350 CFM Gardner Denver Rota Screw Air Compressor
  • Rock Drill: HPR2
    • Power Output: 36.4HP (27kW)
    • Torque: 1,000lb/ft
    • Max Rotation Speed: 150RPM
  • Feed System: HUFH20 Steel Channel Chain Feed
    • Drill Steel: 20ft (6.1m)
  • Rod Charger: Linear Rod Changer
    • Capacity: (4) 20ft 2in Round 51 Series Rods
  • Dust Collector
  • Cab: FOPS Swing Cab
  • Overall Shipping Dimensions:
    • Length: 32.3ft (9850mm)
    • Width: 8.5ft (2590mm)
    • Height: 11.1ft (3380mm)
    • Weight, with Standard Components: 45,000lbs (20,410kg)


• Location: Eastern USA
