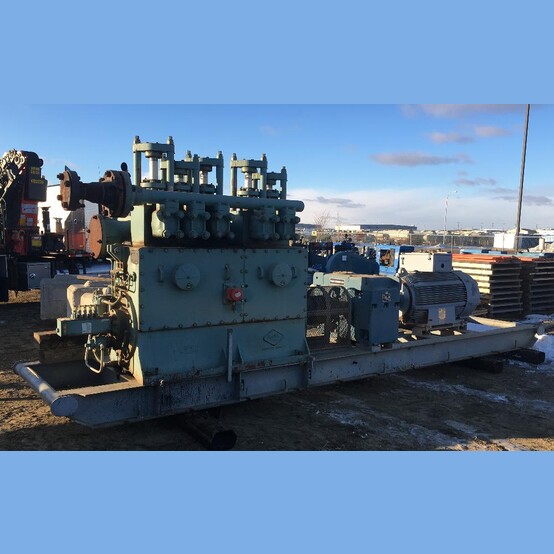

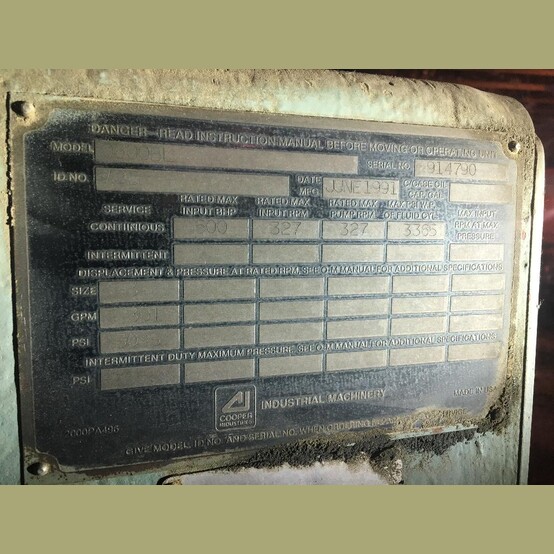

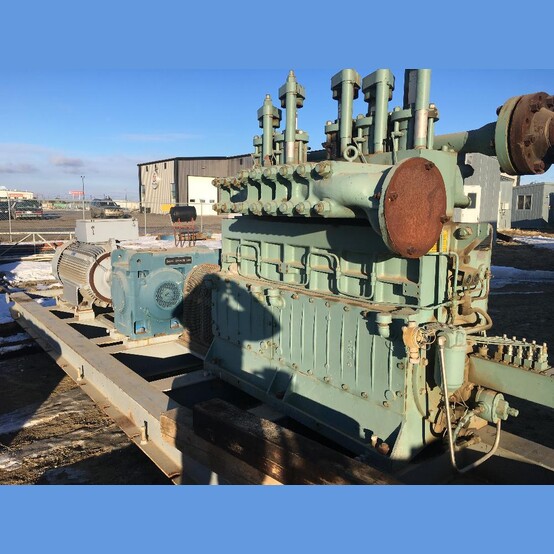

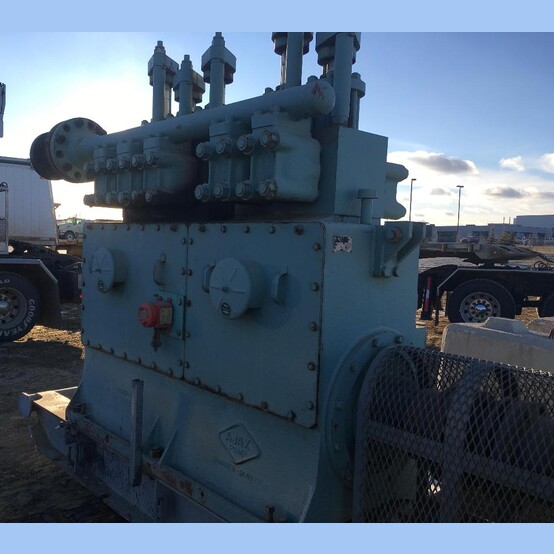

Gardner Denver AJAX Q600 Plunger Pump Skid

• Make: Gardner-Denver AJAX Q600
• Model: 0600BL
• Year: 1991
• Condition: Unused, Installed in Plant as Critical Spare, Never Used
• Type: Plunger Pump
• Style: Quintuplex
• Plunger: 3in Ceramic
• Number of Plungers: 5
• Plunger Load: 21,800 Lbs.
• Flow Rate: 301 GPM (1,640m³/Day)
• Discharge Rating: 3,085 PSI (21,286kPa)

• Max Pressure: 3,365 PSI
• Max Input RPM: 327 RPM

• Max HP Input: 600HP

• Suction Size: 8in - 150#
• Discharge Size: 6in Sch 160 Pipe
• Fluid End Material: All Aluminum Bronze

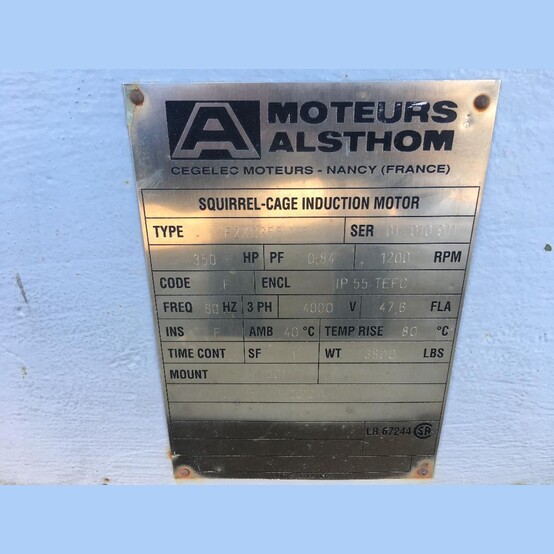

• Drive: Squirrel Cage Induction Motor
  • Make: Moteurs Alsthom
  • Model: F2XC355 M6
  • Power Output: 350 HP
  • RPM: 1200 RPM
  • Voltage: 4000 Volt
  • Amperage: 47.6 Amps
  • Frequency: 60Hz
  • Phase: 3-Phase

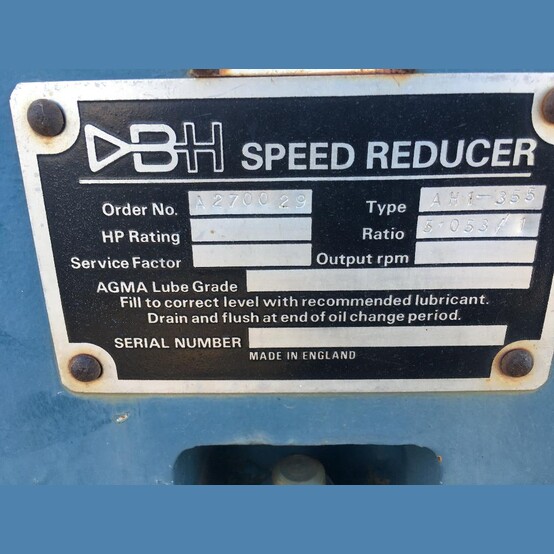

• Gearbox: Speed Reducer
  • Make: David Brown
  • Model: AH1-355
  • Ratio: 5.053:1


• Location: Western Canada
