FLSmidth gMAX Wellhead Turndown Desander Hydrocyclone

• Make: FLSmidth
• Model: SM-BTH

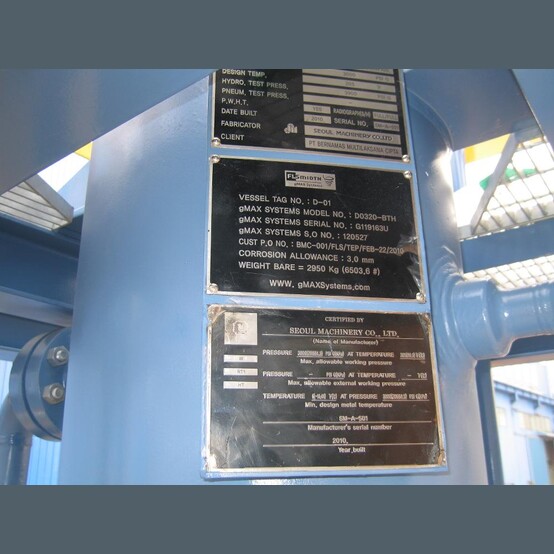

  • gMax System Model: D0320-BTH
  • gMax System Model (Accumulator): A2616-BTH
  • Installed Cyclone Model(s): gMAX3-3133
• Type: Desander Hydrocyclone
• Style: Wellhead Turndown
• Year: 2010
• Condition: Used Condition
• Upstream and Downstream Sample Points for Testing Contents

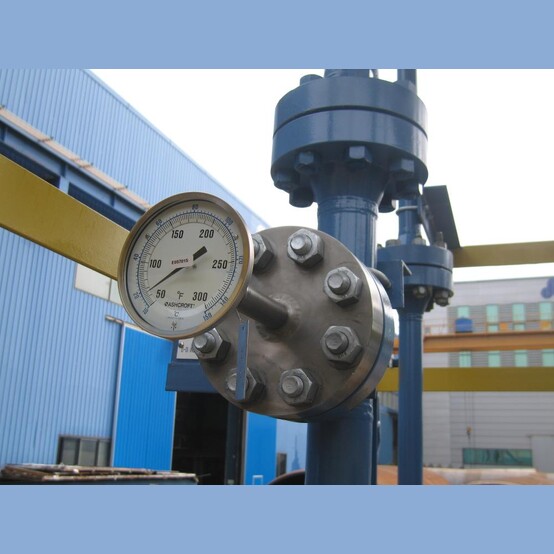

• Standard Instrumentation such as Pressure Gauge, Pressure Differential Indicator, Temperature Gauge Included

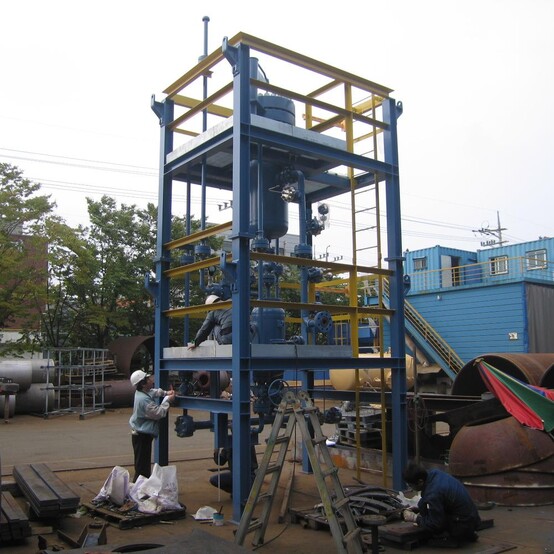

• Skid Mounted with Stand


• General Model Specifications:

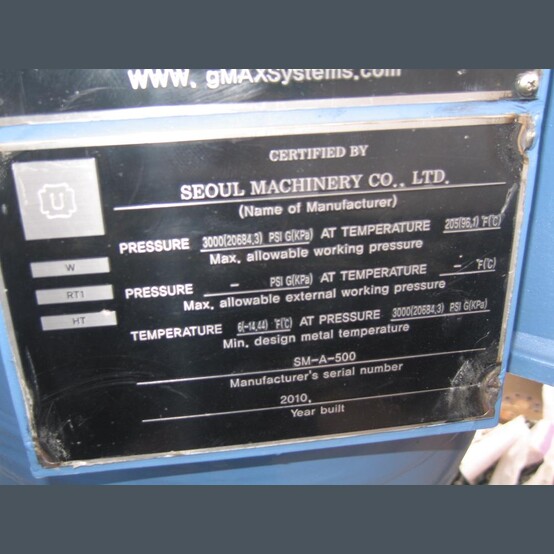

  • Operating Pressure (Max): 3,000 / 5000 psig
  • Test Pressure (per Code): 4,500 / 7500 psig
  • Operating Temperature: -20° to 205° F
  • Liquid Flow Rates: 5,000 BPD
  • Gas Flow Rates: 30 MMSCFD
  • Total gMAX Cyclones - 7 Units
    • Total Compartment/Chambers: 3 Compartments
      • Compartment A: 1 Liner
      • Compartment B: 2 Liners
      • Compartment C: 4 Liners


• Overall Dimensions:
  • Length: 3.3m
  • Width: 2.3m
  • Height: 7.0m
  • Weight: 8,800 kg


• Location: Indonesia
