FLSmidth 36 inch Overland Conveyor System ID: 181653


  • 36 in. wide x Approx. 3200 ft. Long
  • 73 Stands Constructed of Steel Square Tubing Mounted in One Piece Concrete Piers
  • 36 Stands Constructed of Steel Square Tubing Mounted on One Piece 6 in. Steel I-Beam Skid Bases
  • 107 Stands Constructed of Steel Round Pipe Mounted in One Piece Concrete Piers
  • 20 Stands Constructed of Square Tubing Verticals with Cross Bracing Sections Mounted on 10 ft. long 6 in. Square Tubing Skid Bases
  • Total = 441 Stands

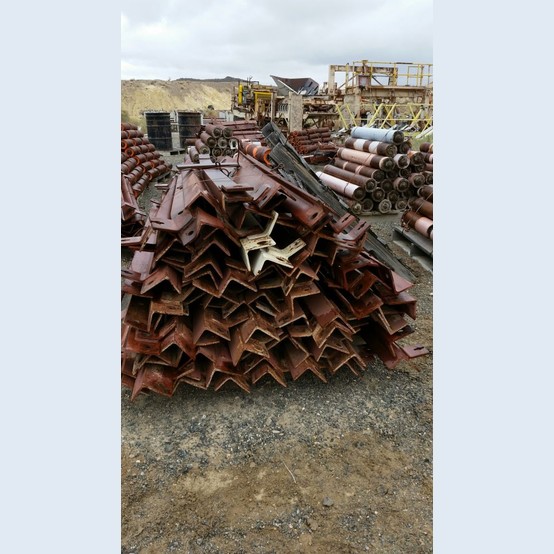

  • 97 Steel Fabricated X Braces Constructed of Angle Iron Braces with Drilled and Bolt Point Connections and 4 Pallets of Straight Angle Iron Braces with Drilled Ends. X Braces and Angle Iron Braces Designed for use with the Quantity of 215 Square Tubing Stands Listed Above. One X Brace and Two Straight Braces Connect two Stands Creating One 5 ft. Long Free Standing Conveyor Support that Accommodates Two Trough Idlers on 4 ft. Centers.
  • Five Reels of Steel Cable for Overland Conveyor Idler Support (Footage Unconfirmed).

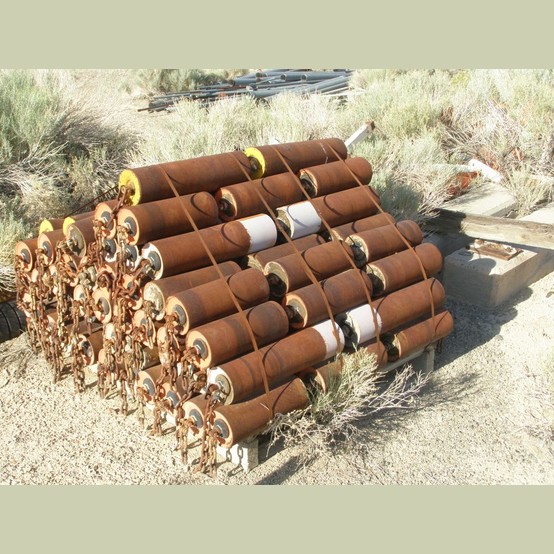

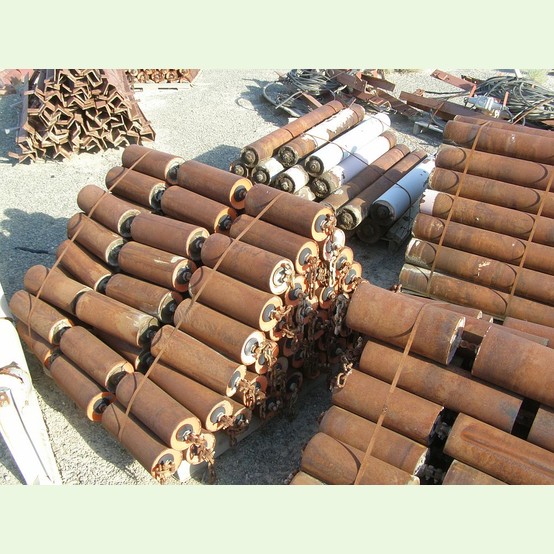

  • Approximately 630 - 36 in. Wide Conveyor Trough Idlers
  • Approximately 250 - 36 in. Wide Flat Return Idlers
  • Several Trough & Flat Return Belt Alignment Training Idlers in Swivel Frames
  • Seimens 200 HP 1175 RPM Electric Motor Coupled to Paramax 7 Right Angle Speed Reducer
  • One 36 in. Wide x 25 ft. Long Truss Frame Cross Conveyor with 20 HP Electric Motor, V-Belt Drive & Guard, Falk Gear Box, Rubber Belting.
  • One 60 in. Wide x 27 ft. Long I-Beam Frame Cross Conveyor with 60 HP Electric Motor, V-Belt Drive & Guard, Gear Box, Rubber Belting.
  • One 8 ft. x 40 ft. Steel Shipping Container Full of 36 in. Wide rough Idler Count is Included in the Above 630 Total
  • Electric Control Panel
  • Set of Plot Plan and Component Fabrication Blueprints
  • Location: Western USA
