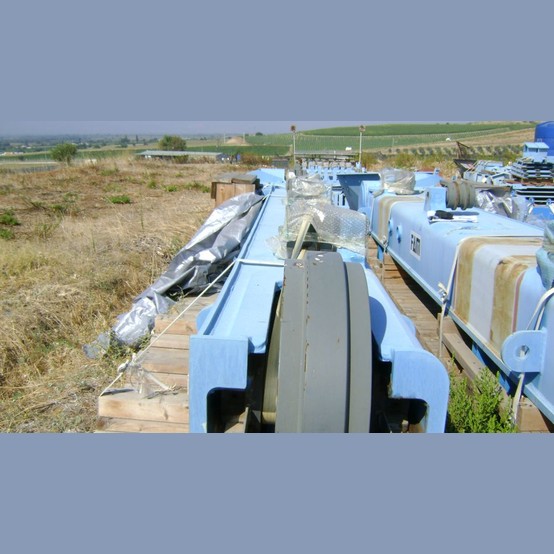

• Crawler mounted radial stacker.
  • Capacity of 476 dry metric tonnes/hr.
  • Never used/installed.
  • Main parameters:
    • Design capacity:
      • 476 t/hr. (dry).
      • 560 t/hr. (wet).
    • Density: 1.24 t/m³.
    • Slope during operation: 0 -  8%
      • Uphill in work direction.
      • Crawler drive downhill side.
    • Slope during normal transport: +/- 8%
      • Crawler drive downhill side.
    • Side slope during operation: 2%
    • Side slope during transport (discharge boom fixed): 8%
    • Discharge conveyor: 16 m long.
    • Slewing range: +/- 900
    • Max. discharge area (top of pile): 32 m.
    • Max. width of module: 45 m.
      • Slope angle 350, height 4 m.
    • Travel speed: 1-6 m/min.
    • Slewing speed: 2-15 m/min.
    • Weight out of operation: 110 t approx.
    • Additional weight of ramp: 7 t approx.
    • Max. weight in operation: 140 t approx.
    • Average ground pressure in operation: 12 t/m² approx.
    • Average ground pressure out of operation: 9 t/m² approx.
    • Minimal step: 0.3 m approx.
    • Height of machine: 7.2 m approx.
    • Width of machine: 9.5 m approx.
      • Boom in transport position.
    • Length of machine: 33 m.
      • Boom in transport position, without ramp.
