Technical Systems 30AOLM46-PTFC Chiller
- Make: Technical Systems
- Model: 30AOLM46-PTFC
- Condition: Used, Reported in Excellent Condition with Very Little Use
- Design Conditions: Ambient 95°F DB
- Solution: 40% EG
- Refrigerant: R-410a
- Heat Exchanger Design:
- Capacity: 60 Total Tons Heat Transfer at Conditions Below
- Economizer: Full Capacity @ 28°F Ambient
- Primary Chiller Side:
- Solution: 40% EG
- Entering Fluid Temp: 72°F
- Supply Fluid Temp: 62°F
- Flow Rate: 164 GPM
- Secondary Process Side
- Solution: Water
- Entering Fluid Temp: 74°F
- Supply Fluid Temp: 68°F
- Flow Rate: 238 GPM
- Pump Performance:
- Primary Side:
- Internal Fluid Pressure Drop: 75 Feet (Internal includes Entire Package Chiller, Economizer, Heat Exchanger, Piping, Control Valves, Etc.)
- Primary Pump Motor: 7.5HP @ 75ft TDH
- Secondary Process Side:
- Internal Fluid Pressure Drop: 30 Feet (Internal includes Secondary Side Pumping Trim and Heat Exchanger)
- Max External Fluid Pressure Drop: 30 Feet (Estimated Process Loop Losses)
- Pump Motor: 7.5HP @ 60ft TDH
- Primary Side:
- Electrical:
- Power Supply:
- Voltage: 575 Volt
- Frequency: 60Hz
- Phase: 3-Phase
- RLA Each: 93
- MCA Each: 97
- SCCR: 5,000 Amps
- MOCP Each: 125
- Power Supply:
- Overall Dimensions:
- Length: 220in
- Width 87.5in
- Height: 97in
- Shipping Weight: 10,258 lbs.
- Operating Weight: 10,731 lbs.

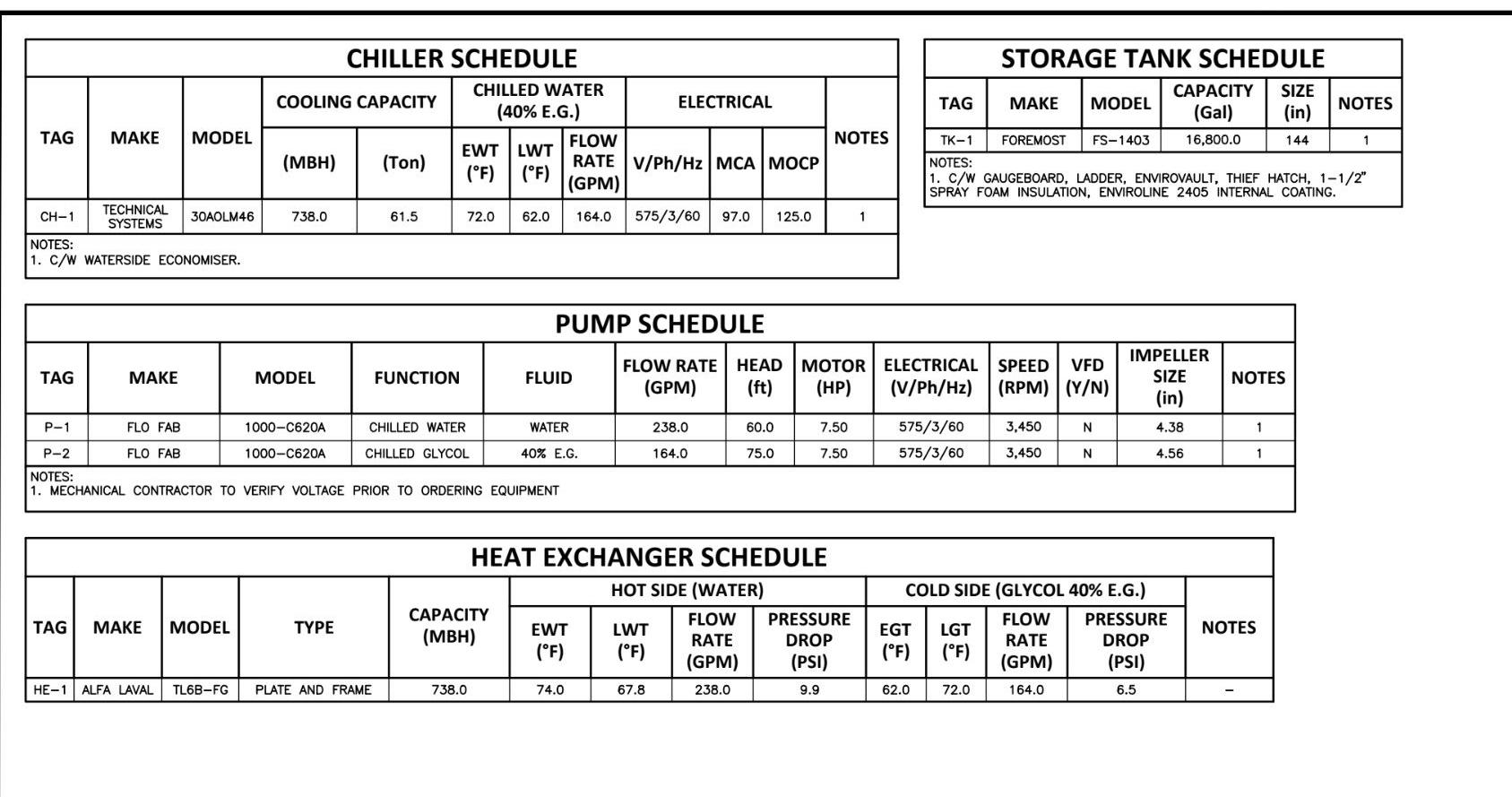

- View Spec Sheet Below
- Location: Western Canada
