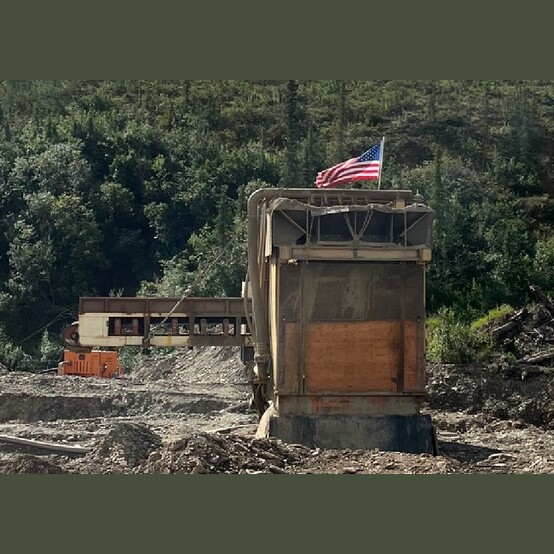

El-Jay 5ft x 16ft 2-Deck Gold Wash Plant

El-Jay 5ft x 16ft 2-Deck Gold Wash Plant ID: 1465129

Sold

Need this? Click here Have one? Click here

Make: El-Jay
Model: 5x16
Type: Gold Wash Plant
Condition: Used Condition
Throughput: 150 YPH
Deck Size: 5ft Wide x 16ft Long
Decks: Double Deck (2-Deck)
Equipped with Spray Bars
Hopper Dimensions: 8ft Wide x 8ft Long
Drive: Electric Motor
- Power Output: 30HP
- Voltage: 480 Volt
- Frequency: 60Hz
- Phase: 3-Phase
Conveyor: 42in Wide x 22ft Long - Extends 14ft Past Plant
- Drive: Electric Motor With Heavy-Duty T4 Dodge Shaft-Mount Gear Reducer
  - Power Output: 30HP
  - Voltage: 480 Volt
Sluice Runs: (2) Sets of Dual Sluice Runs
- 1st Set:
  - 3.5ft Wide x 8ft Long
  - 1in Angle Iron Riffles
  - Discharges to 6ft Flared Slick Plate
- 2nd Set:
  - 10ft Long Box - With (2) 4ft Wide x 10ft Long Runs
  - 9ft of Expanded Metal with Standard 3M Style Nomad Matting
  - Can be Independently Leveled with a Simple Screw Truck Binder - Held in Place By (2) Heavy-Duty Straps
Generator: 125kVA Multi-Quip Whisperwatt Diesel Generator
- Model: DCA125USI
- Year: 2012
- Hours: 19,600 Hours (Approx.)
- Rotating Speed: 1800 RPM
- Voltage: 480 Volt
- Frequency: 60Hz
- Phase: 3-Phase
- Engine: Isuzu 4HK1X
- Fuel Tank: 169 Gallon
- Enclosure: Ultra Silent Enclosure
- Cold Weather Package
Carrier: 33ft Tandem-Axle Semi Trailer
- Built Heavy-Duty for Mining
- Heavy-Duty 9ft Axles on a Walking Beam (No Springs)
- New Brakes - No Dynamiters, Do Not Need Air to Move
- New Tires
- With Dolly for Moving
Location: Alaska, USA
