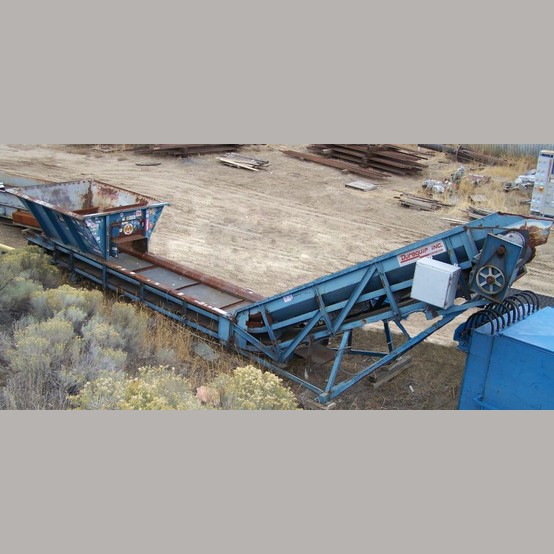

• 36 In. Wide Recycling/picking Conveyor.
    • 7 Ft. X 9 Ft. X 4 Ft. Deep Feed Hopper.
    • 24 Ft. Horizontal Section With 6 In. High Sides.
    • 15 Ft. Angle Section With 19 In. High Sides.
      • Discharge height approx. 8 feet.
  • 3 ½ In. Angle & 3 In. Channel Main Frame Construction.
  • Chain Link drive on either side of conveyor belt.
  • 3 In. wide Drag Bar Attached across Belt to chain link.
  • ½ In. Thick Belting.
  • 2 In. Angle Iron Cleats Every 4 ft. On Belt.
  • 12 In. Dia. Sprocket Drive.
  • 5 Hp 208/230/460 Volt, 1160 Rpm Motor.
  • Approx. Size 6 Shaft Mount reducer.
