Drilling Accessories Package

• Cyclone:
  • Make: Hydracore
  • Inlet: 9in Flange (4in ID)
  • Bottom Solids Discharge: 13.5in Flange (11.5 ID)
    • Discharge Height to Ground: 15in
  • Top Air Outlet: 15in Dia.
  • Sitting on 48in Legs
  • Cyclone Dimensions:
    • Top Section: 78in Circumference x 30in High (8.4ft³)
    • Cone Section: 24in High (Area: 6.2ft³)
  • Overall Dimensions:
    • Length: 57in
    • Width: 60in
    • Height: 78in


• Bit/Stem Holder
  • 4in Opening for Drill Bit/Stem With Seal
  • 8in Opening for Drill Bit/Stem and Cuttings/Fluid (7in ID)
  • 9in Outlet to Cyclone (4.5 ID)


• 4in Transfer Hose
  • Make: New-Line
  • Model: NL8200HD SLURRYMAX
  • Size: 4in ID (9in Flanges)
  • Length: 20ft
  • Rating: 150 PSI


• Water Swivel
  • Make: King
  • Model: 2J08B
  • Inlet: 2in Dia.
  • Outlet: 3in With Threading for Extension
  • Length: 47in Long

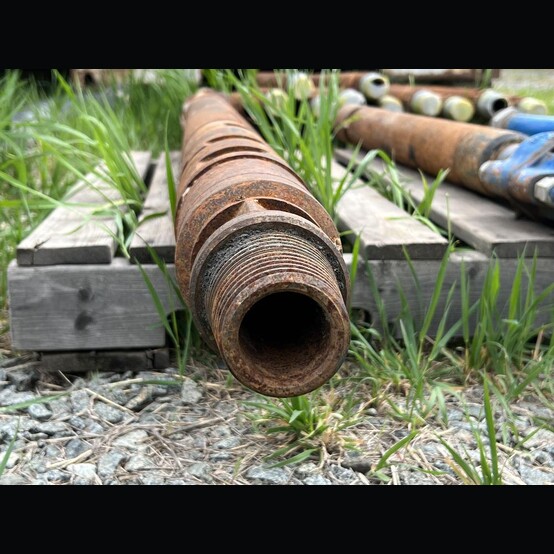

• Drill Bit:
  • Head: 6in Diameter
  • Inlet: 1.5in Diameter - Tapered and Threaded
  • Shaft:
    • Diameter: 5in Dia.
    • Length: 73in


• Drill Stem:
  • Qty: 12 Units
  • Diameter: 3.25in
  • Length: 63in
  • Inlet: 2.25in Dia. - Threaded
  • Outlet: 2.75in Dia. - Threaded


• Y-Pipe:
  • With Ball Valve
  • Inlet: 2in Dia.
  • Outlet: 2in Dia. Dual Outlet
    • 8in Between Outlets
  • With 2 Air Inlets/Blow-Out Ports
  • Dimensions:
    • Length: 38in
    • Width: 14.5in
    • Height: 6in


• Location: Savona, British Columbia, Canada
