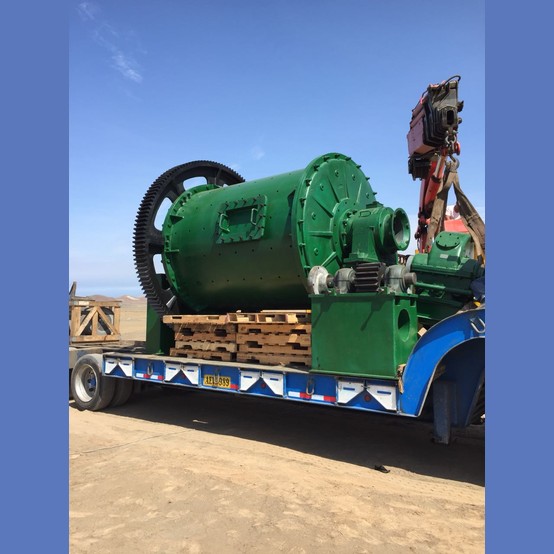

Ball Mill Description:

  • Size: 6 ft. Diameter x 8 ft. Long
  • 180 hp Motor
    • Brand: EPLI
    • 1200 rpm.
    • 220/380/440 volt.
  • Reducer
    • Parallel shaft reducer
    • 5:1 ratio.
  • Heavy duty special.
  • Shell fabricated with ASTM steel plates (3/4 in. thick).
  • Cast steel flanges and heads SAE 1045
    • Reinforced with 2 ½ in. ribbing.
    • Magnesium liners in heads.
    • Heads attached to the shell by bolts, with independent trunnions made
      of cast iron, fixed to the head by bolts, with load and discharge trunnion.
  • Cast iron main bearings, auto-alignment type.
  • Steel countershaft SAE 1045, mounted over two split case type bearing.
  • Cast steel pinion and bull gear SAE 1045, single helical, protective cover with
    access for lubrication and receiver tray.
  • Condition: Unused
  • Complete with
    • Pinion Gear
    • Shell
    • Heads
    • Main Bearings and Bearing Caps
    • Bearing Base
    • Sole Plates
  • Location: Peru
