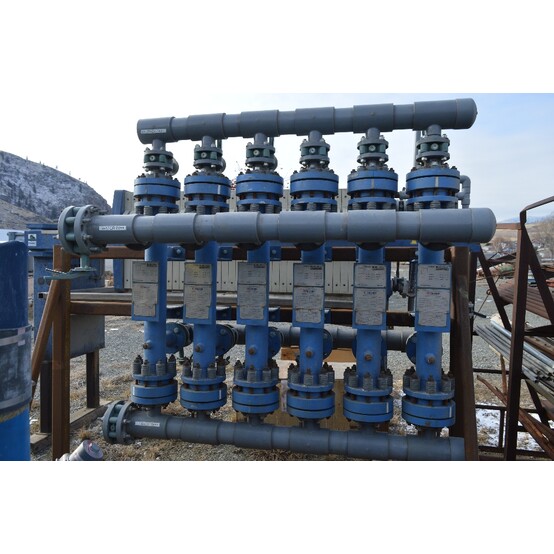

• Rack of 6 Heat Exchangers
  • Max Working Pressure (PSI): Process 75 Service 75
  • Max Working Temp (F°): Process 300 Service 300
  • Hydro Test Pressure (PSI): Process 98 Service 98
  • Cylinder Length: 43 in.
  • Top Leach Out has 2 in. Butterfly Vales on each Heat Exchanger
  • 2 in. Butterfly Vales
    • Qty: 6
    • Model: 200DJLE
    • Flange: ASME 150
    • Disc: D1
    • Seat: EPDME
  • Water Out has 4 in. Butterfly Valve
  • 4 in. Butterfly Valves
    • Qty: 1
    • Brand: KITZ
    • Model: 200DJL
    • Flange: ASME 150
    • Disc: D1
    • Seat: BUNA
  • Water Out Port has 2 in. Butterfly Valves on each Heat Exchanger
  • 2 in. Butterfly Valves
    • Qty: 6
    • Model: 200DJLE
    • Flange: ASME 150
    • Disc: DI
    • Seat: EPDME
  • Leach in Bottom has 4 in. Butterfly Valve
  • 4 in. Butterfly Vales
    • Qty: 1
    • Brand: KITZ
    • Model: 200DJ
    • Flange: ASME 150
    • Disc: S1
    • Seat:  BUNA
  • Location: British Columbia, Canada
