Caterpillar 416C 4WD Backhoe Loader ID: 1239690

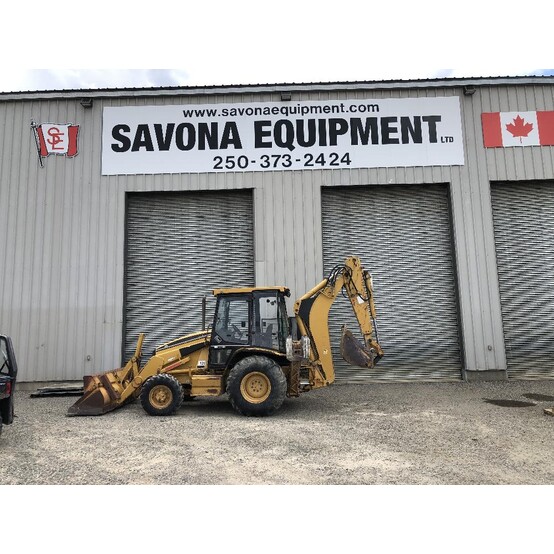

Caterpillar 416C 4WD Backhoe Loader

  • Make: Caterpillar
  • Model: 416C
  • Year: 2000
  • Hours: 9,802
  • Condition: Used, Reported in Good Condition
  • Drive: Four Wheel Drive (4WD)
  • Stick: Extendible Stick (18ft 2in)

  • Loader:
    • Capacity: 1.25yd³
    • Breakout Force: 5,220 Lbs
    • Dump Angle at Full Height: 43°
    • Dump Height at Max Angle: 8.8ft
    • Digging Depth: 4in
    • Comes with Bolt-On Wear Plates/New Cutting Edge
    • Loader Bucket Dimensions:
      • Width: 90in
      • Height: 32in
      • Depth: 22in

  • Backhoe:
    • Extendible Stick - 18ft 2in
    • Digging Depth: 18ft 2in
    • Overall Operating Height - Fully Raised: 19ft 5in
    • Loading Height: 13ft 10in
    • Overall Reach from Axle Centerline: 25.5ft
    • Loading Reach: 8ft 11in
    • Swing Arc: 180°
    • Digging Force:
      • Bucket Cylinder: 53.7kN (12,065 Lbs.)
      • Stick Cylinder: 25.1kN (5,635 Lbs.)
    • Hoe Bucket Dimensions:
      • Length: 32in
      • Width: 22in
      • Depth: 21in

  • Engine: Caterpillar 3054 DINA
    • Power Output: 80HP @2200 RPM
    • 4L Four Cylinder Turbo Diesel
    • Top Speed:
      • Forward: 21.1 MPH
      • Reverse:  21.1 MPH
    • Turning Radius: 35ft

  • Tires:
    • Front: Firestone Super-Traction 12.5/80-18, 12 Ply (80% Tread)
    • Rear: Razorback R-4 19.5L-24, 10 Ply (30% Tread)

  • Location: Savona, British Columbia, Canada
