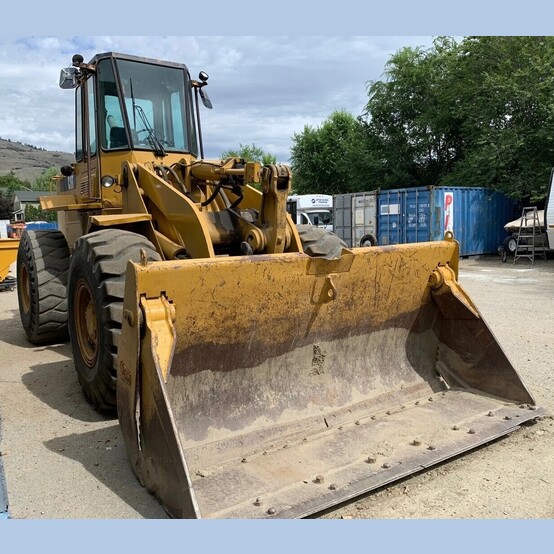

CAT 936E Wheel Loader

  • Make: Caterpillar
  • Model: 936E
  • Hours:
    • Engine and Transmission: 800 Hours
    • Frame: 11,400 Hours
  • Condition: Used, Reported in Good Condition, Rebuilt Motor and Transmission
  • With 3-Way Bucket
  • Breakout Force: 28,032 lbs.
  • Dump Clearance At Max Raise: 9.45ft
  • Fuel: Diesel
  • Ground Clearance: 1.29ft
  • Wheel Base: 9.91ft
  • Engine: CAT 3304 (135.5HP)

  • General Model Specifications:

    • Engine
      • Make: CAT
      • Engine Model: 3304
      • Gross Power: 135.5HP
      • Displacement: 427.2in³

    • Transmission:
      • Gears: 4 Gears Forward, 4 Gears Reverse
      • Max Speed:
        • Forward: 25.2 MPH (40.6Km/h)
        • Reverse: 28.2 MPH (45.3Km/h)

    • Axles:
      • Front: Fixed Axle
      • Rear: 15° Oscillation Each Side (30° Total)
      • Wheel Drop/Rise: 20in (508mm)

    • Hydraulic System:
      • Raise Time: 6.5 Seconds
      • Dump Time: 1.8 Seconds
      • Lower Time: 3.2 Seconds

    • Operational:
      • Fuel Capacity: 52.9 Gal
      • Hydraulic System Fluid Capacity: 38.6 Gal
      • Static Tipping Weight: 19,846.1 lbs.
      • Turning Radius: 19.6ft

    • Overall Dimensions:
      • Length: 23.2ft
      • Width: 8.4ft
      • Height: 11ft
      • Weight: 27,106 lbs.

  • Location: Western Canada
