CAT 4.3 MW Generator Sub-Station Package ID: 536541


Generator and Substation Package:

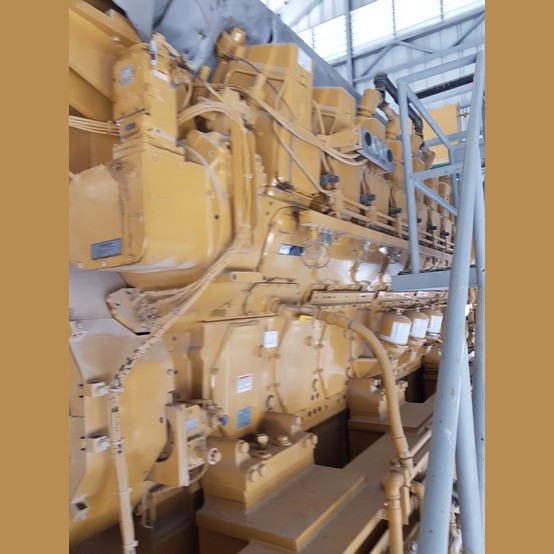

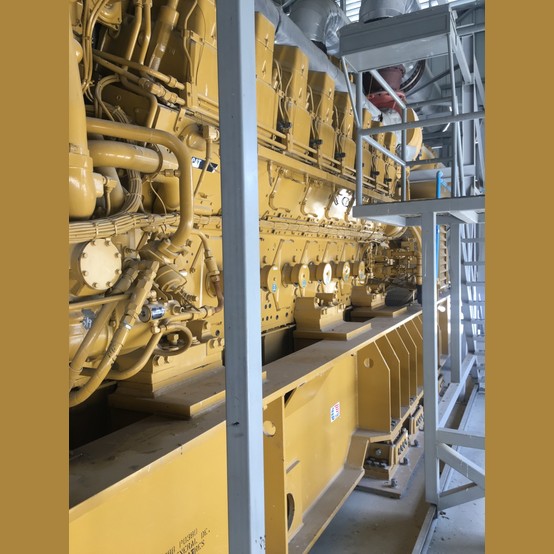

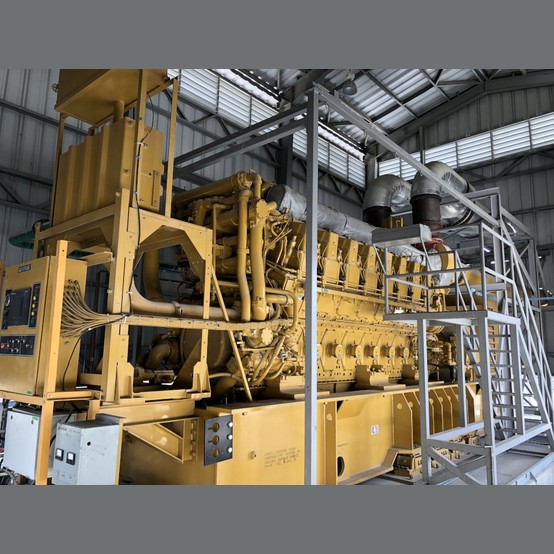

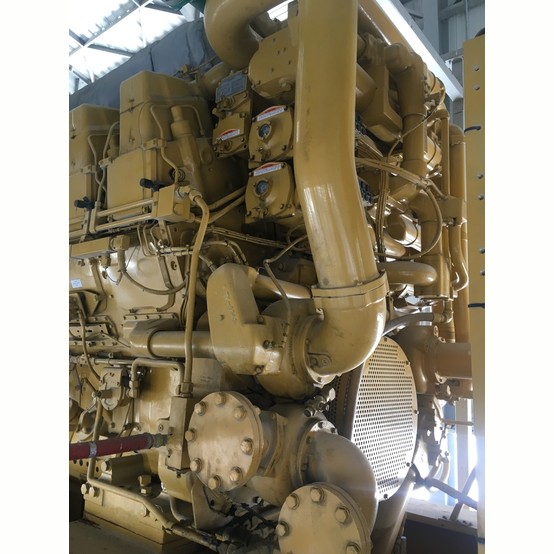

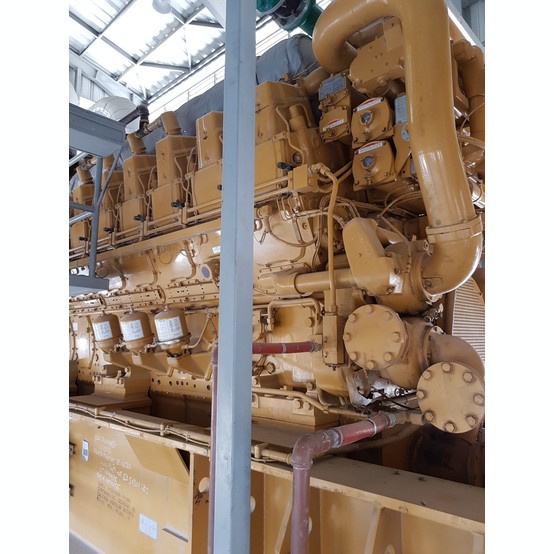

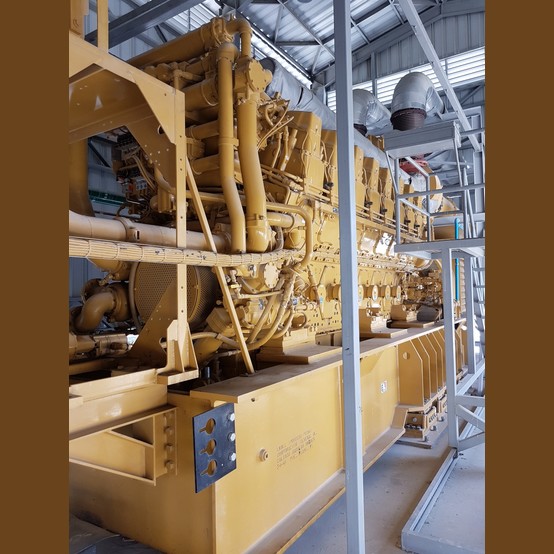

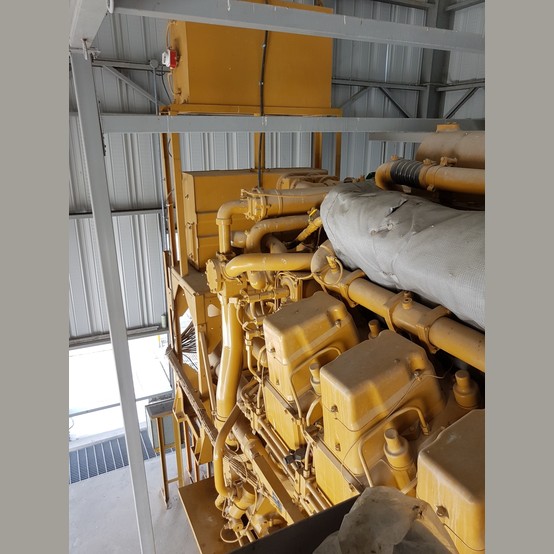

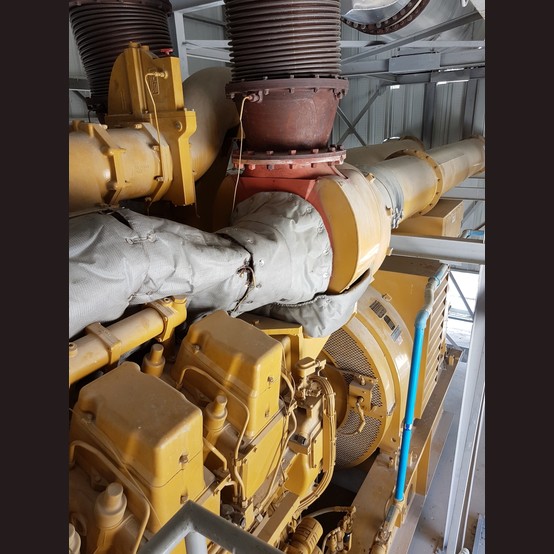

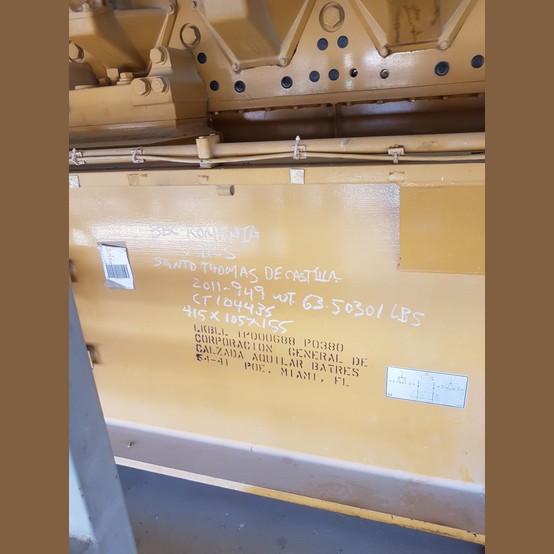

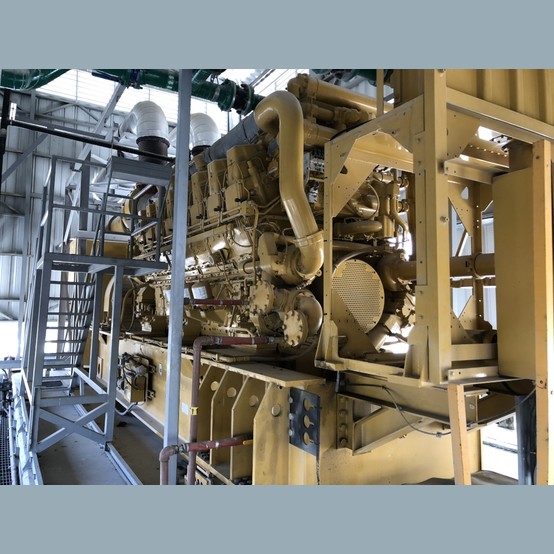

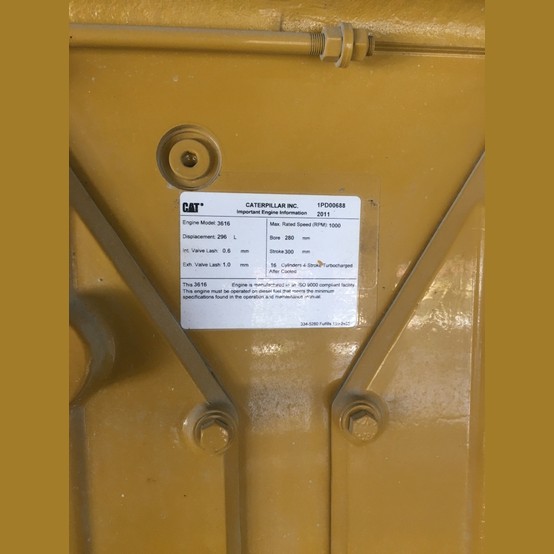

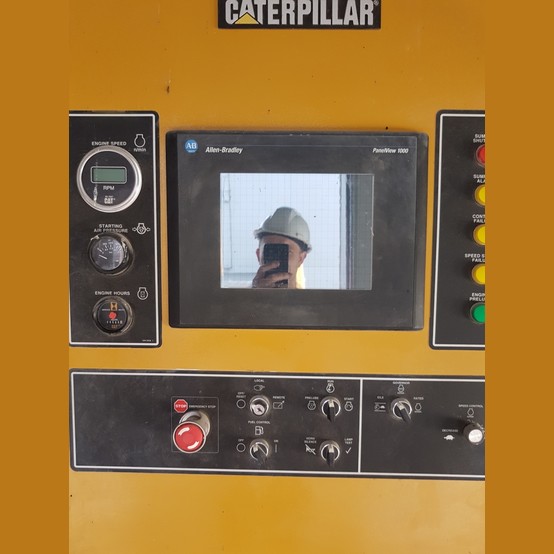

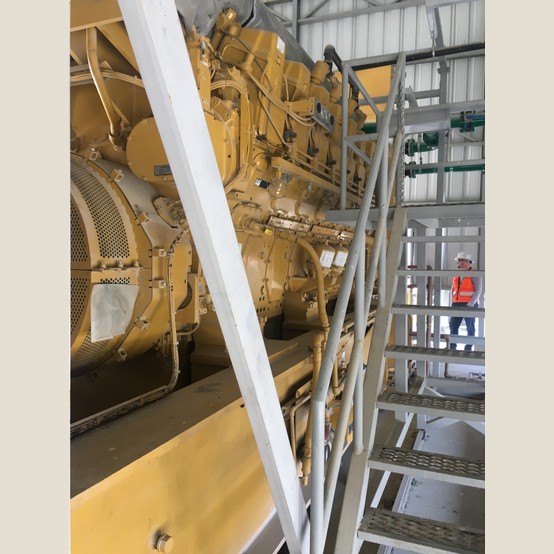

CAT Model 3616 Diesel Engine

  • Year: 2011
  • Hours: 630
  • Displacement: 296 L
  • Valve Lash: 0.6 mm
  • Valve Lach 1.0 mm
  • Max Rated Speed (RPM): 1000
  • Bore 280 mm
  • Stroke 300 mm
  • 16 Cylinders 4-Stroke Turbocharged After Cooled

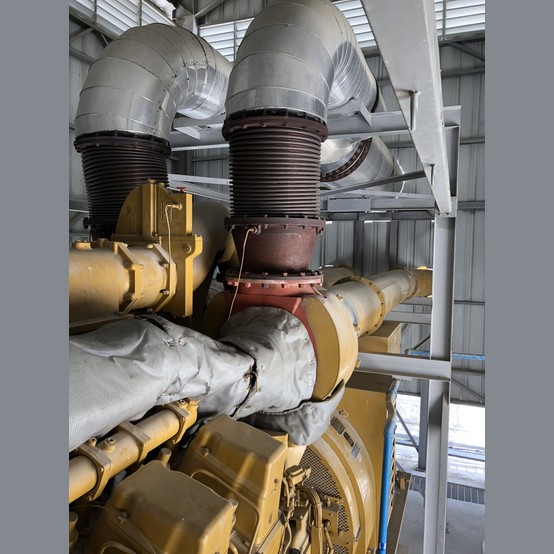

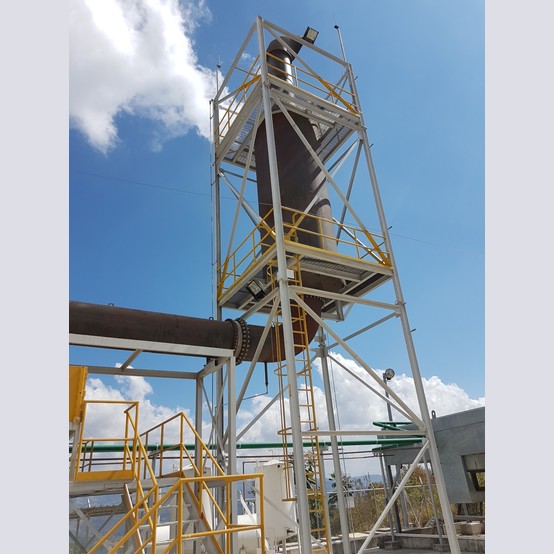

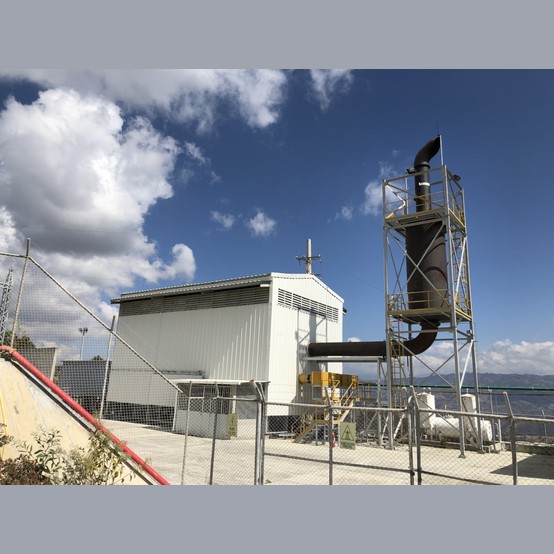

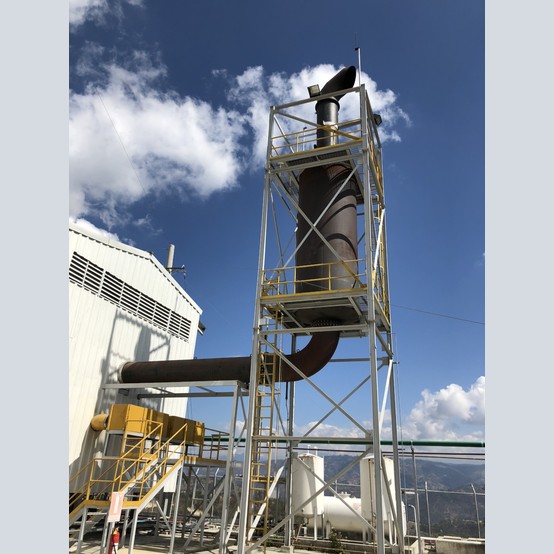

  • Exhaust and Silencer System

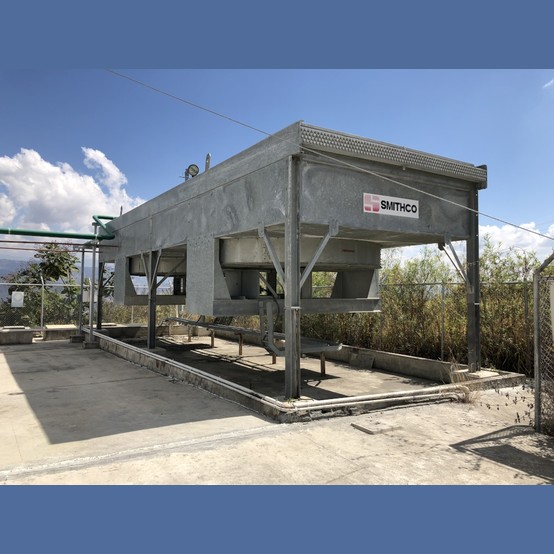

  • Smithco Radiator
  • Air Filters

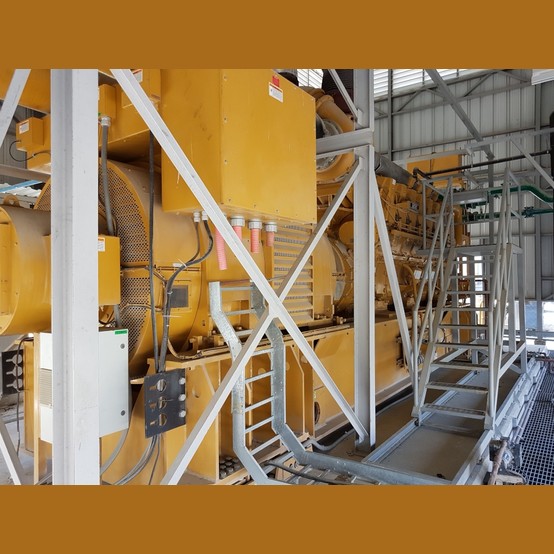

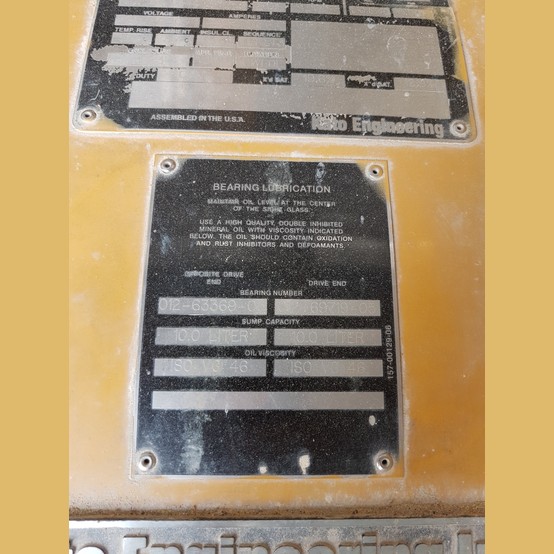

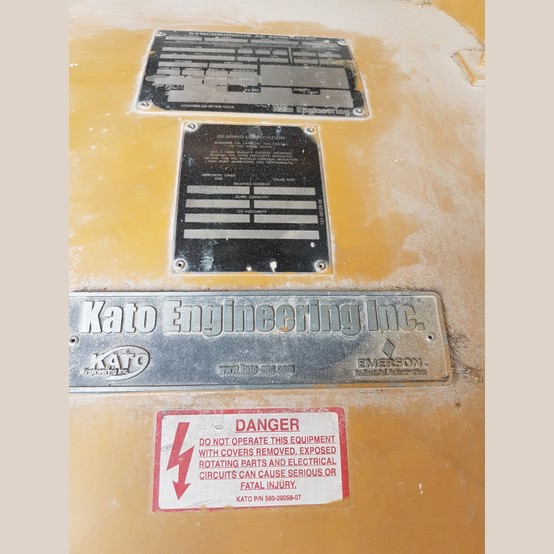

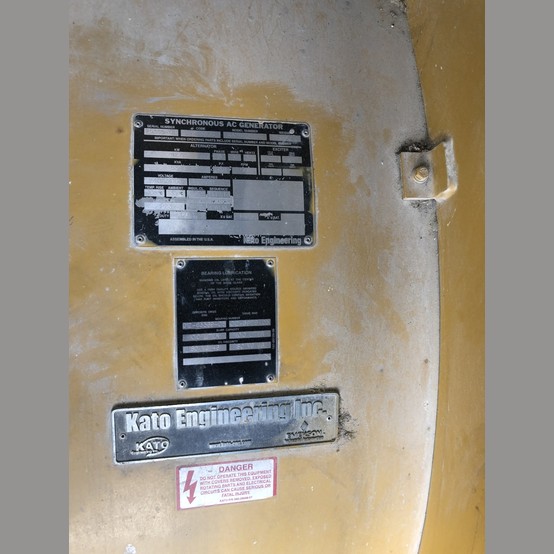

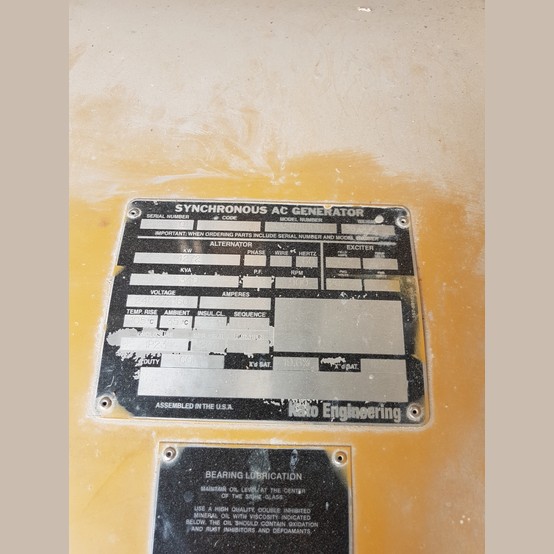

KATO Synchronous AC Generator

  • 4272 KW
  • 5340 KVA
  • 2402/4160 Volt
  • 3 Phase
  • 60 Hz.
  • 900 RPM
  • 741 Amp
  • 8 P.F.

Also Available:

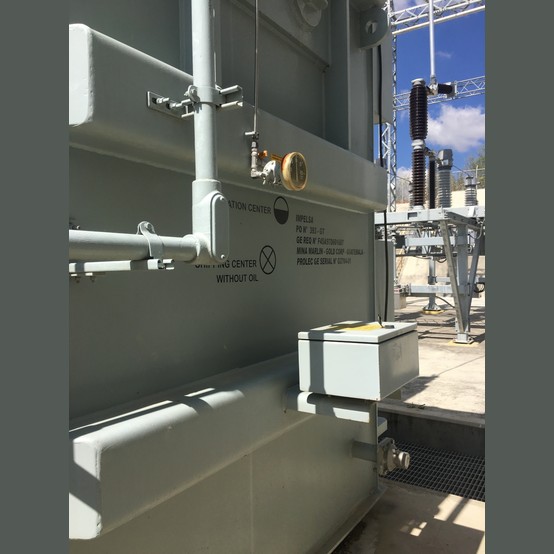

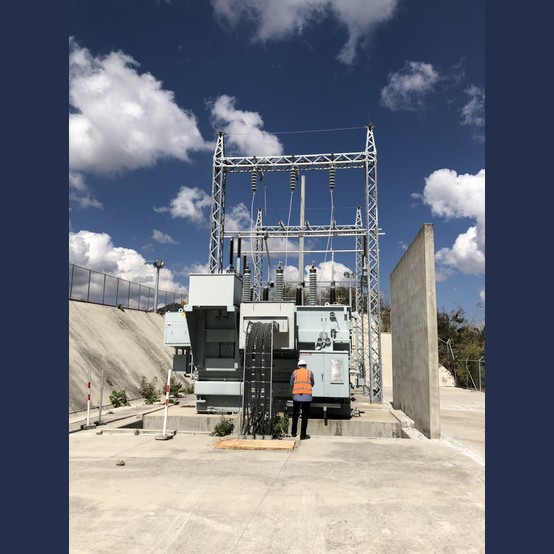

GE Prolec Load-Tap Changing Transformer

  • Serial No. G2704-01
  • Voltage Rating: 69000 – 4160 Y/2400
  • 3 Phase
  • 60 Hz.
  • Altitude Rating: 2300 meters
  • KVA Rating
    • 12,000 Continuous @ 55 C Rise ONAN
    • 13,400 Continuous @ 65 C Rise ONAN
    • 16,000 Continuous @ 55 C Rise ONAF
    • 17,900 Continuous @ 65 C Rise ONAF
  • Impedance @ 75 C
    • %Z – 7.020
    • KVA Base – 12,000
    • kV Base – 69 – 4.16

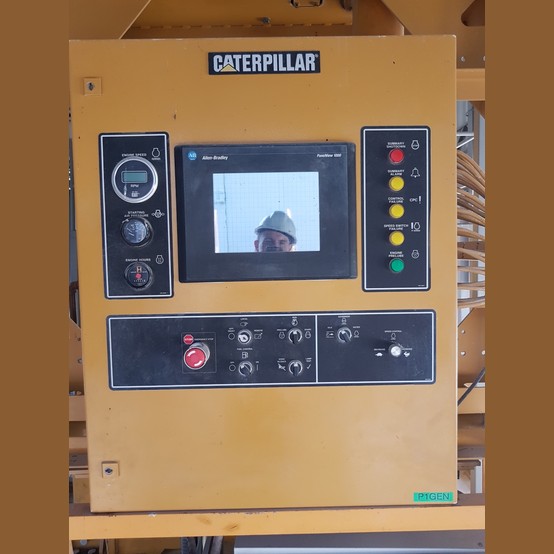

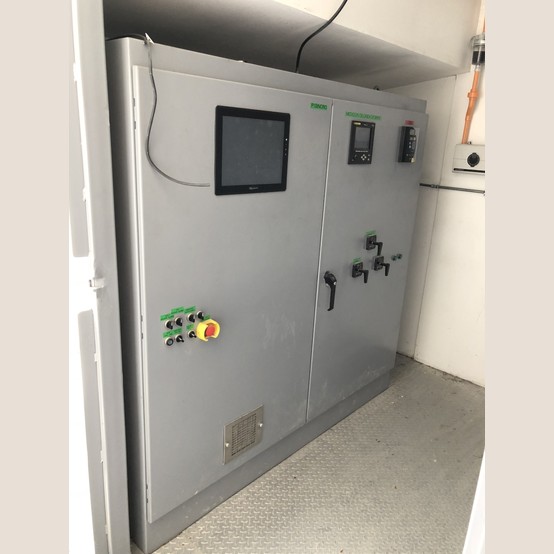

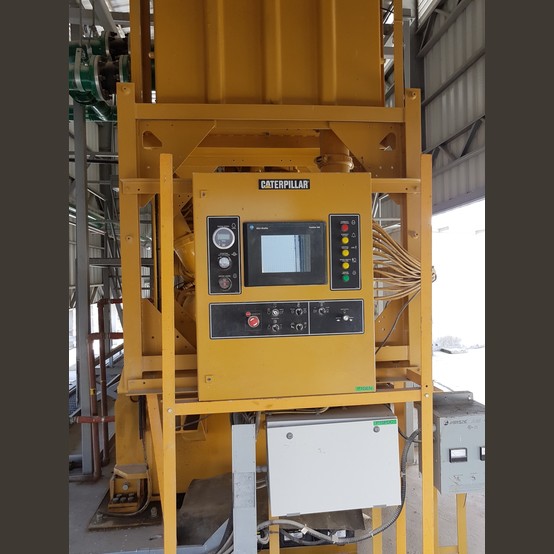

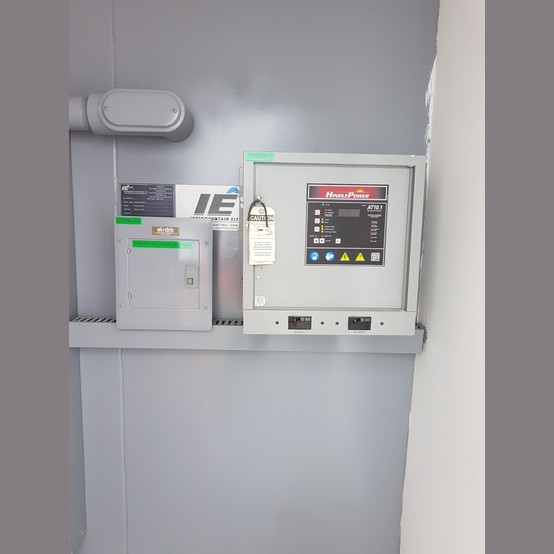

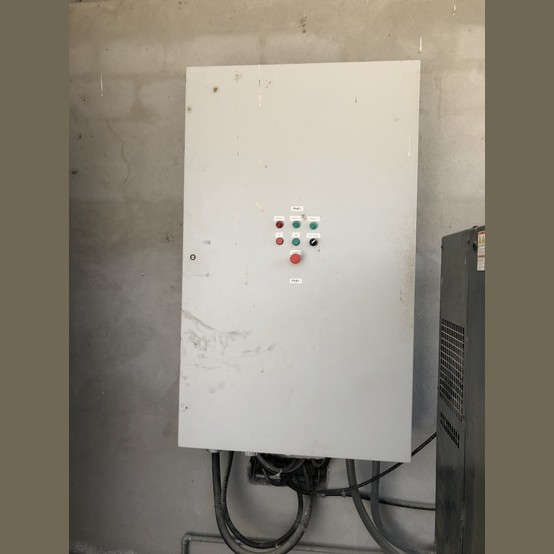

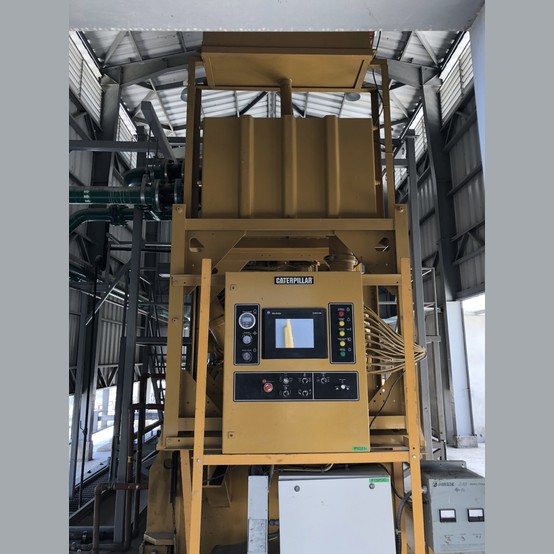

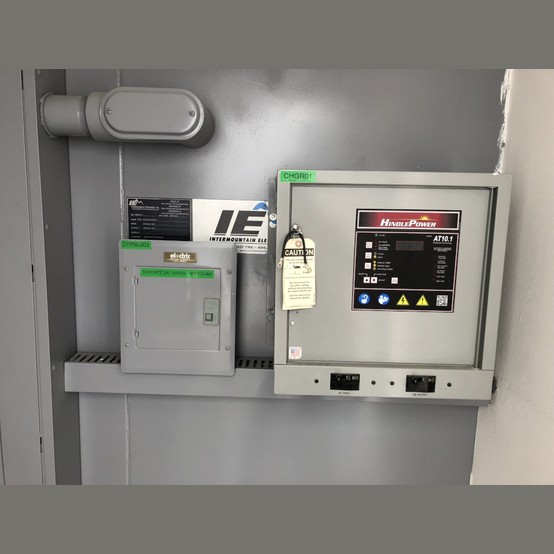

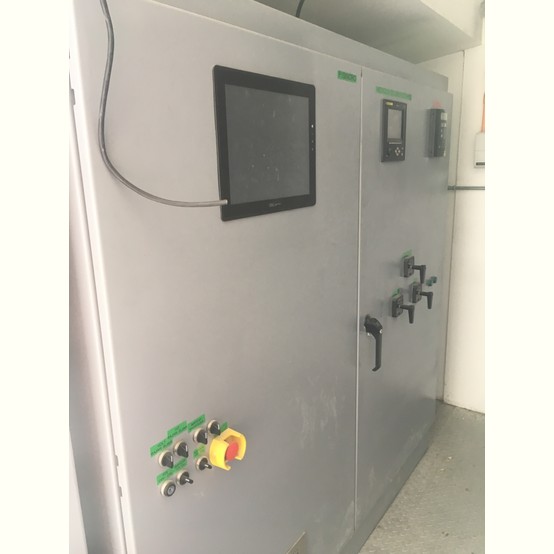

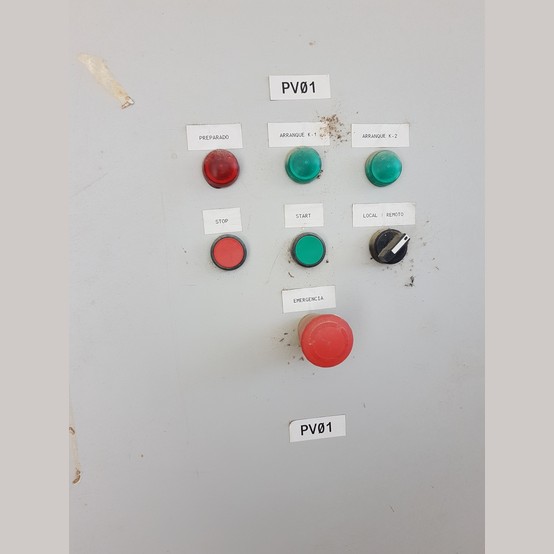

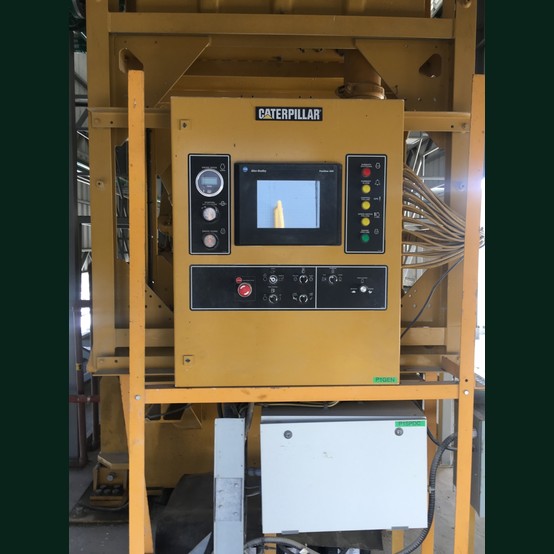

Control Panels

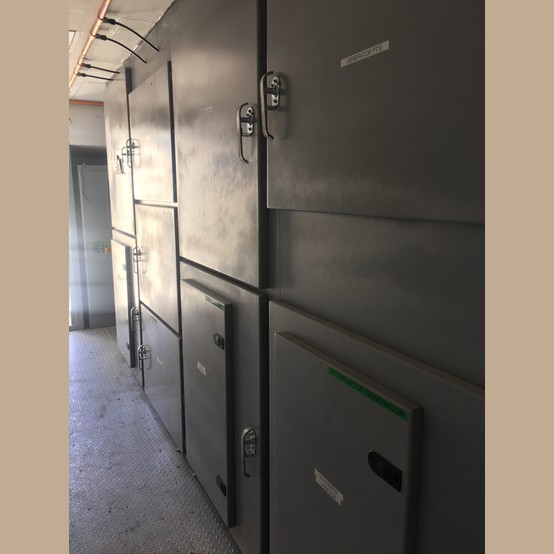

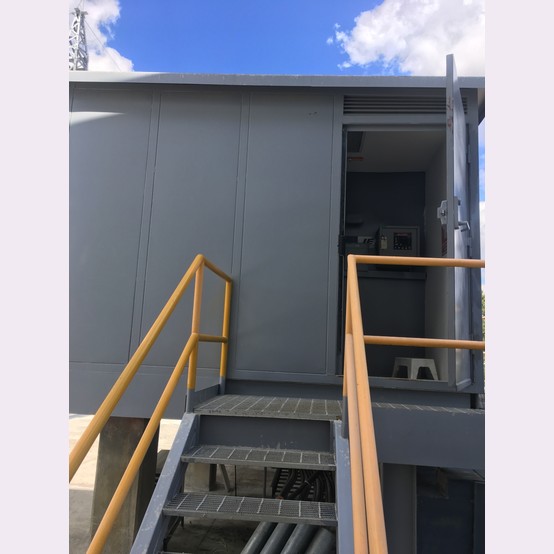

  • Substation Control Room

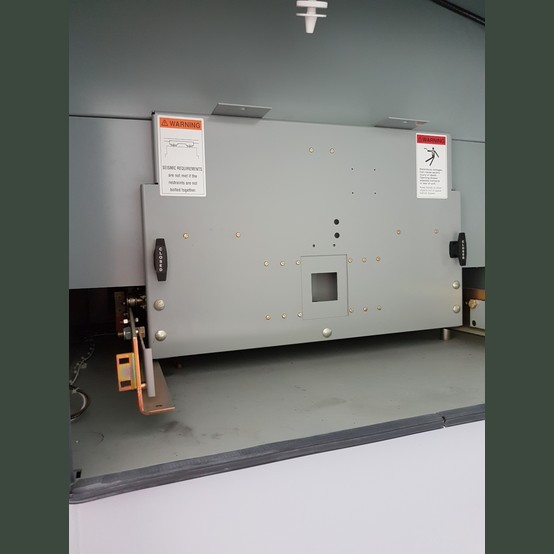

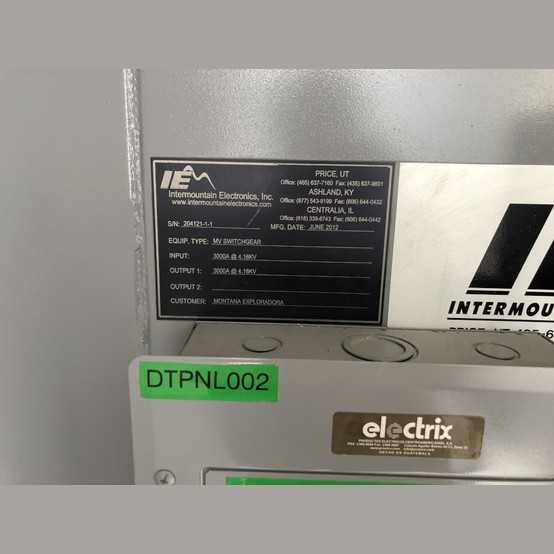

  • IE – Intermountain Electronics Inc. MV Switchgear
  • Input: 3000A @ 4.16KV
  • Output 1: 3000A @ 4.16KV
  • MFG Date: June 2012

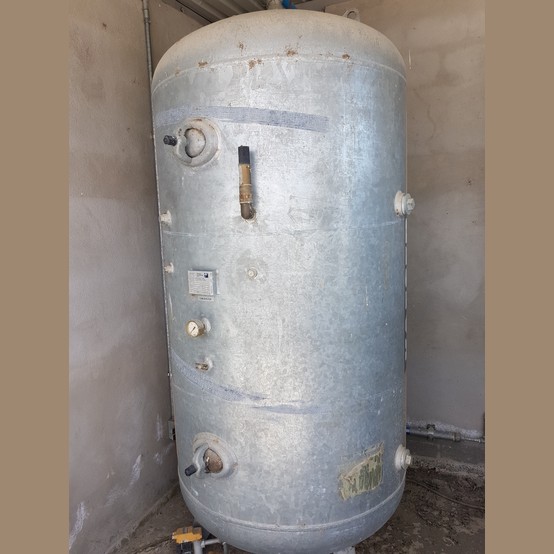

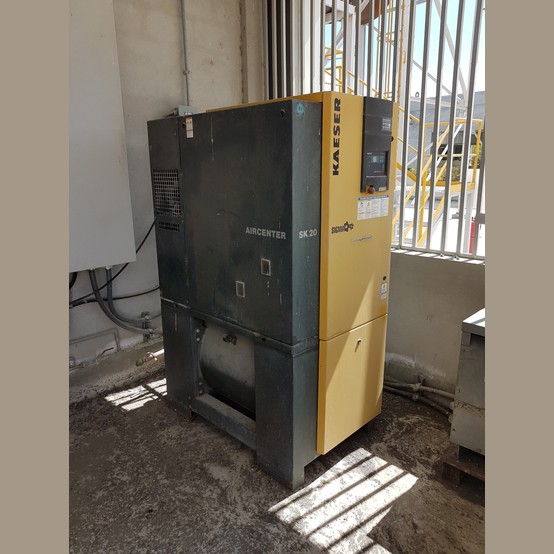

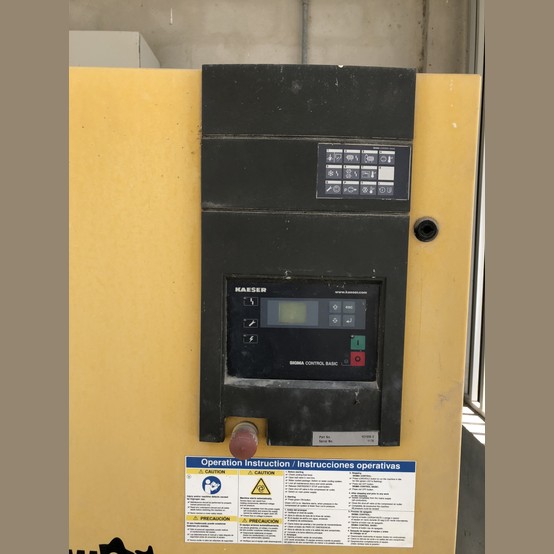

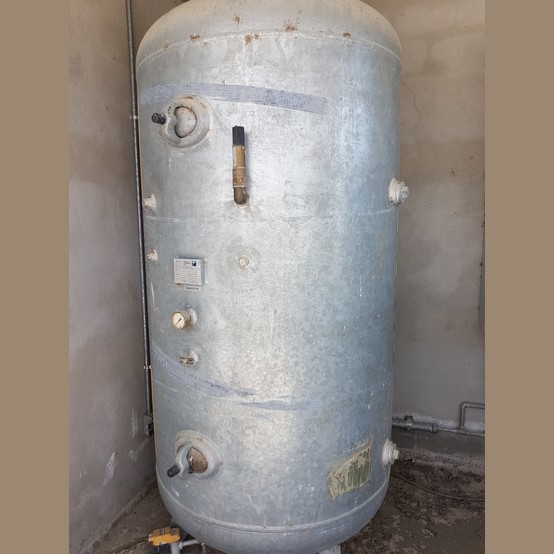

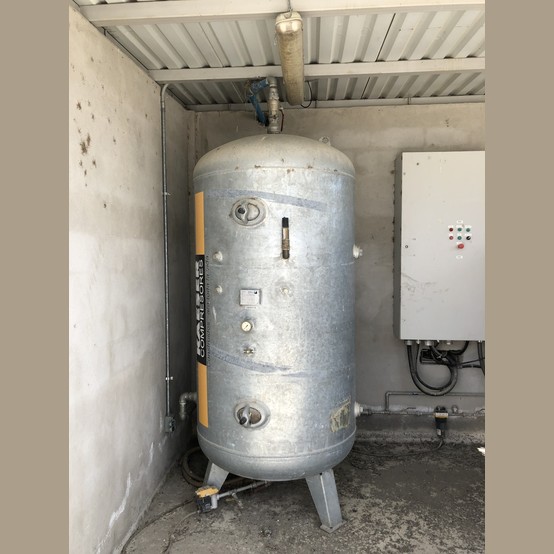

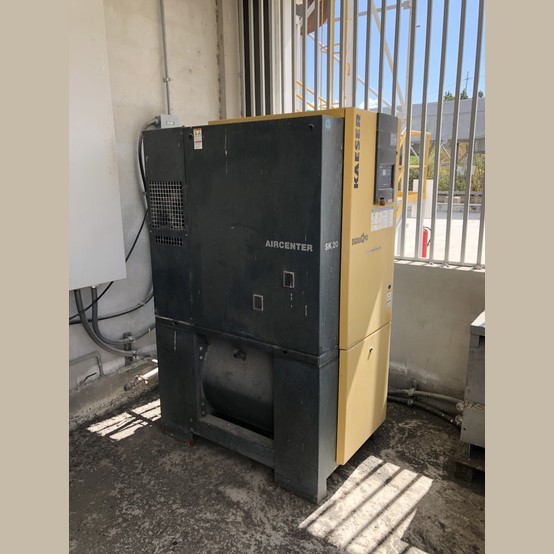

Kaeser Air Compressor with 2000 Liter Tank

Additional Equipment:

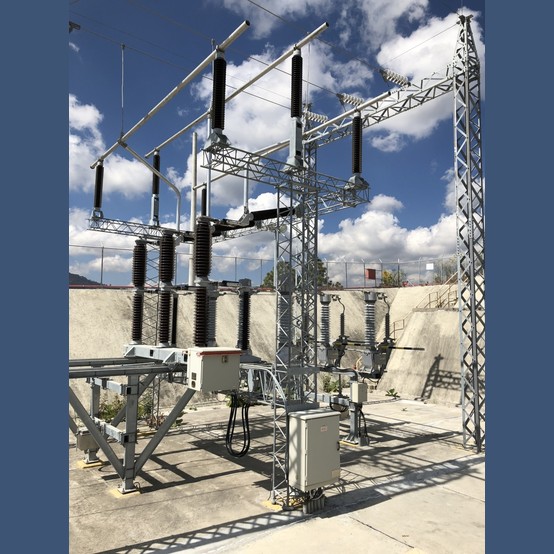

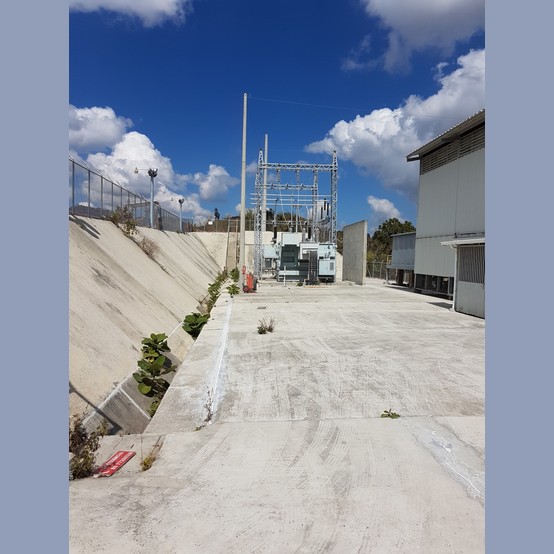

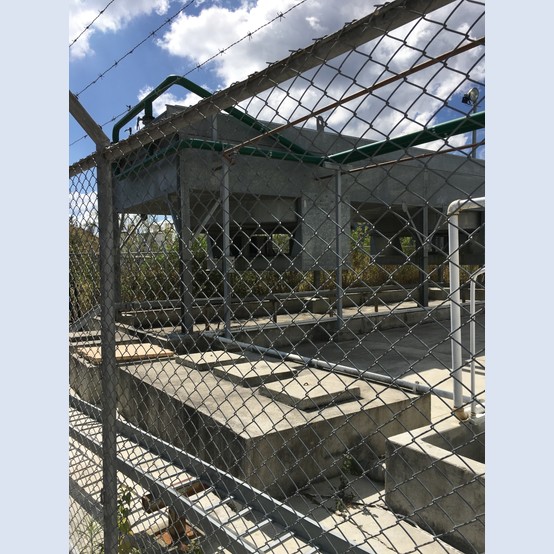

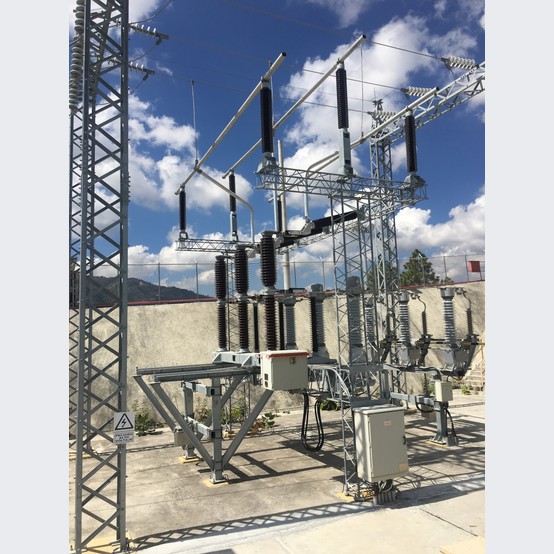

  • Substation Structures
  • Tensioners
  • Connectors
  • Grounding disconnector system
  • Lightening grounding system
  • Bar insulators
  • Voltage transformers
  • Interlock Coils Box
  • Marshaling Box Switch Panel
  • High Voltage Insulators
  • Electrical Panel and Transformer for Lighting Brand: GENERAL PACIFIC, 15KVA, 60HZ, 3 Phase, No. 219118-03

Location: Central America
