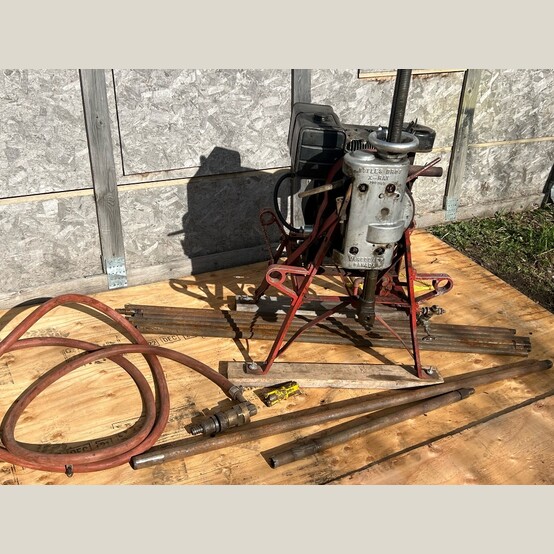

Boyles Bros X-Ray Diamond Drill

  • Make: Boyles Bros. (JKS)
  • Model: XR-XGG-65
  • Serial: 2-401-002-1019
  • Hours: Unknown
  • Condition: Used; Fires Turns Well
  • Drive: Briggs & Stratton Engine
    • Model: 23AFB
    • Power: 10HP
    • Type: 0113 01
    • Runs Good, Pull Start Only

  • Includes:
    • 30ft Of RW Extension Rod
    • 7ft Of EW Core Tube
    • 2 Coring Bits
    • 1 Cutting Bit
    • 1 Water Swivel

  • General Specifications:
    • Depth Rating:
      • RW: 250ft (76m)
      • EW: 150ft (46m)
      • AW: 100ft (30m)
      • BW: 75ft (23m)

    • "X-RAY" Swivelheads:
      • Gear-Feed:
        • I.D. Feedscrew: 1-1/8in (28.6mm)
        • Feed Travel:
        • Chuck RPM:
          • Standard 1:1 Bevel Gear: 720 to 1440
          • Low Speed 2:1 Bevel Gear: 360 to 720
        • Length: 32in (813mm)
        • Weight: 39 Lbs. (17.7kg)
        • Feed Gears:¬†
          • Standard: 300 and 550
          • Optional: 75, 200, 400, 675, 800 and 900
      • Hand-Feed:
        • I.D. Feedscrew: 1-1/8in (28.6mm)
        • Feed Travel: 10in (254mm)
        • Chuck RPM:
          • Standard 1:1 Bevel Gear: 720 to 1440
          • Low Speed 2: 1 Bevel Gear: 360 to 720
        • Length: 39in (990mm)
        • Weight: 68 Lbs. (31kg)

    • Drill Dimensions: Approx.
      • Length: 25in (635mm)
      • Width: 28in (711mm)
      • Height: 34.5in (875mm)
      • Weight: 239 Lbs. (108kg)

  • Location: Western Canada
