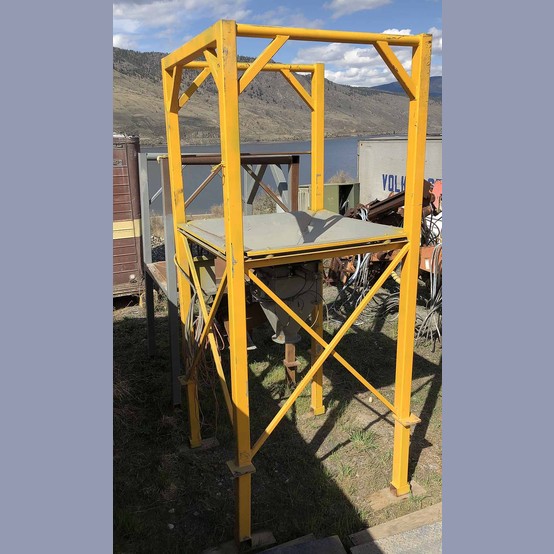

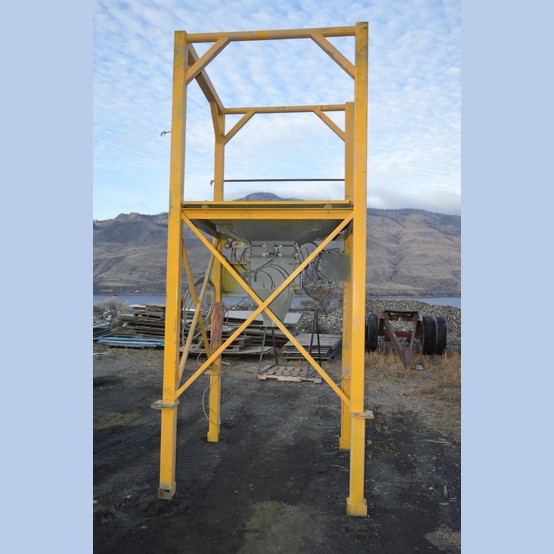

• 55 in. x 55 in. Tapered Hopper base
    • With FP Series Pneumatic bin vibrator
      • Model FP-35-M
  • Base Necked Down to 16 in. x 16 in. discharge chute
  • Air Actuated lump breakers on two sides
    • TRD Mfg. air cylinders
      • Bore: 2.5 in.
      • Stroke: 6 in.
      • 250 Max PSI
  • Internal sizing grate with hinged clean out access panel
    • 8 in. Dia. Flanged Discharge
  • Air/Electric Pneumatic control panel
  • Main Frame: 12 ft. High x 64 in. Wide x 64 in. Deep
    • Made of 4 x 4 Tubing
  • Location: British Columbia, Canada
