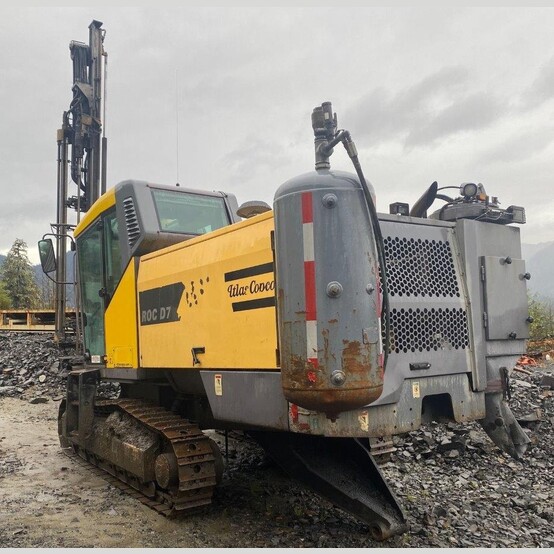

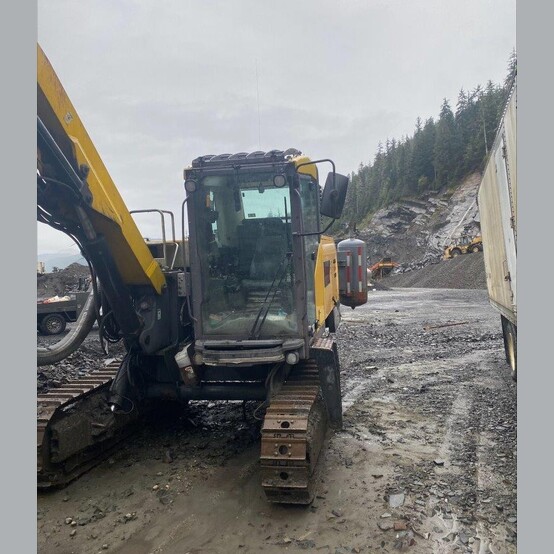

Atlas Copco ROC D7-11 and ROC D7-RRC Drill Package

Quantity: 2 Drill Package

• Make: Atlas Copco
• Models: ROC D7-11 and ROC D7-RRC
• Type:

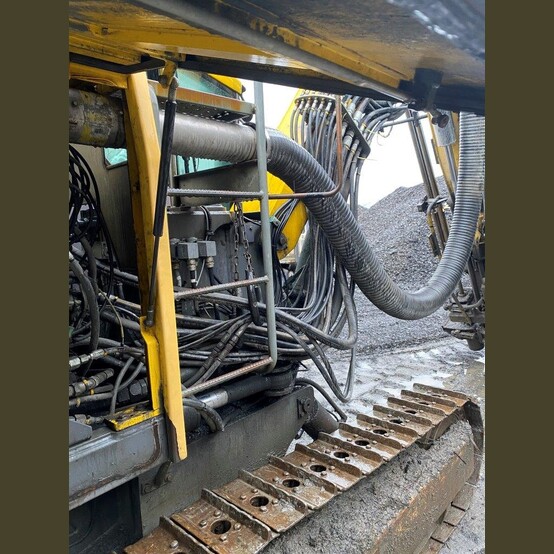

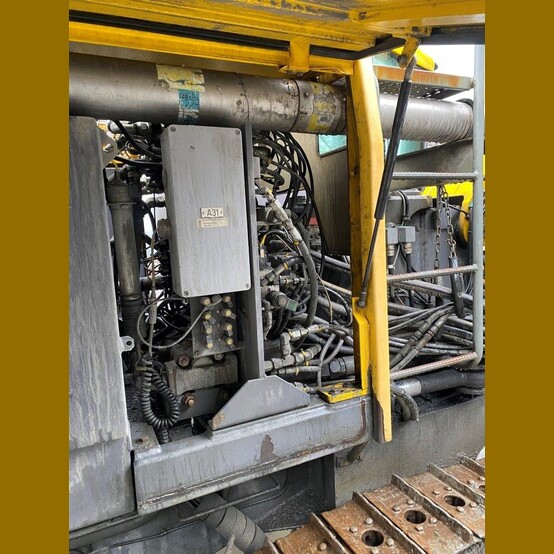

  • D7-11: Quarry Drill

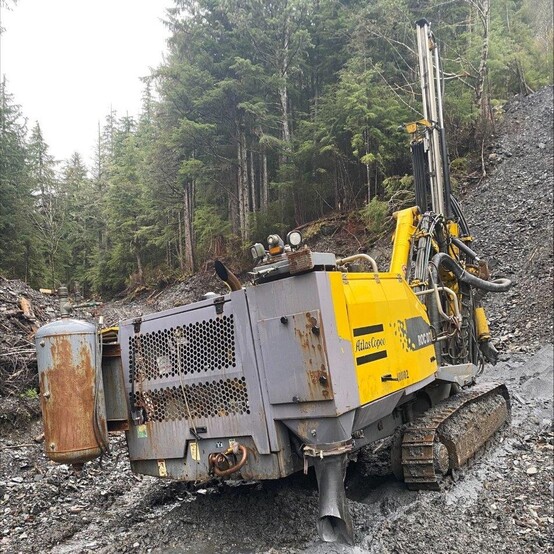

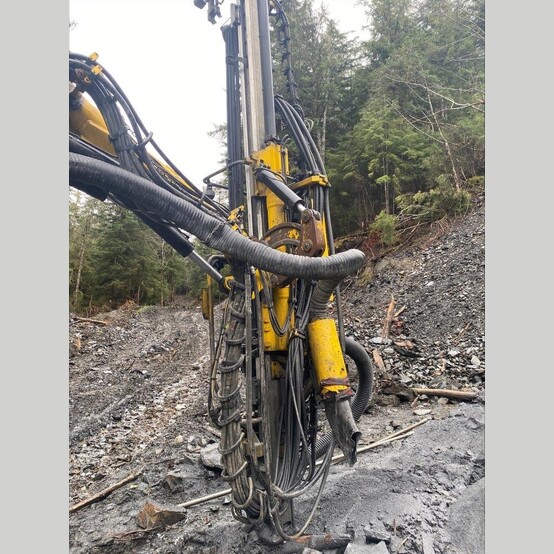

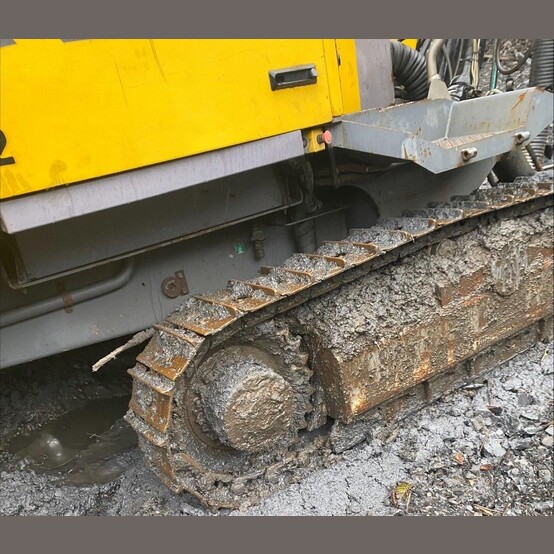

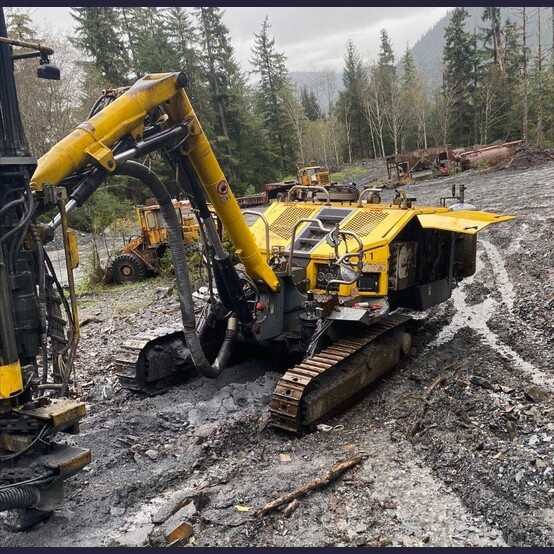

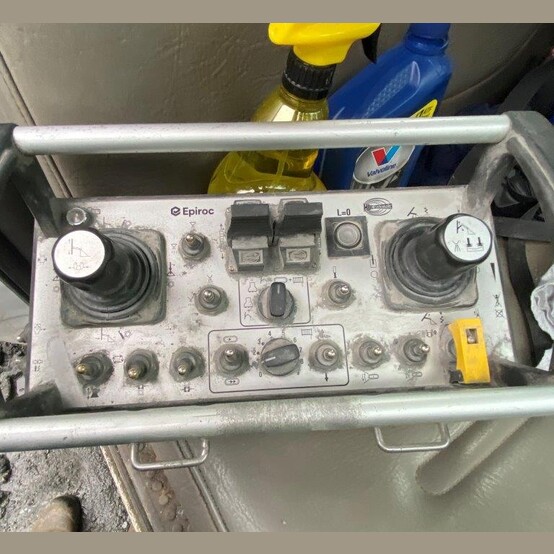

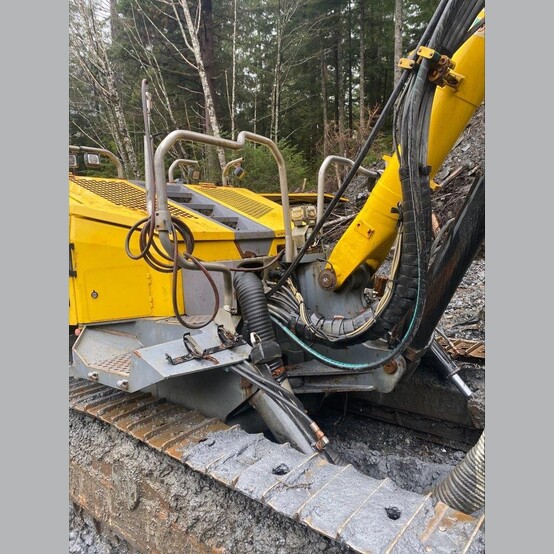

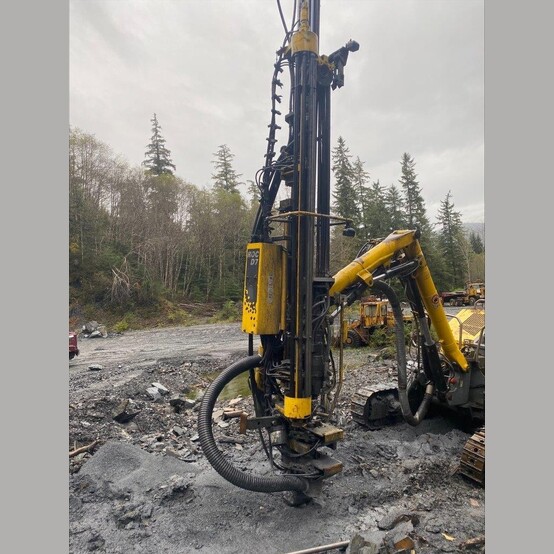

  • D7-RRC Radio Remote Control Rock Drill
• Years:
  • D7-11: 2010
  • D7-RRC: 2006
• Hours:
  • D7-11:
    • Frame Hours: 8,050 Hours
    • Impact Hours: 2,874 Hours
  • D7-RRC:
    • Frame Hours:
    • Impact Hours:
• Condition: Used, Reported in Working Condition
• Comes with Spare Atlas Copco COP 1840 Drifter Drill

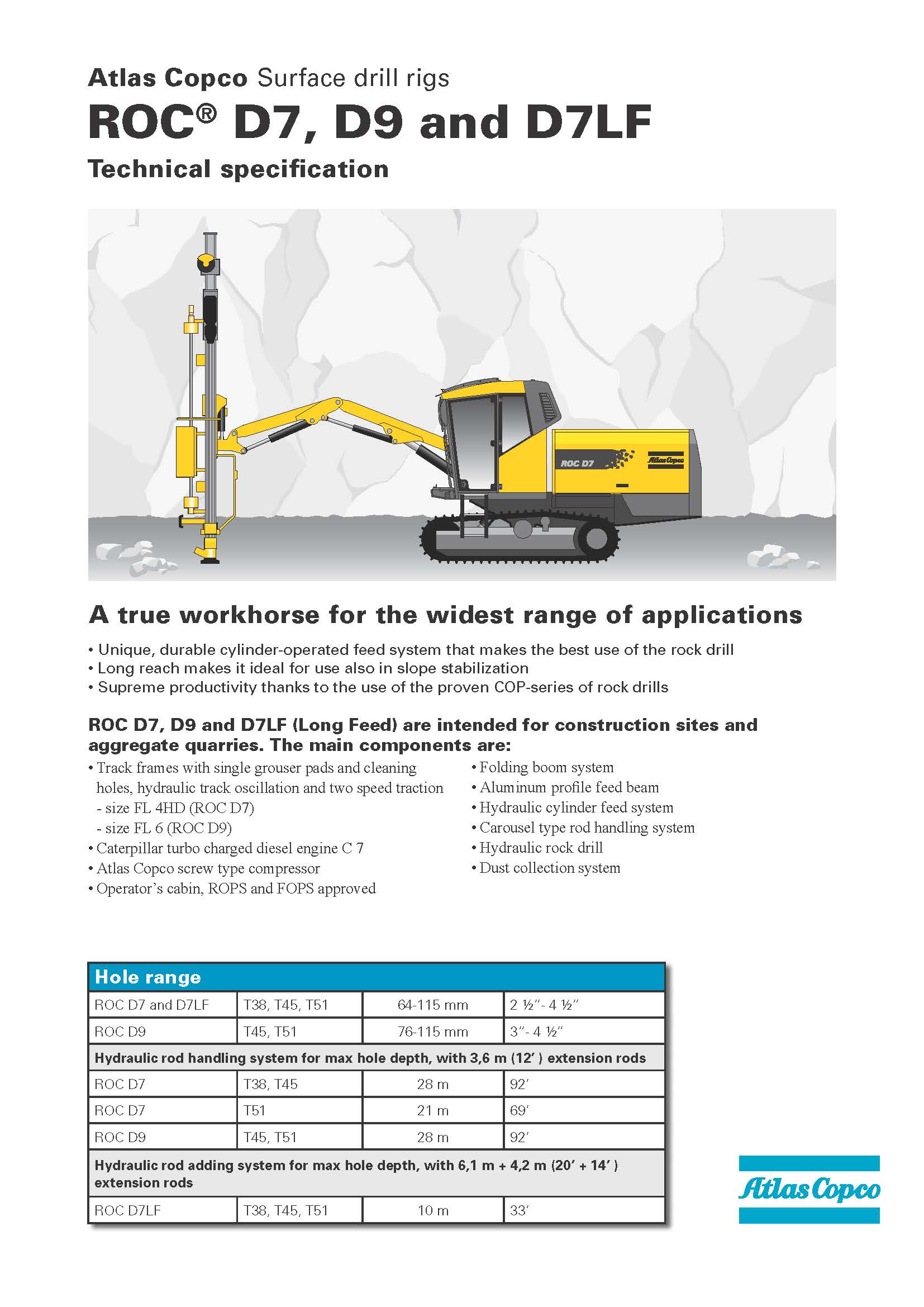

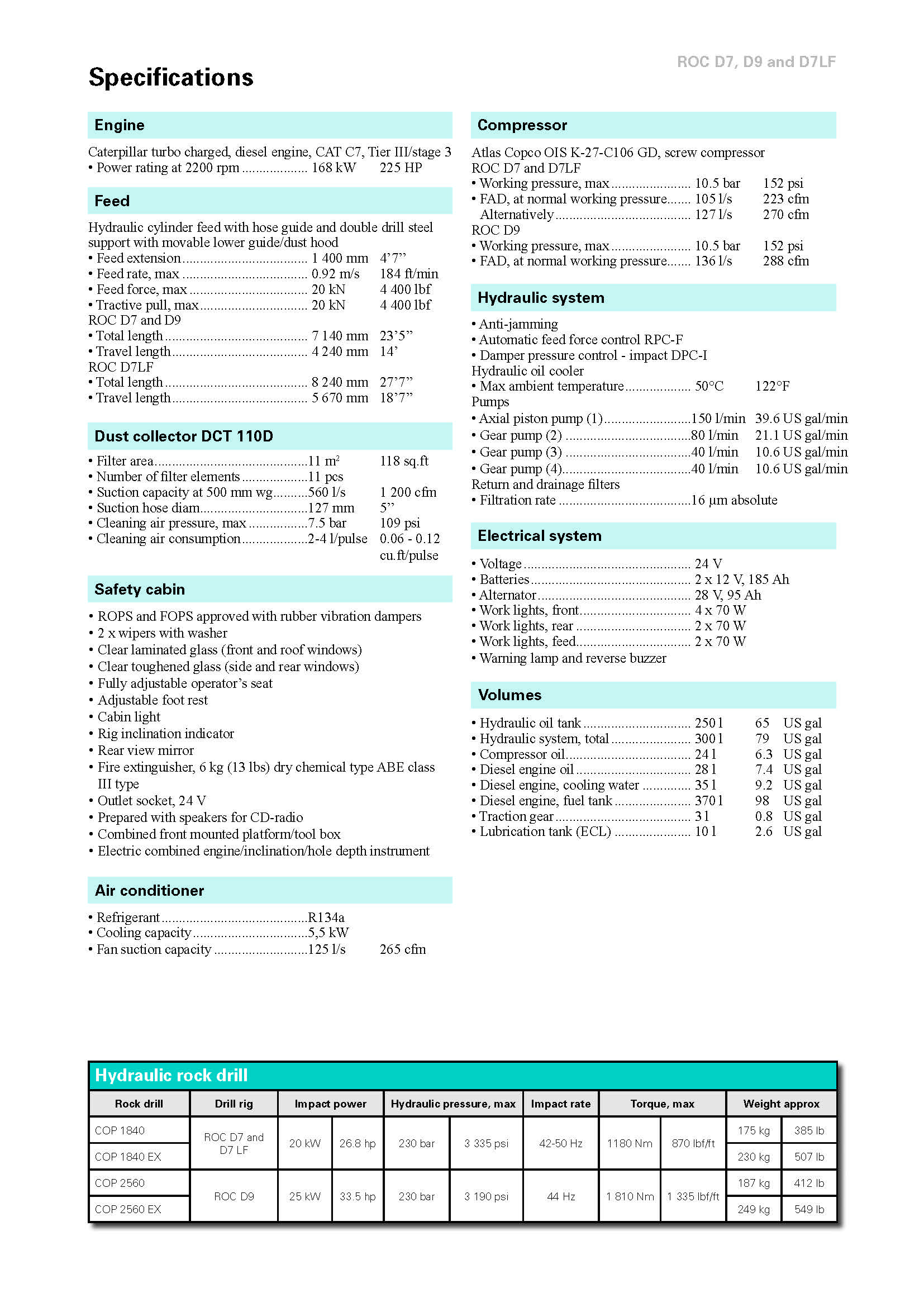

• ROC D7-11 General Model Specifications:
  • Rock Drill: Atlas Copco COP 1840
    • Impact Power: 20kW (26.8HP)
    • Hydraulic Pressure: 230 bar (3,335 PSI)
    • Impact Rate: 42-50Hz
    • Torque: 1,180Nm (870lbf/ft)
  • Hole Range:
    • T38, T45, T51 Drill Steel: 64-115mm (2½”- 4½”)
    • Hydraulic Rod Handling System for Max Hole Depth (with 3.6m (12’) Extension Rods)
      • T38, T45: 28m (92’)
      • T51: 21m (69')

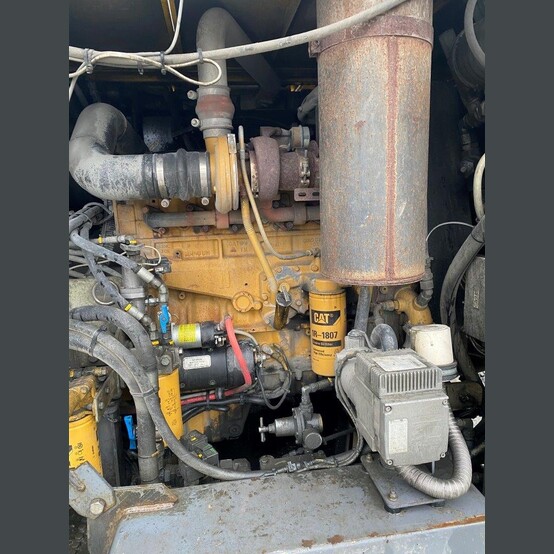

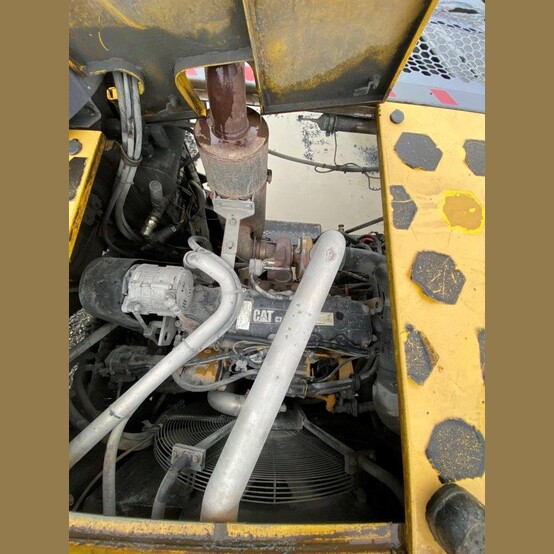

  • Engine: CAT C7, Tier III/Stage 3
    • Power: 168kW (225HP)

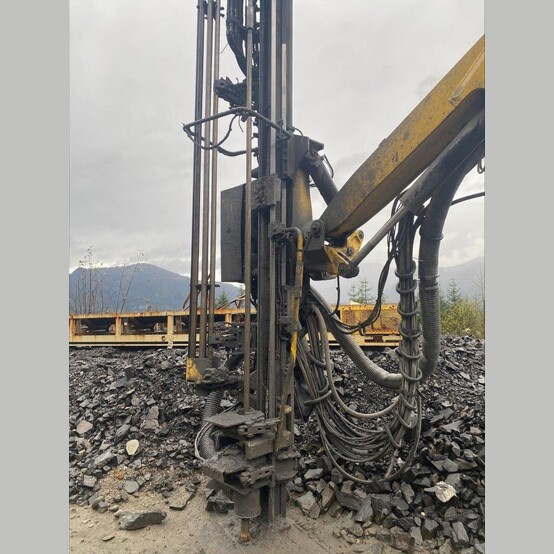

  • Feed: Hydraulic Cylinder Feed with Hose Guide and Double Drill Steel Support with Movable Lower Guide/Dust Hood
    • Feed Extension: 1,400mm (4 ’7’')
    • Feed Rate, Max: 0.92 m/s (184 ft/min)
    • Feed Force, Max: 20kN (4,400 lbf)
    • Tractive Pull, Max: 20kN (4,400 lbf)
    • Total Length: 7,140mm (23’ 5’’)
    • Travel Length: 4,240mm (14’)
  • Dust Collector: DCT 110D
    • Filter Area: 11m² (118ft²)
    • Number of filter elements: 11 pcs
    • Suction Capacity at 500mm W.G.: 560 l/s (1,200 CFM)
    • Suction Hose Diameter: 127mm (5’’)
    • Cleaning Air Pressure, Max: 7.5 bar (109 PSI)
    • Cleaning Air Consumption: 2-4 l/pulse (0.06 - 0.12 ft³/pulse)

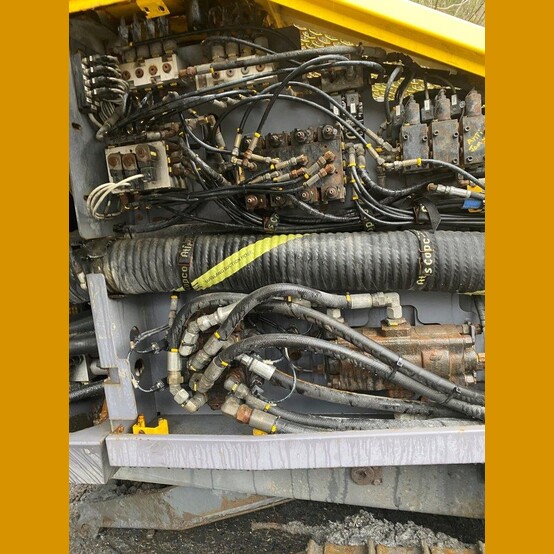

  • Hydraulic System:
    • Anti-Jamming
    • Automatic Feed Force Control: RPC-F
    • Damper Pressure Control: Impact DPC-I
    • Hydraulic oil cooler - Max Ambient Temperature: 50°C (122°F)

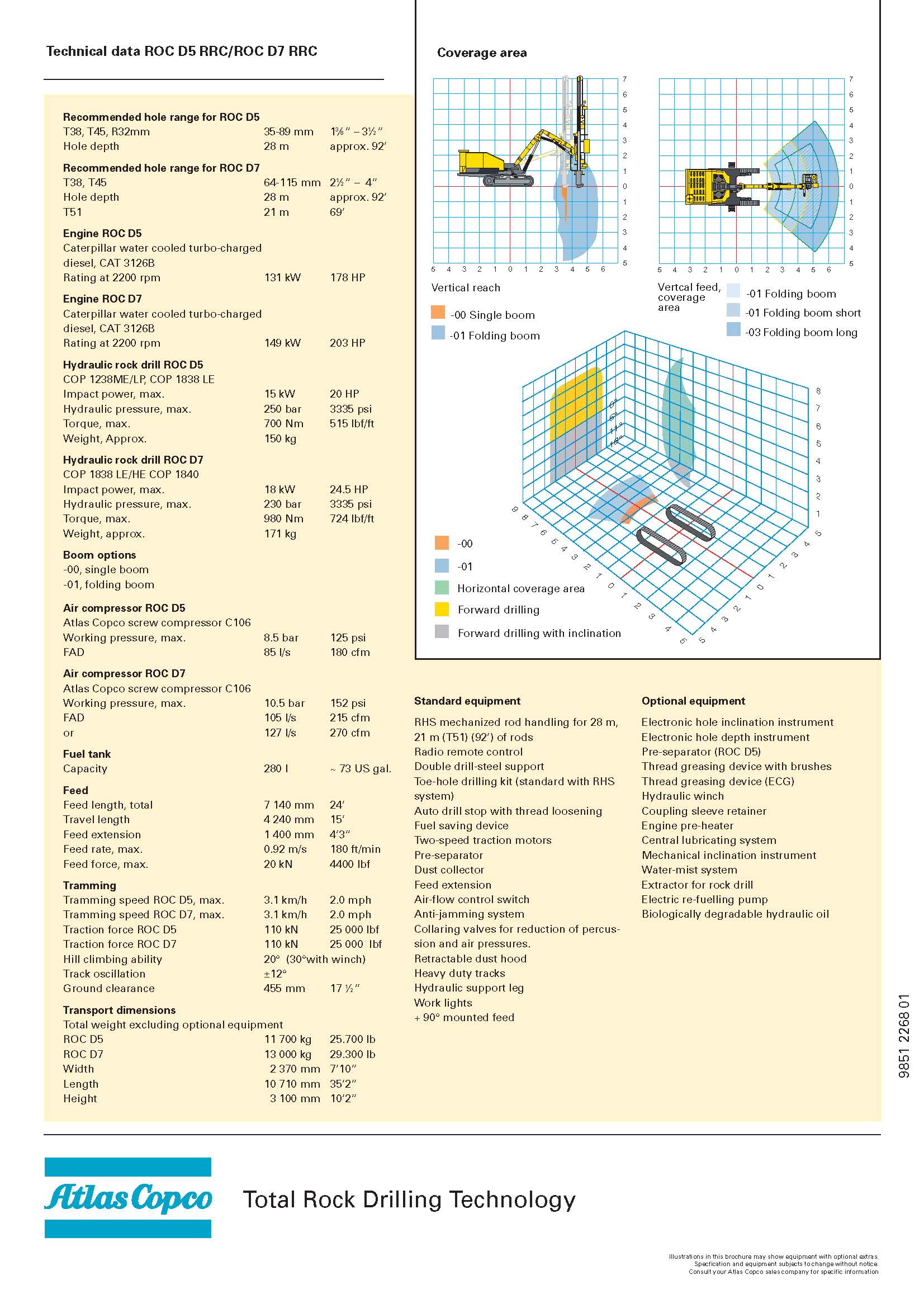

• ROC D7-RRC Rock Drill General Model Specifications:
  • Recommended hole range for ROC D7
    • T38, T45: 64-115mm (2.5”- 4”)
    • Hole Depth: 28m (approx. 92’)
    • T51: 21m (69’)

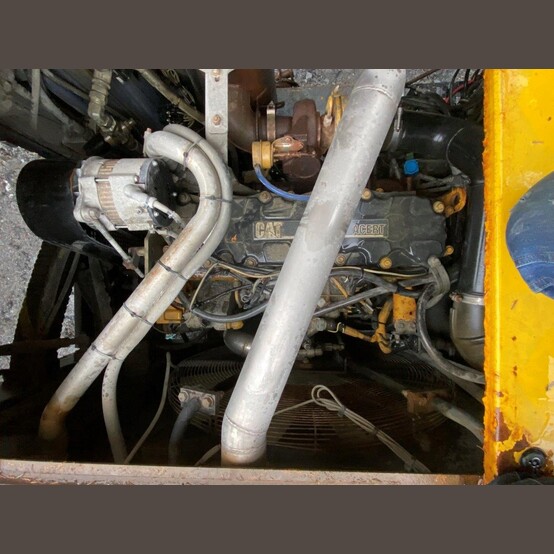

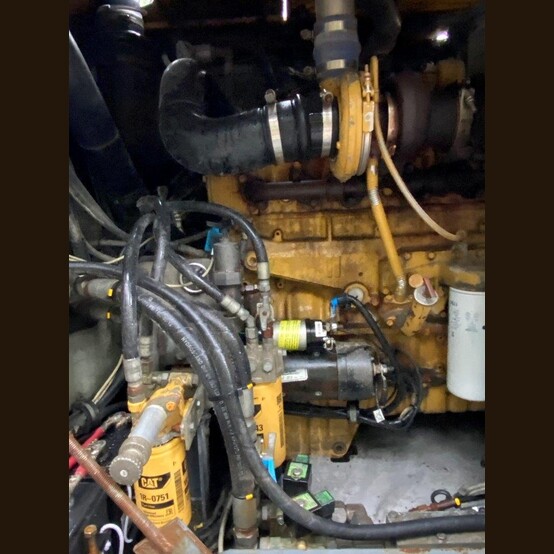

  • Engine ROC D7: Caterpillar Water-Cooled Turbocharged Diesel
    • Model: CAT 3126B
    • Power: 149kW (203HP)
  • Hydraulic Rock Drill ROC D7:
    • Model: Atlas Copco COP 1840 Drifter
    • Impact Power, Max: 18kW (24.5HP)
    • Hydraulic Pressure, Max: 230 bar (3,335 PSI)
    • Torque, Max: 980Nm (724 lbf/ft)
    • Weight: Approx. 171kg
  • Boom: Folding Boom
  • Air Compressor ROC D7:
    • Make/Model: Atlas Copco Screw Compressor C106
    • Working Pressure, Max: 10.5 bar (152 PSI)
    • FAD: 105 l/s (215 CFM)
      • Or 127 l/s (270 CFM)
  • Fuel Tank Capacity: 280 liters (73 US Gal.)
  • Feed:
    • Feed Length, Total: 7,140mm (24’)
    • Travel Length: 4,240mm (15’)
    • Feed Extension: 1,400mm (4’ 3”)
    • Feed Rate, Max: 0.92 m/s (180 ft/min)
    • Feed Force, Max: 20kN (4,400 lbf)
  • Tramming:
    • Tramming Speed: 3.1 km/h (2 mph)
    • Traction Force: 110kN (25,000 lbf)
    • Hill Climbing Ability: 20° (30° with Winch)
    • Track Oscillation: ±12°
    • Ground Clearance: 455mm (17.5”)

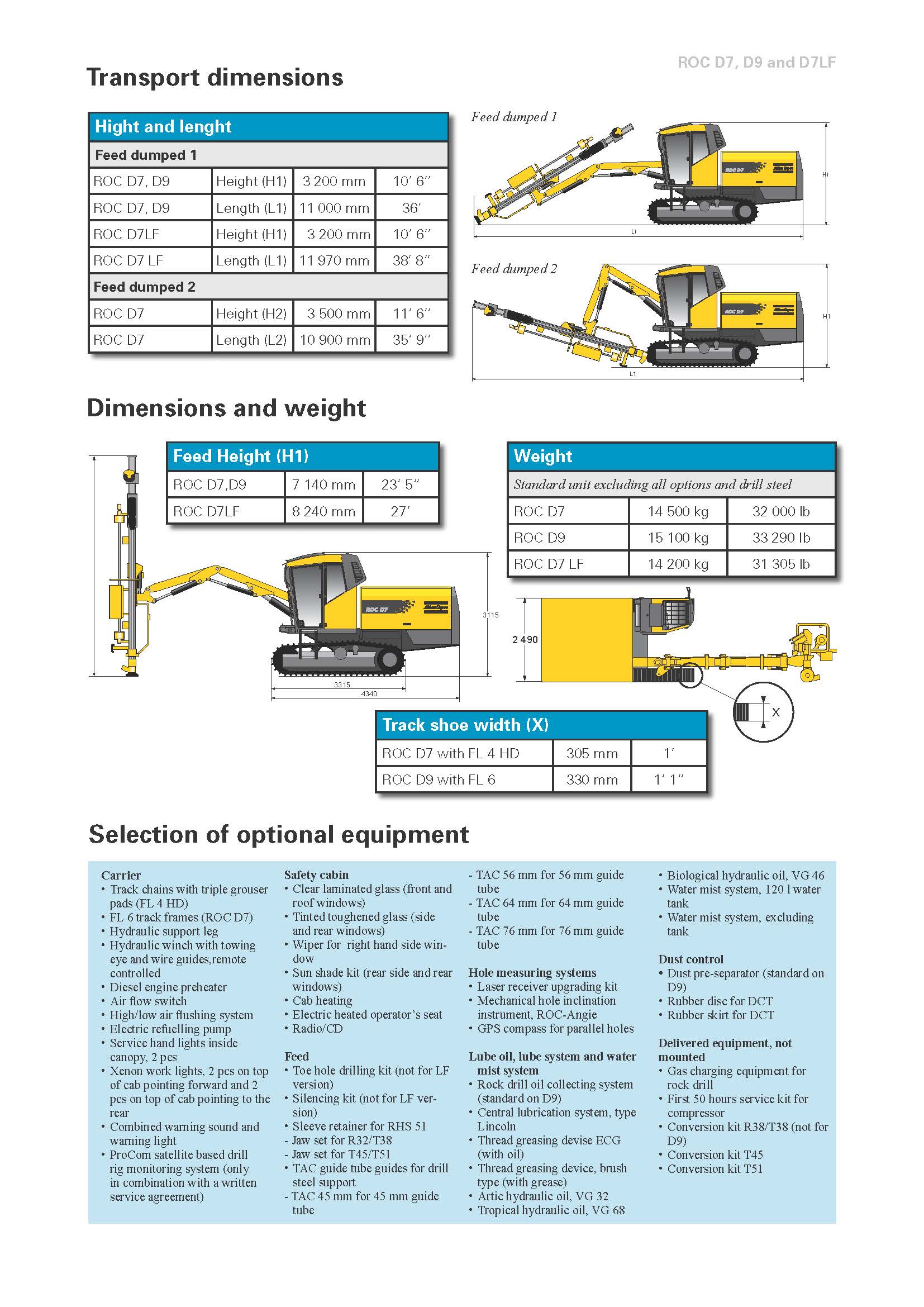

  • Transport Dimensions:
    • Length: 10,710mm (35’ 2”)
    • Width: 2,370mm (7’ 10”)
    • Height: 3,100mm (10’ 2”)
    • Weight: 13,000 kg (29,300 lbs.)


• Location: Northwest USA
