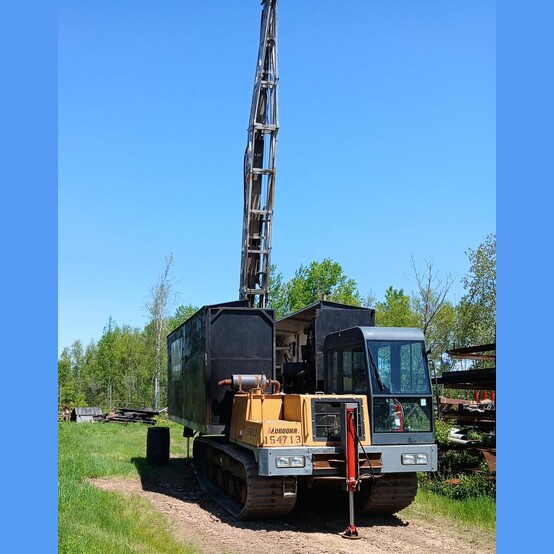

Atlas Copco CS1000 Track-Mounted Diamond Core Drill

Atlas Copco CS1000 Track-Mounted Diamond Core Drill ID: 1593967

Make: Atlas Copco
Model: CS1000 P6L
Type: Diamond Core Drill
Style: Track-Mounted on Morooka MST 1500
Year: 2010
Condition: Used Condition
Hours:
- Drill: 4,000 Hours (Approx.)
- Engine: 2,200 Hours (Approx.)
- Morooka MST 1500: 2,700 Hours on Meter
- Morooka MST 800 VD: 3,400 Hours on Meter
Footclamp: Oddessy Footclamp

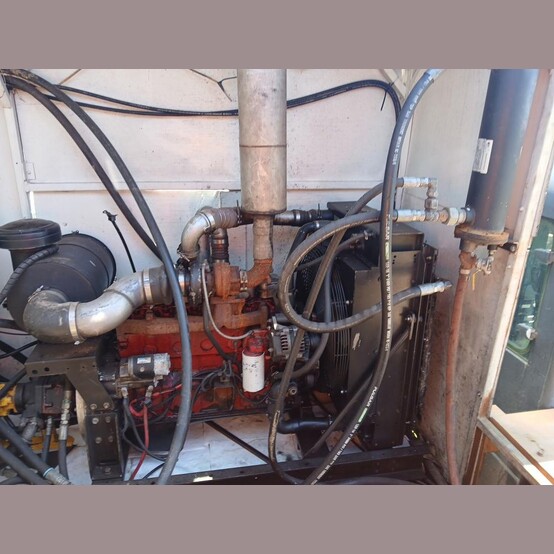

Drive: 176HP Cummins Diesel Engine (2024)
- Cummins 5.9 Liter, 6-Cylinder, Turbo-Charged
Water Pump: 435 Bean Water Pump
- Pressure: 1200 PSI
Oil-Water Cooler
- Has Radiator in Front of Motor to Cool Hydraulics
Fuel Tanks on Board

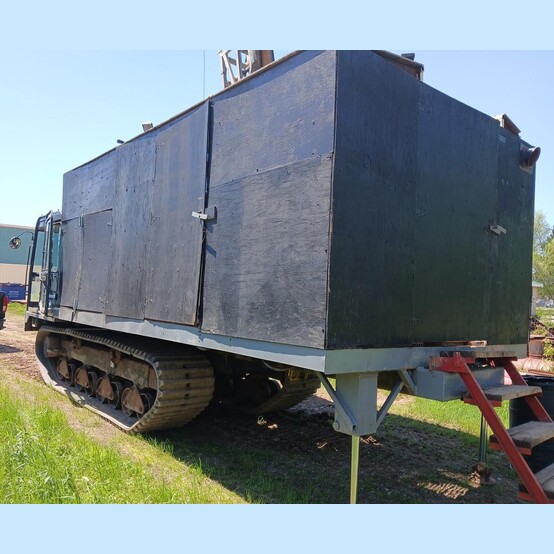

Drill Shack: Completely Shacked in for Winter Operations
- with Steps
Carrier(s):

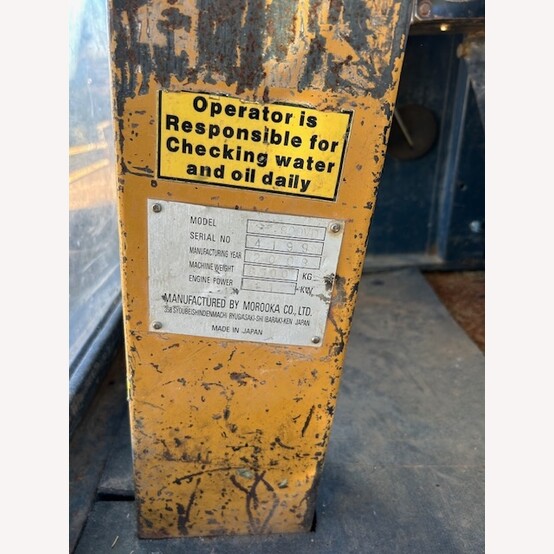

- 2013 Morooka MST 1500 - With High and Low Range

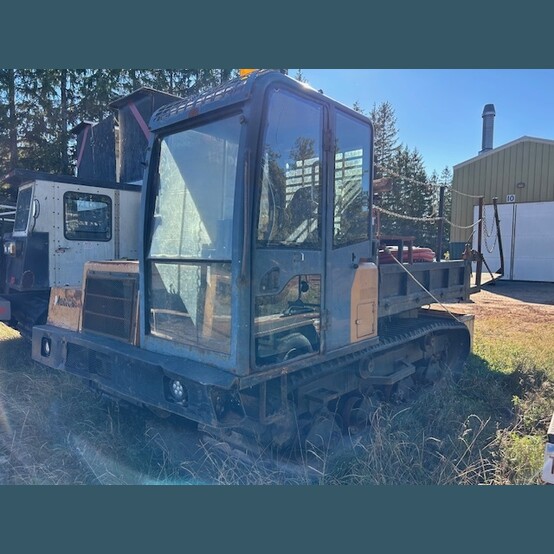

- 2008 Morooka MST 800 VD

General Model Specifications:

Depth Capacity Coring: (Wireline or Conventional) - Depth Rating Based On Vertical & Dry Hole
- B Wireline: 4,500 ft (1,370 m)
- N Wireline: 3,500 ft (1,070 m)
- H Wireline: 2,400 ft (730 m)
- P Wireline: 1,300 ft (400 m)
Main Hoist:
- Single Line Capacity - Bare Drum: 12,000 lbs. (5,443 kg)
- Double Line Capacity - Bare Drum: 24,000 lbs. (10,886 kg)
- Line Speed - Bare Drum: 132 ft/min (40 m/min)
- Cable Size: 110 Feet x 9/16in (33.5m x 143mm)
Wireline:
- Capacity:
  - 6,000ft of 3/16in (1,830m of 4.76mm)
  - 3,200ft of 1/4in (975m of 6.35mm)
- Line Pull:
  - Bare Drum: 2,500 lbs. (1,134 kg)
  - Full Drum: 700 lbs. (318 kg)
- Line Speed:
  - Bare Drum: 390 ft/min (119 m/min)
  - Full Drum: 1,500 ft/min (457 m/min)
Mast and Feed System:

Power Unit:
- MFG: Cummins
- Model: 6BTA 5.9 Liter 6-Cylinder
- Power: 175 HP (131kW)
- RPM: 2,500
- Engine Type: Diesel Turbocharged/After-Cooled
- Cooling: Water
Hydraulic System:
- Primary Pump: 3,500 PSI - 43 GPM (24.1 MPA - 162 LPM)
- Secondary Pump: 3,000 PSI - 15 GPM (20.6 MPA - 56 LPM)
- Auxiliary Pump: 2,500 PSI · 8 GPM (17.2 MPA - 30 LPM)
- Hydraulic Oil Cooling: Air

Drill Head And Spindle Speeds:

Spindle Speeds:
