Atlas Copco CS1000 Diamond Core Drill ID: 120292


  • 2006 Atlas Copco CS 1000 Diamond Core Skid Drill.
    • Complete with:
      • Cummins diesel engines.
      • Mud mixers and mud tanks.
      • Fuel tanks.
    • CS 1000 Performance Specifications:
      • Depth Capacity Coring (Wireline or Conventional):
        • B 3,500 ft (1070 m).
        • N 2,000 ft (610 m).
        • H 1,500 ft (460 m).
        • P 1,000 ft (305 m).

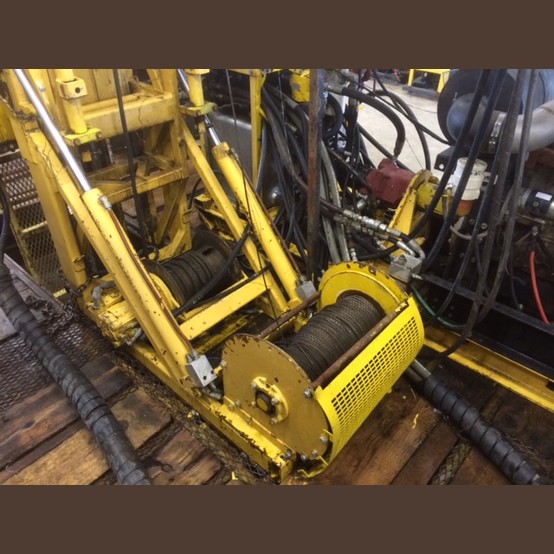

    • Hoisting Capacity Main Capacity:
      • Single Line Bare Drum: 9,000 lb (4,082 kg).
      • Single Line Full Drum: 8,200 lb (3,720 kg).
      • Double Line Bare Drum: 18,000 lb (8,164 kg).
      • Double Line Full Drum: 16,400 lb (7,440 kg).
      • Line Speed Bare Drum: 80 ft/min (24 m/min).
      • Line Speed Full Drum: 125 ft/min (38 m/min).
      • Cable Size: 110 ft (33.6 m) x 9/16” (14.29 mm).
    • Wireline Capacity:
      • Single Line: Bare Drum: 2,190 lb (995kg).
      • Full Drum: 580 lb (264kg).
      • Line Speeds:
        • Bare Drum: 390 ft/min (119 m/min).
        • Full Drum: 1,460 ft/min (445 m/min).
      • Cable Size: 3,200ft (976 m) or 3/16” (4.8 mm).
    • Mast and Feed System:
      • Feed Travel: 6 ft (1,830 mm).
      • Feed Speeds: fast and slow with variable control.
      • Thrust: 13,900 lb (6,360 kg).
      • Pull: 21,200 lb (9,636 kg).
      • Drilling Angle: 45 to 90 degrees.
      • Mast Length: 27.5 ft (8.38 m).
      • Pull: 20 ft (6.08 m).

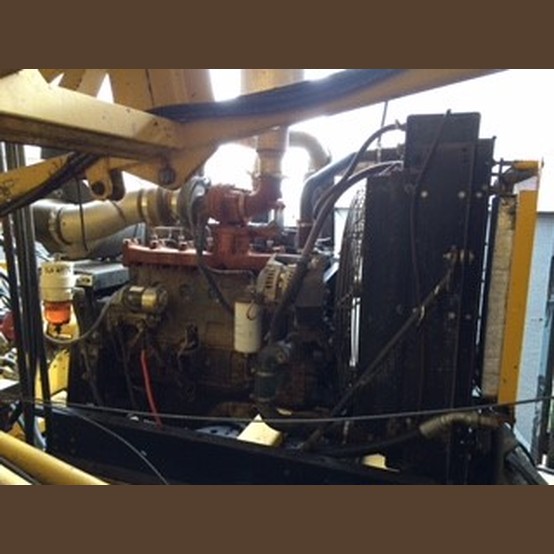

    • Power Unit:
      • Manufacturer: Cummins.
      • Model: 4BTA 3.9L - 4 Cylinder, 6BTA 5.9L - 6 Cylinder.
      • Power: 116 hp (86.5kw).
      • RPM: 2,500.
      • Engine Type: Diesel Turbocharged/After Cooled.
      • Cooling: Water.
    • Hydraulic System:
      • Primary Pump: 3,500psi – 45.6gpm (24.1mpa – 173.0 lpm).
      • Secondary Pump: 1,500psi – 12.5gpm (10.3mpa – 47.3 lpm).
      • Auxiliary Pump: 2,500psi – 13.4gpm (17.2mpa – 50.7 lpm).
    • Drill Head and Spindle Speeds:
      • Power: Hydraulic Motor – variable speed/reversible final.
      • Drive: HV Chain Drive in Oil Bath – 2.5 ratio.
      • Spindle: H-Head – 3 5/8” (92 mm).
      • P-Head – 4 5/8” (117 mm).
    • Spindle Speeds:
      • Gear Ratio Speed Torque, ft lb (nm).
      • 1st - 6.63:1 130-196 3,232-2,218 (4,382-3,007).
      • 2nd - 3.17:1 270-410 1,545-1,060 (2,095-1,437).
      • 3rd - 1.72:1 500-756 839-575 (1,138-780).
      • 4th - 1.00:1 857-1,300 488-335 (662-454).
      • Range Selection: Manual control from Operator’s Station.
      • Hinged Head: Swing away.
    • Chuck Assembly:
      • Type: Integral Hydraulic.
      • Maximum Diameter: H-Head 3 5/8” (92 mm).
      • P-Head: 4 5/8” (117 mm).
      • Holding Capacity: 25,000 lb (11,364 kg).
    • Drill Base Supports:
      • Quantity: 4.
      • Pad Diameter: 12” (305 mm).
      • Travel Length: 12” (305 mm).
    • Towing Package & Miscellaneous:
      • Fuel Tank Wet: 125 lb (57 kg).
      • Battery Box & Battery: 134 lb (61 kg).
      • Drill Base and Supports (4): 100 lb (45 kg).
      • Operator’s Platform: 22 lb (10 kg).
      • Mud Tank Outrigger (4): 104 lb (47 kg).
      • Wheels & Stub Shaft (4): 200 lb (91 kg).
      • Hitch: 55 lb (25 kg).
      • Heaviest Single Lift: 1125 lb (511 kg) (Engine Component Wet).
    • Dimensions: (L x W x H)
      • Drill Base: 102” (2,591 mm) x 64” (1,626 mm) x 58” (1,473 mm).
      • Lower Mast: 127” (3,226 mm) x 26” (660 mm) x 33” (838 mm).
      • Middle Masts: 98” (2,489 mm) x 23” (584 mm) x 22” (559 mm).
      • Upper Mast: 107” (2,718 mm) x 21” (533 mm) x 29” (737 mm).
      • Assembled Mast: 27.5 ft (8.38 m).
      • Drill Head:
        • Horizontal view 31” (787 mm) x 44” (1,118 mm).
        • Vertical view 21” (533 mm) x 44” (1,118 mm).
      • Engine Component: 43.5” (1,105 mm) x 49” (1,245 mm) x 29” (737 mm).
      • Hydraulic Component: 37.5” (952 mm) x 49.5” (1,257 mm) x 29” (737mm).
      • Draw Works Component: 27.8” (705 mm) x 56.5” (1,435 mm) x 26” (660 mm).
    • Mounting Options:
      • Trailer.
      • Skid.
      • All-Terrain Vehicle.
      • Crawler.
    • Additional Options:
      • Pumps.
      • Mud Mixer.
      • Cathead.
      • Engine - Deutz Diesel 4 Cylinder.
        • Turbocharged/Air Cooled.
    • Standard Equipment:
      • Derrick in Three Sections.
      • Towing Package.

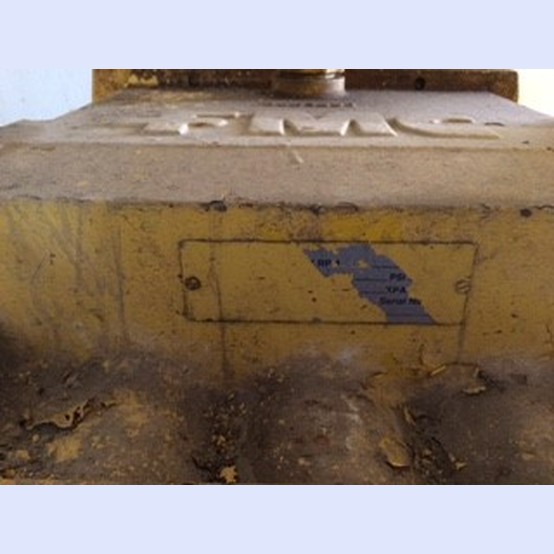

      • Mud Pump – FMC LO928D 28 GPM (106 LPM) 700psi (4.8 mpa).
      • Integral Hydraulic Chuck 3 5/8” (92 mm) Opening.



Please contact us for more information.
