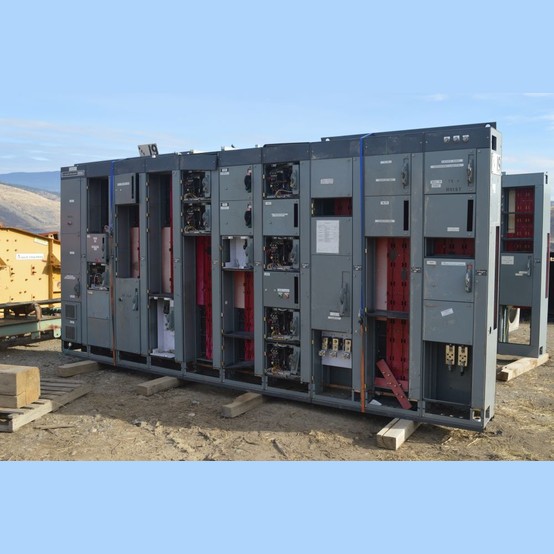

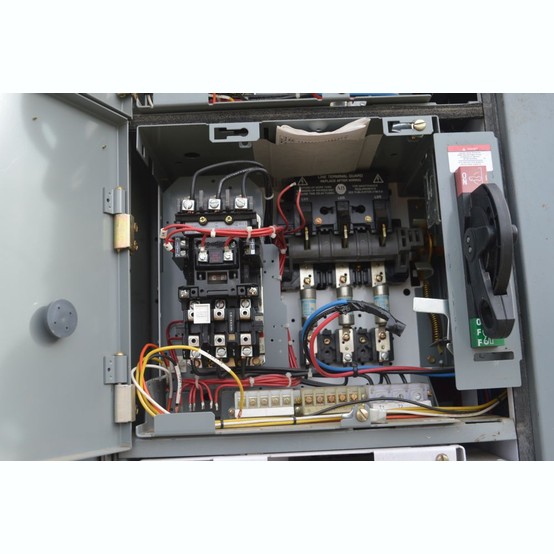

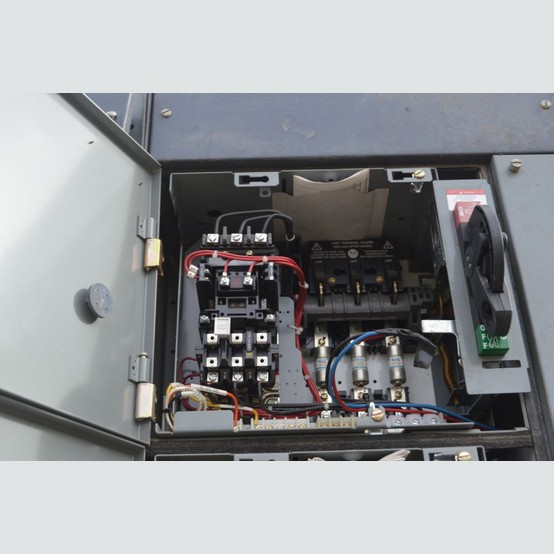

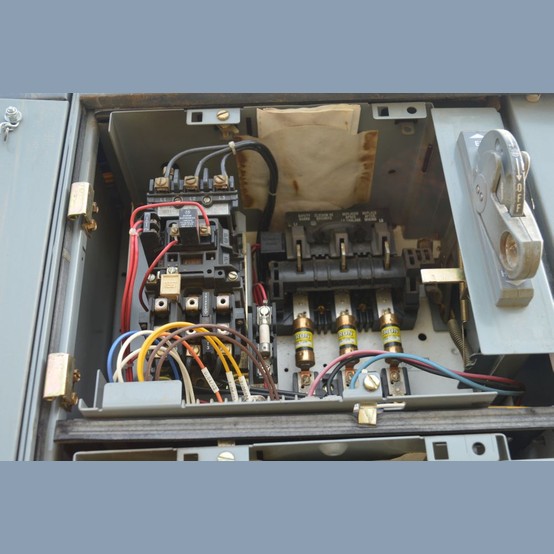

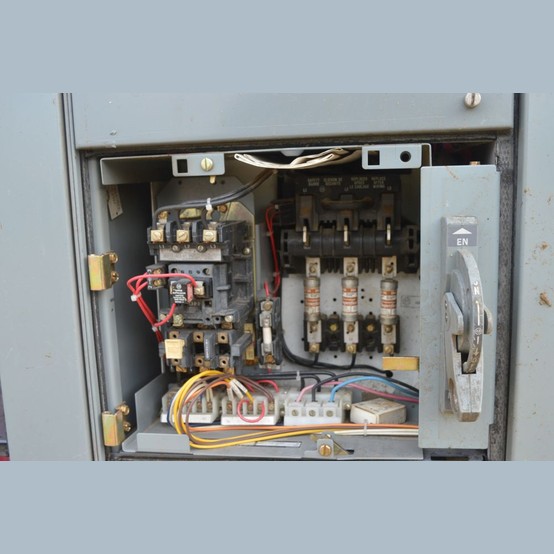

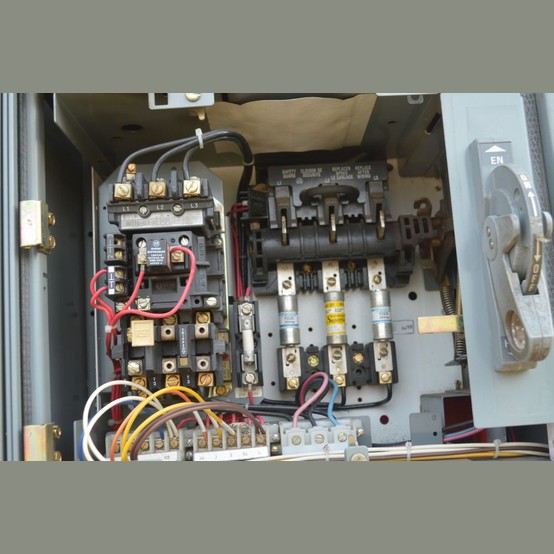

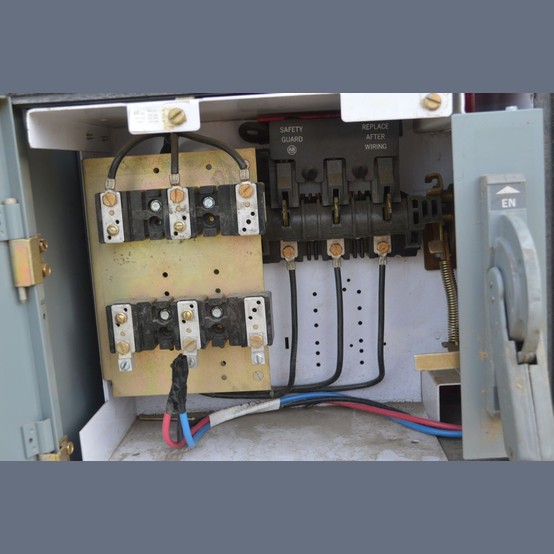

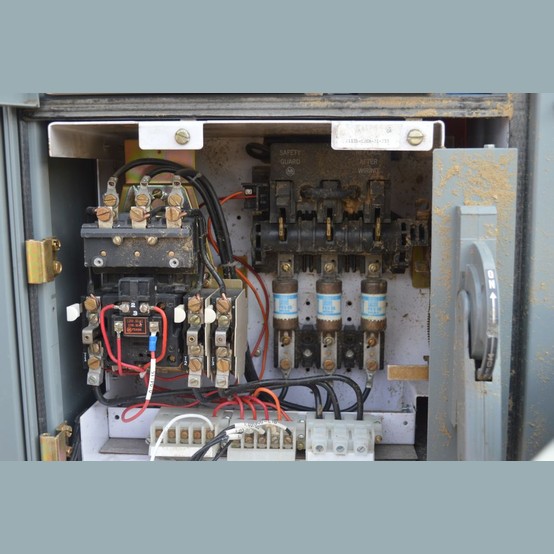

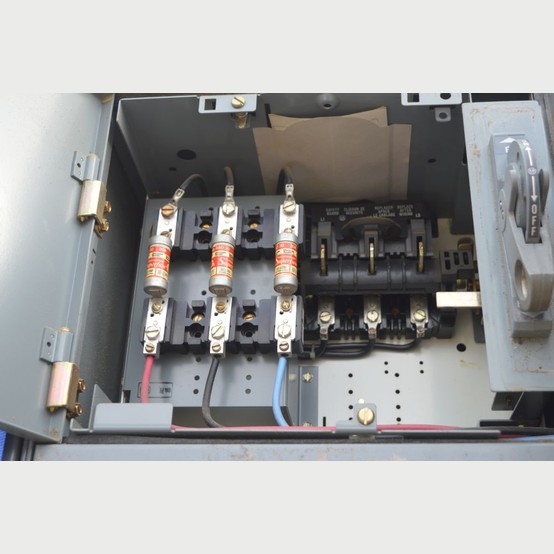

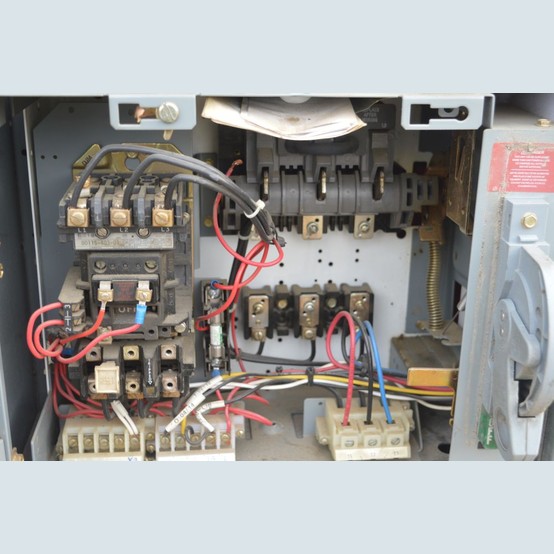

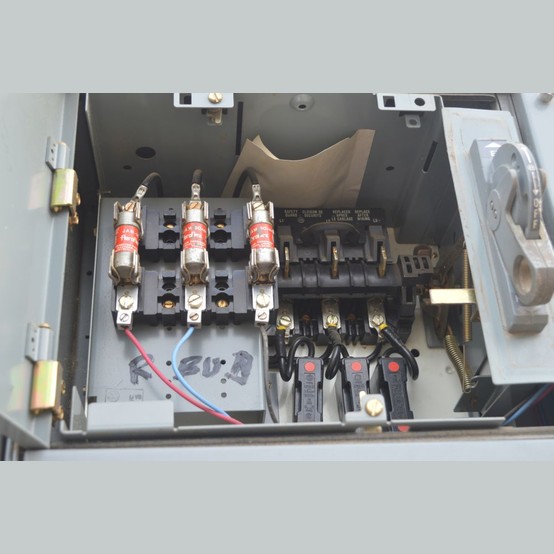

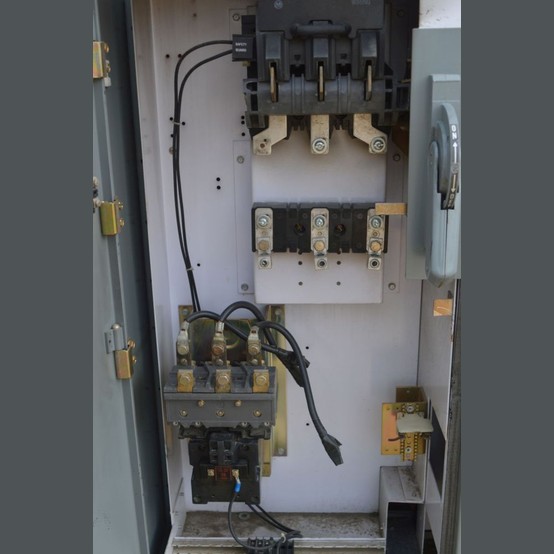

Allen Bradley 10 Bank Center Line 2100 Series MCC Panel ID: 216213


  • Bank of 10.

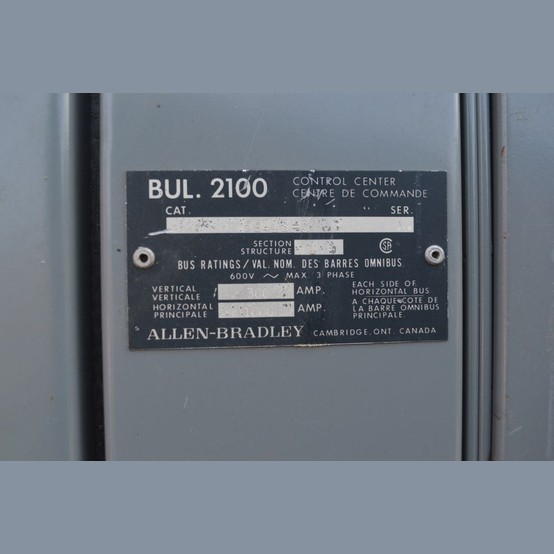

  • Vertical amps: 300.
  • Horizontal amps: 1,000.
  • Bank 1:

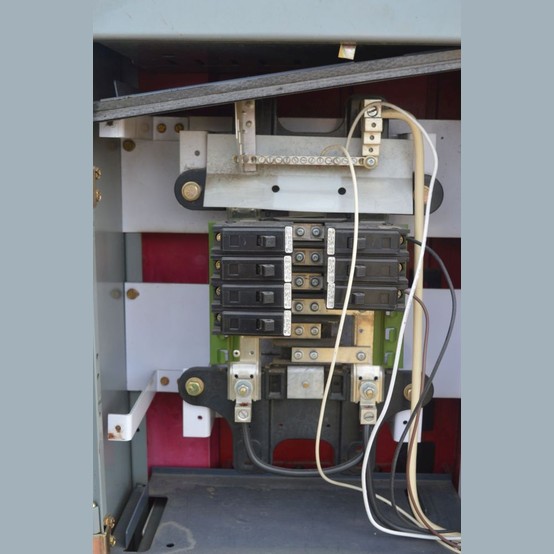

    • 12 circuit breaker panel:
      • 2 – 30 amp single pole breaker.
      • 1 – 20 amp single pole breaker.
      • 1 – 20 amp single pole breaker.
      • 4 – 15 amp single pole breaker.

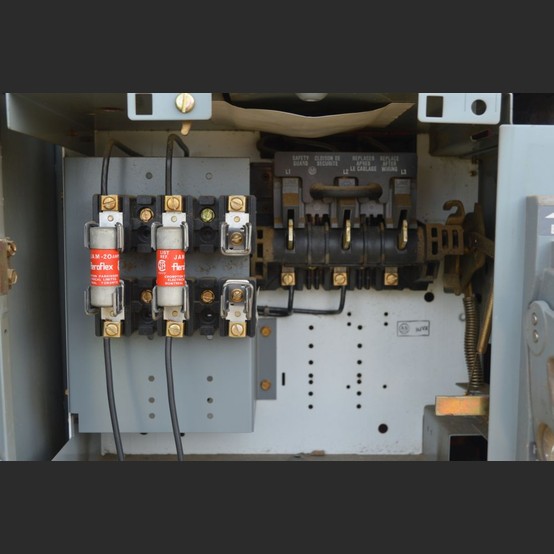

    • 30 amp fusible disconnect.
      • 2 – 20 amp fuses.

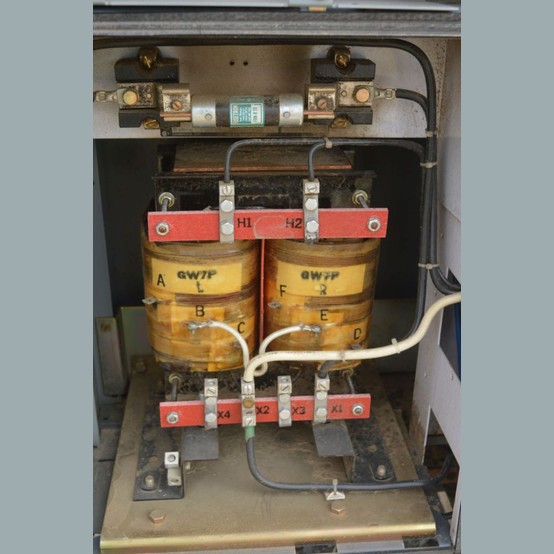

    • Includes transformer.
  • Bank 2:
    • 60 amp fusible disconnect.
    • Size 2 starter.
      • 60 amp fusible disconnect.
      • 3 – 50 amp fuses.
      • Overload: W64.
  • Bank 3:
    • Size 3 starter.
    • 100 amp fusible disconnect.
  • Bank 4:
    • 100 amp fusible disconnect.
  • Bank 5:
    • Size 1 starter.
    • 30 amp disconnect.
    • 6 – 20 amp fuses.
  • Bank 6:
    • Size 1 starter.
      • 30 amp disconnect.
      • 6 – 30 amp fuses.
    • 30 amp fusible disconnect.
  • Bank 7:
    • Size 1 starter.
      • Qty: 4.
    • 30 amp fusible disconnect.
  • Bank 8:

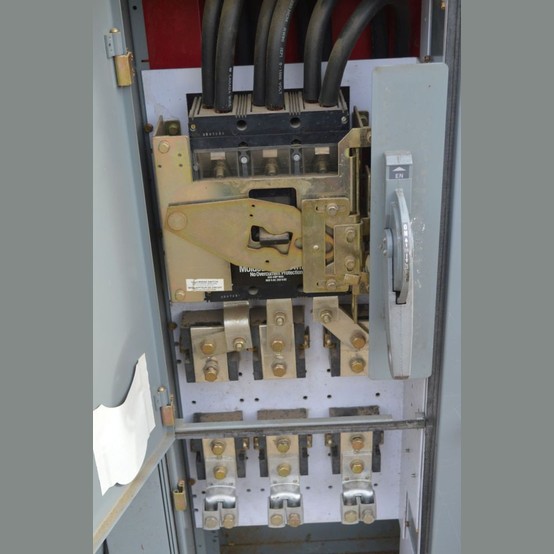

    • Westinghouse 600 amp interrupter breaker.
  • Bank 9:
    • 30 amp fusible disconnect.
  • Bank 10:
    • 30 amp fusible disconnect.
  • Location: British Columbia, Canada.
