Alfa Laval MIB 303S 13/33 Separator

• Make: Alfa Laval
• Model: MIB 303S 13-33 Separator
• Year: 2018
• Condition: New
• Application: Removal of Water and Solids from Gas Oil, Marine Diesel Oil and Lube Oil
• Voltage: 230 Volts
• Current: 2.4 Amps
• Frequency: 50/60Hz
• Comes With:
  • Tools
  • Pump
  • Manual Documentation


• Technical Design:

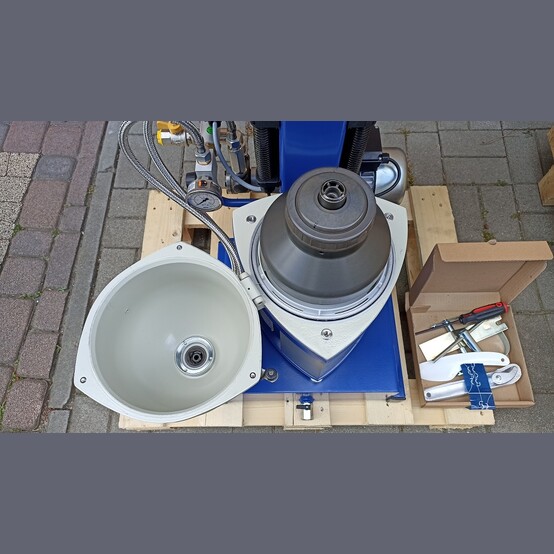

  • Solid Bowl made of Aluminum and Plastics
  • AC/DC Motor Rotor Mounted on the Bowl Spindle
  • Rigidly Mounted Top Bearing, Exterior Rubber Buffers
  • Integrated Frequency Converter
  • Purifier/Clarifier Function


• General Model Specifications:
  • Hydraulic Capacity: 1 m³/h
  • Maximum Density:
    • Sediment: 1,600 kg/m³
    • Feed: 1,000 kg/m³
  • Max Recommended Flow: 1,000 Liters/Hour
  • Feed Temperature: +15°C to +70°C
  • Ambient Temperature: 0°C to +55°C
  • Bowl Speed, Max: 7500 RPM
  • Speed Motor Shaft, Max: 7500 RPM
  • Motor Power: 0.45kW
  • Gear Ratio: 1:1 Direct Drive
  • Supply Voltage: 230 Volts
  • Current: 2.4 Amps
  • Frequency: 50/60Hz
  • Direction of Rotation: Counter-Clockwise
  • Runup Time: 30 Seconds
  • Stopping Time: 100-180 Seconds
  • Estimated Term of Life for the Separator: 40,000 Hours (Except for the Disc Stack 8,000 Hours)


• Location: Europe
