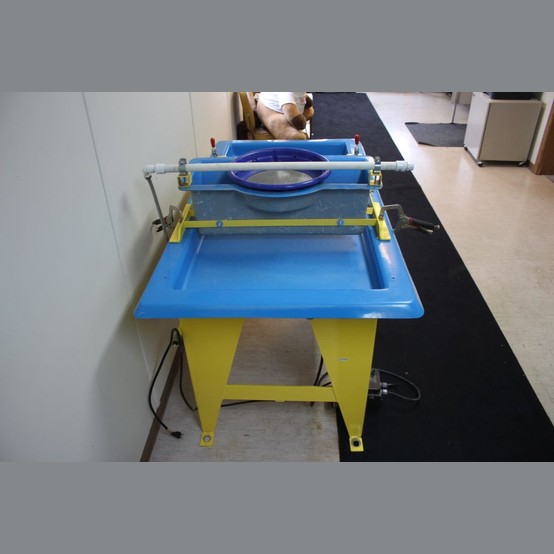

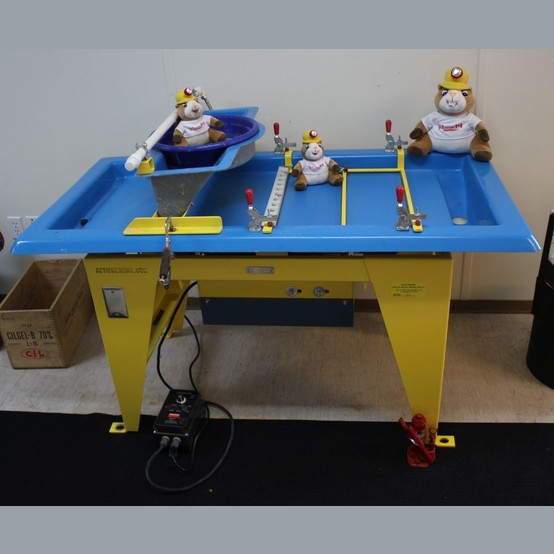

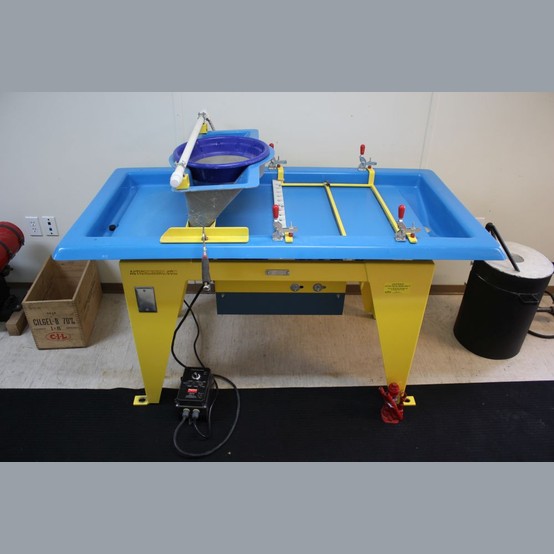

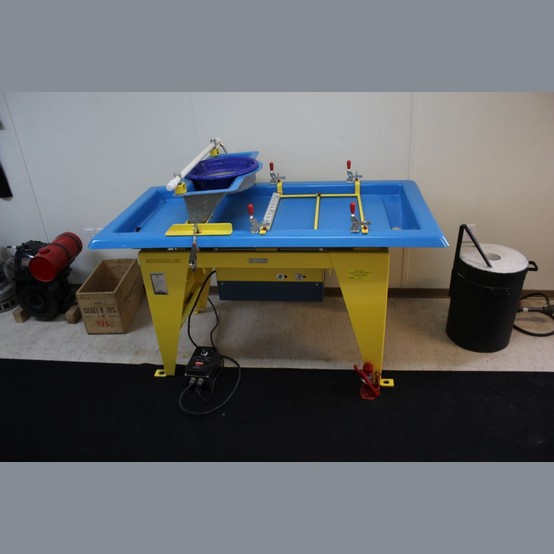

• Model: M7 Micron Mill Wave Table.
  • 3 Available
  • Lightly used and complete.
  • Capacity: 1,500 - 2,500 lbs. of head ore material per hour.
    • Recovery of gold particles: Between 10 mesh and microscopic.Mode
      • 80-99% of gold recovery from classified black sands.
      • 92-99% of gold reccovery.
  • Water requirements: 5-12 GPM.
    • 2 adjustable water spray bars.
  • Table top and hopper constructed of fiberglass.
    • Vacuum-sealed and gel-coated in blue finish.
    • Adjustable table top.
  • 1/2 HP electric motor drive.
    • 110V AC, 60 Hz.
  • Steel frame with yellow powder coated epoxy paint.

 Shipping information:

    • Dimensions (L x W x H):
      • 61 in. x 32 in. x 39 in.
      • 1.55 m x 0.81 m x 0.99 m.
    • Weight:
      • 409 lbs. / 186 kg.
  •  Please contact us for more information.
