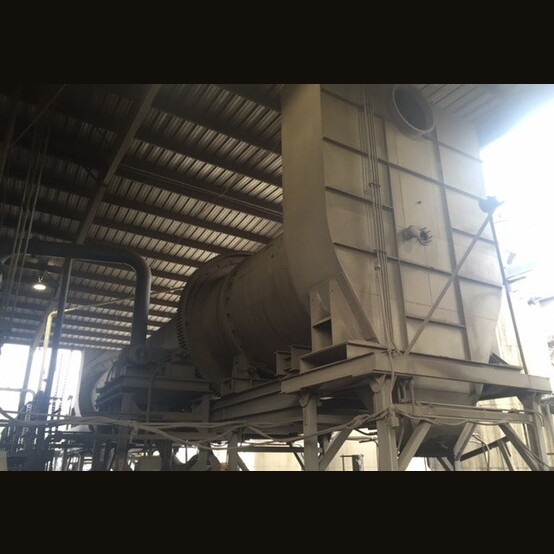

9ft Dia. x 60ft Long Rotary Drum Dryer

• Make: Vulcan
• Year: Refurbished 2010
• Type: Rotary Drum
• Style: Horizontal
• Condition: Used Condition
  • Prior Service: Dryer, Ag Products, Hydrocarbons
  • Dryer Completely Refurbished 2010 With New Controls & Instrumentation
    • Limited Service, Project Cancelled, Mothballed. Burners Removed and In Storage. System Installed Under Cover
• Capacity: 20-300 TPH - Dependent on Process and Product
• Diameter: 9ft Approx.
• Length: 60ft Approx.
• Counter-Current, Fired at Discharge End - Can be Reversed by Adding Feed Section Between Combustion Chamber and Retort
• Shell Internals: Internal Lifters Length of Shell
• Construction: Carbon Steel
• Combustion - Burner: Gas Fired, 40MM Btu/Hr. Total (4 Burners @ 10MM BTU/HR Ea.)
• Combustion - Blower: Equipped
• Combustion - Chamber: Equipped
• Temperature: 650° F (Approx.)
• Driven By: 50HP Electric Motor
• Drive Via: Gear Reducer, Westinghouse, Via Bull Gear & Pinion
• Rotating Speed: Variable RPM
• Running Gear: Trunnions & Rollers - 30in Dia. x 13in Wide. 13ft 3in OD Bull Gear


• Shipping Dimensions:
  • Length: 70ft
  • Width: 13ft
  • Height: 13ft
  • Weight: 70,000 Lbs. (Approx.)


• Location: Southern USA
